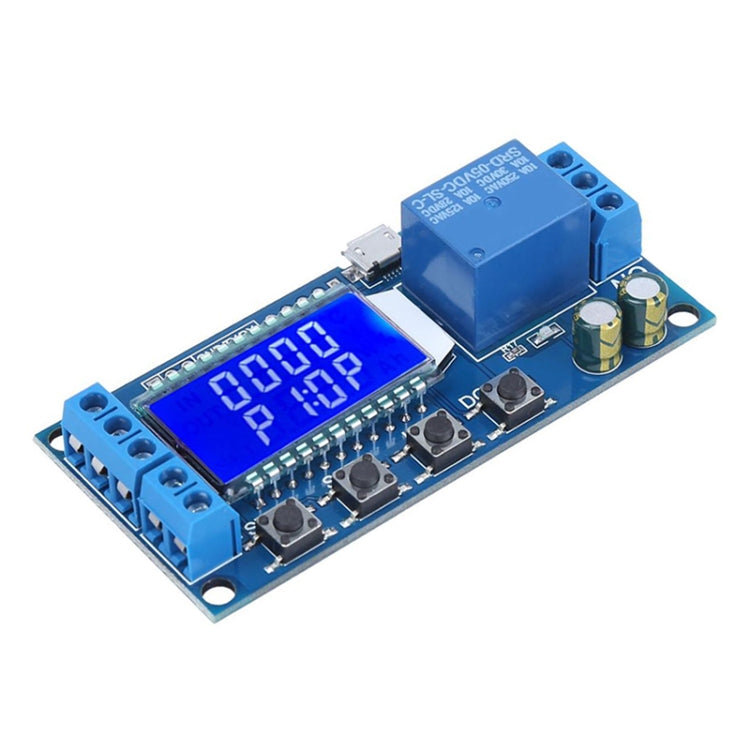

Features 1. With LCD display, the current mode and parameters are clear at a glance, very clear, simple and practical. 2. Support high and low level trigger, switch control, suitable for most occasions. 3. Wide voltage power supply (6~30V) supports micro USB 5.0V power supply, which is very convenient to use. 4. Support UART data upload and parameter setting. 5. There is a key emergency stop function (STOP key), with reverse connection protection, reverse connection will not burn. 6. Added sleep mode. After enabling, if there is no operation within 5 minutes, the LCD backlight will be automatically turned off; any key will wake up. 7. Different OP, CL, LOP parameters can be set, these parameters are independent of each other and saved separately. 8. All setting parameters are automatically saved after power off.

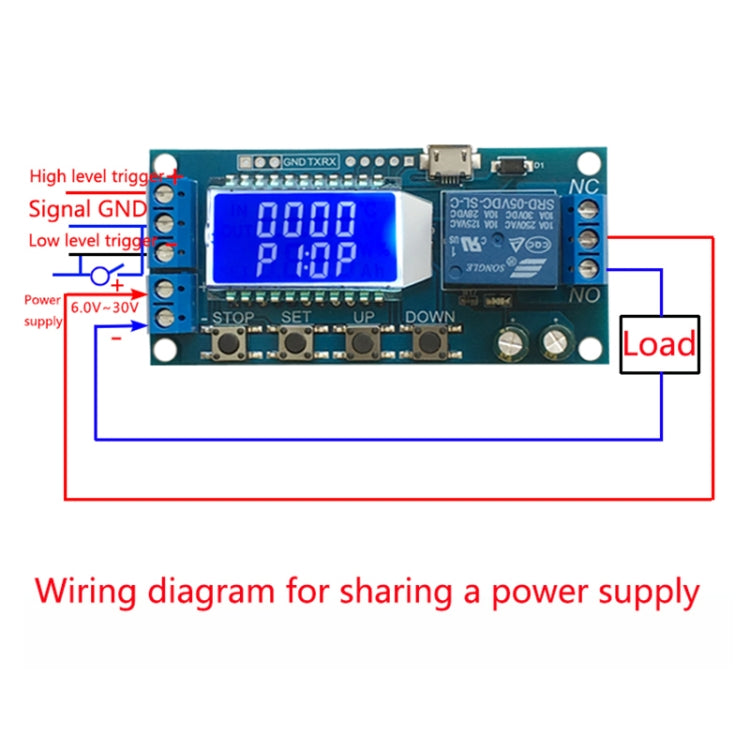

Specification 1. Working voltage: 6-30V, support micro USB 5.0V power supply 2. Trigger signal source: high level trigger (3.0V~24V), low level trigger (0.0V~0.2V), switch control (passive switch). 3. Output capability: can control equipment within DC 30v 5A or AC 220v 5A 4. Quiescent current: 15mA Working current: 50mA 5. Working temperature: -40a??85 degrees Celsius 6. With optocoupler isolation, enhance anti-interference ability, industrial-grade circuit board, set parameters will be remembered forever after power off 7. Size: 8.0x3.8x1.9cm 8. Weight: about 36g
