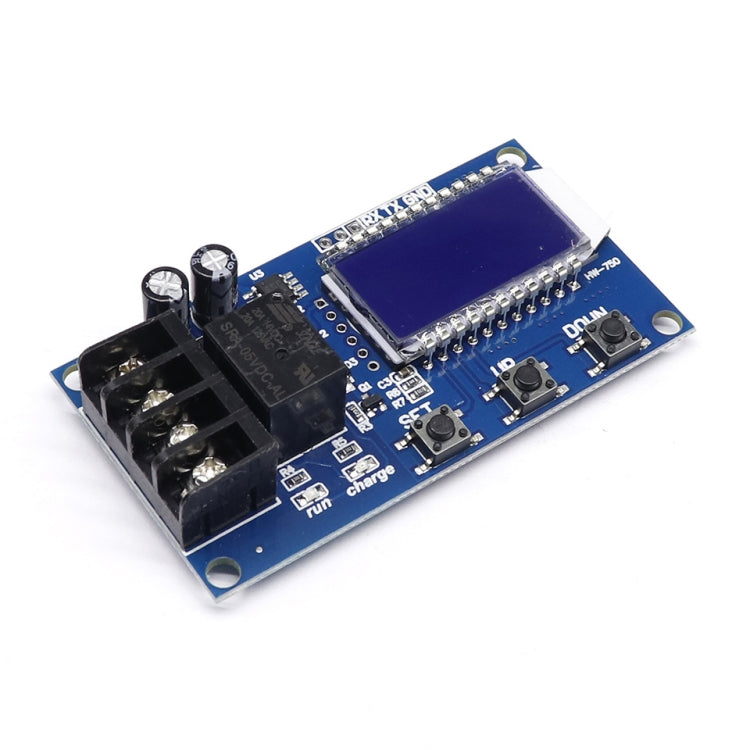

XY-L10A 6-60V CNC Full Power Off Over Charge Protection Switch(PCB)

1. Both 6-60V batteries and lithium batteries can be used
2. LCD display, battery voltage, charging percentage and charging time at a glance
3. Powerful functions, can automatically charge control, can control the charging time, can set and upload the corresponding parameters through the serial port
4. Control voltage: DC6-60V
5. Control current: within 10A
6. Output type: direct output of various accumulators, lithium batteries
7. Appearance size: about 7.9x4.2 cm
8. Weight: about 30 grams

Function Description:
1. Automatic charging control function: by setting the upper limit voltage UP and lower limit voltage dn; when the battery voltage is less than or equal to the lower limit voltage dn, the relay is turned on, and the charger starts to charge the battery; when the battery voltage is greater than or equal to the upper limit voltage UP, the relay is turned off, Complete an automatic charge
2. Charging time control function
3. Serial data upload and parameter setting function: The system supports UART data upload and parameter setting function (TTL level)

parameter settings:
1. Press and hold the SET button to enter the parameter setting interface, the LCD will display SET
2. After entering the parameter setting interface, short press the SET key to switch the set parameters
3. After selecting the parameter, you can set it through the UP/DOWN key, support short press, long press (rapid increase or decrease)
4. To set other parameters, repeat steps 2/3
5. After all parameter settings are completed, long press the SET button to exit and save

Button function description:
In the running interface (main interface):
1. Short press the SET button to display the currently set parameters
2. Short press the UP button to switch to display the charging percentage and charging time
3. Short press the DOWN button to select on/off the relay enable. If the relay enable is turned off, OFF will be displayed as a reminder and the relay is disconnected.
4. Press and hold the UP button to set the status of the LCD backlight (L-P), the OFF backlight is always on, and the ON backlight will automatically turn off after 5-10 minutes
5. Long press the SET button to enter the parameter setting

Additional features:
1. Charging time recording function: When the charging time control is not turned on, the product will record a complete time. When entering the time display interface, the charging time will flash and display, and then exit the time display interface or clear it when the next charging is turned on (the relay is turned on).

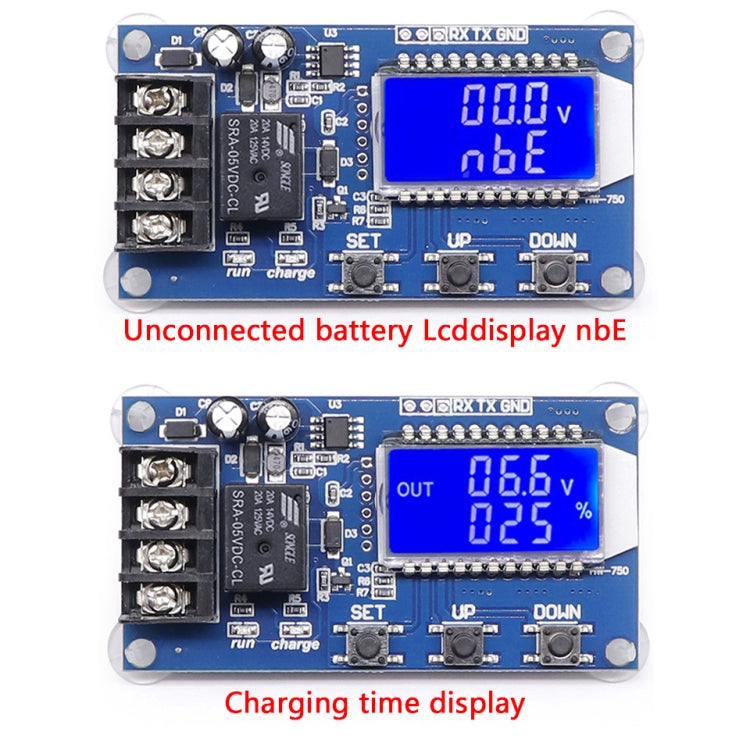

2. Parameter automatic detection: after setting the parameters and exiting, if the lower voltage limit dn is greater than or equal to the upper limit voltage up, the system will flash ERR as a reminder
3. Battery connection detection: this product is attached to the battery, if the battery is not connected, the system will display nbE in the lower line as a reminder
