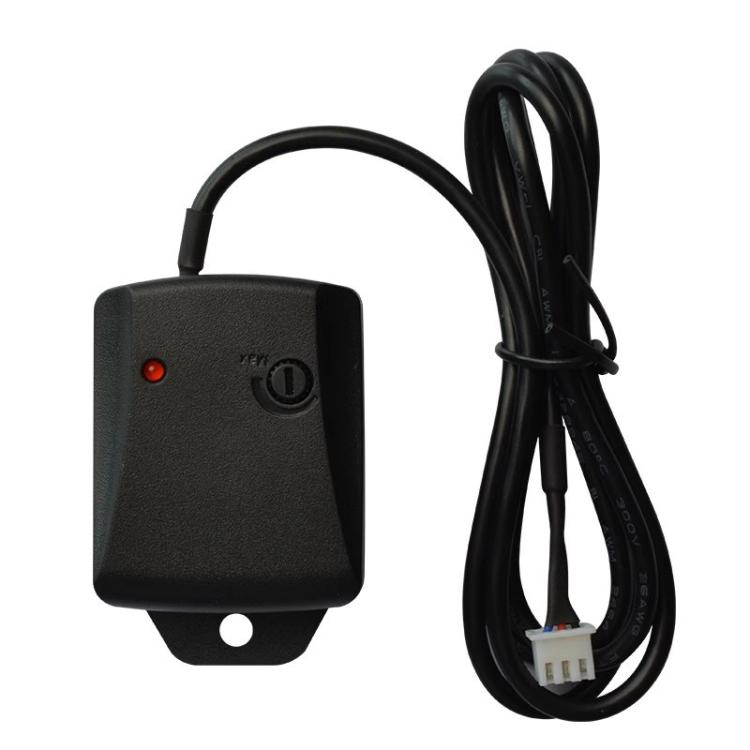

XH2.54/XF2510 3P 12V Car Anti-theft Vibration Sensor(GY166)
XH2.54/XF2510 3P 12V Car Anti-theft Vibration Sensor(GY166)
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
1. Output current: 100mA (MAX)
2. Sensitivity: -105dB
3. Quiescent current: 6mA
4. Rated operating Voltage: 12V
5. Operating voltage: 5V (MIN)
6. Cable type: 1m shielded cable

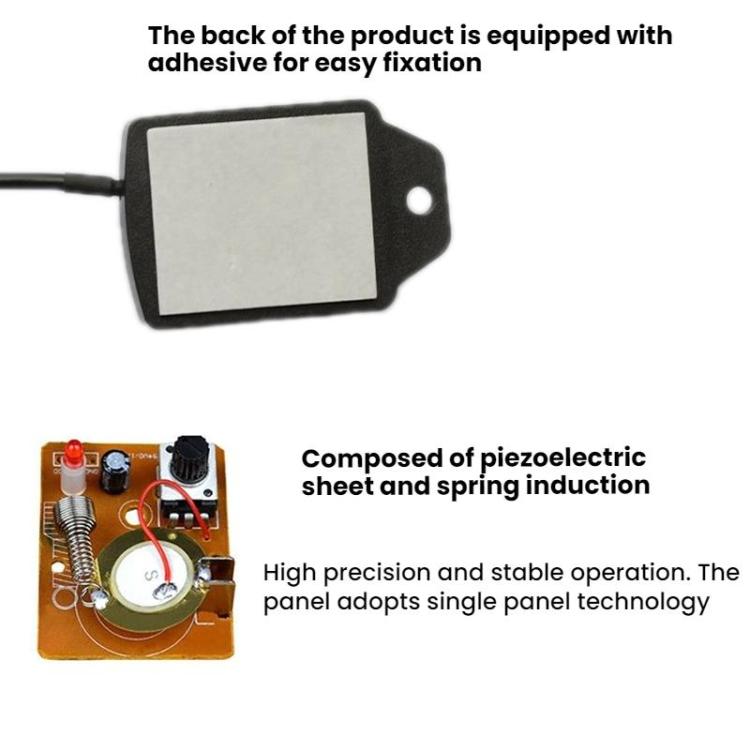

7. Adhesive backing for easy mounting
8. Piezoelectric and spring sensing components for high accuracy and stable operation

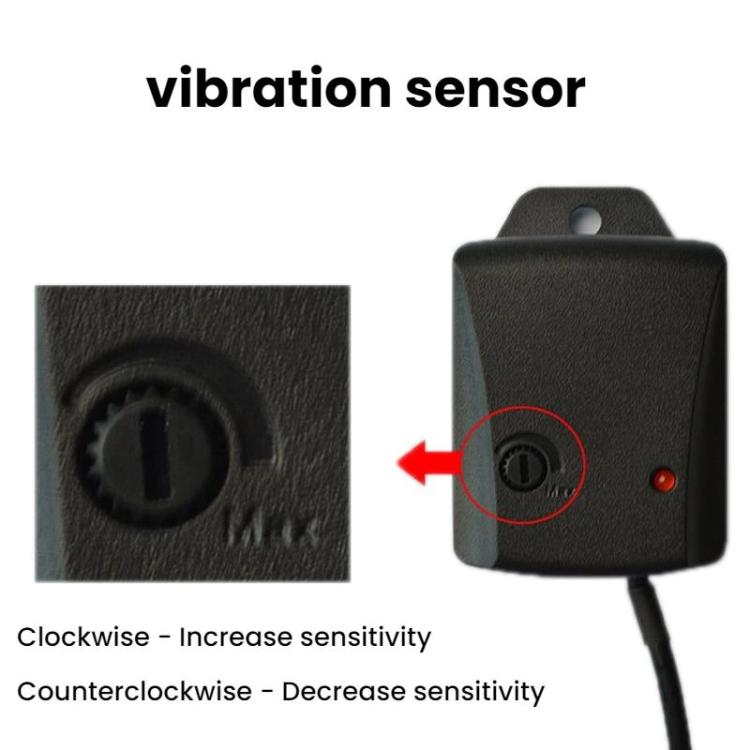

9. Clockwise rotation increases sensitivity, counterclockwise rotation decreases sensitivity
10. Vibration sensing system composed of a buzzer and contact spring, offering high sensitivity, speed, and performance
11. Internally, a piezoelectric ceramic component and spring weight structure detects vibration signals, which are amplified and output via an op amp such as the LM358
Pin description:
1. The blue wire is the signal output via the 358 op amp. It is high when there is no vibration (IO port pull-up resistor) and low when there is vibration.
2. Red wire: +12V power supply.
3. Black wire: ground.
Pin definition:
1. Blue wire: signal output. Each vibration detected generates a pull-down signal for one cycle, allowing for interfacing with a microcontroller.
2. Black wire: ground.
3. Red wire: positive power supply (5-15V DC).
