This unit consist of Optics, Temperature Sensor Signal amplifier, Processing circuit and LCD Display.The Optics collected the infrared energy emitted by object and focus onto the Sensor. Then the sensor translates the energy into an electricity signal. This signal will be turned out to be digital shown on the LCD after the signal amplifier and processing circuit.
Infrared thermometer possesses the following features: 1. Positioning laser 2. K-type thermocouple 3. Data retention 4. Low battery indicator 5. Environmental humidity measurement 6. Dew point temperature measurement 7. Surface temperature measurement
Specifications LCD: Colorful LCD Temperature measurement range: -50 to 1050 degrees Celsius (-58 to 1922 degrees Fahrenheit) Temperature display accuracy: 0.1 degrees Celsius Temperature measurement error: -50 to 0 degrees Celsius(-58 to 32 degrees Fahrenheit): +/-3 degrees Celsius (+/-5 degrees Fahrenheit) 0 to 1050 degrees Celsius (32 to 1922 degrees Fahrenheit): +/-1.5% rdg or +/-1.5 degrees Celsius（+/-2.7 degrees Fahrenheit）Take the bigger value Repeatability: 1% rdg or 1 degrees Celsius Take the bigger value Reponse time: 0.5s, 95% Response Emissivity: 0.10 to 1.00 Adjustable (preset as 0.95) D:S: 12:1 Response wavelength: 8um to 14 um Laser: Ring light spot Flashlight: UV light Ambient temperature measurement range: -20 to 60 degrees Celsius (-4 to 140 degrees Fahrenheit) Ambient temperature measurement accuracy: +/- 1 degrees Celsius (2 degrees Fahrenheit) Relative humidity measurement accuracy: +/- 5% RH Dew point temperature measurement: -10 to 50 degrees Celsius(14 to 122 degrees Fahrenheit): +/- 1.5 degrees Celsius / 3 degrees Fahrenheit Operating Temperature: 0 to 40 degrees Celsius (32 to 104 degrees Fahrenheit) Operating Humidity: 10% RH to 90% RH non-condensable Storage temperature: -10 to 60 degrees Celsius (14 to 140 degrees Fahrenheit) Batteries: 1.5V AAA battery x 2 (Not included) Low power indicator: Low power indicator for power below 2.4V Overload indicator: “Hi”/”Lo” displayed on LCD Dimensions: 108x49x177mm Weight: 180g
Specifications of K-type thermocouple Measurement range: 0 to 250 degrees Celsius (300 degrees Celsius for short time) Measurement error: +/- 2.5 degrees Celsius or 0.75% rdg Take the bigger value Thermal response time: ＜10s

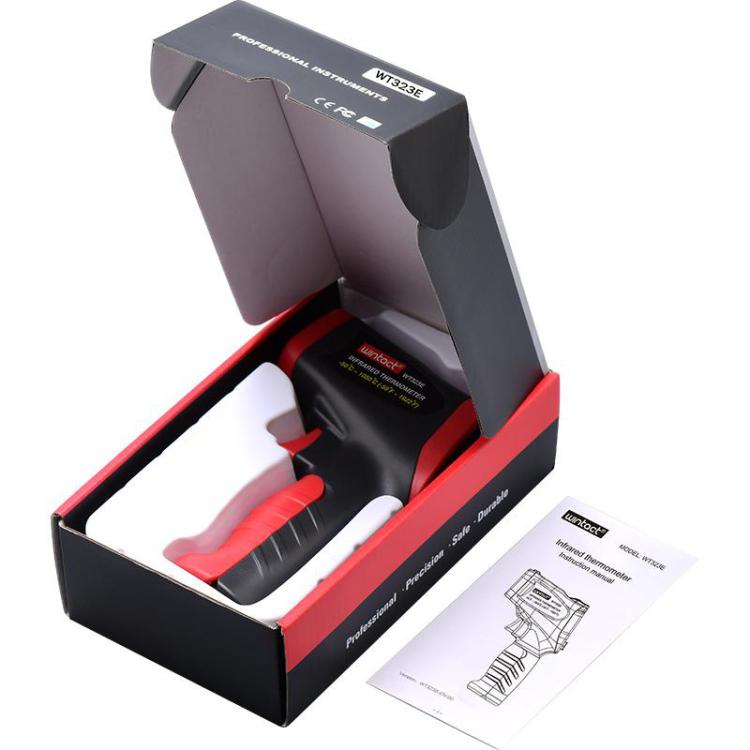

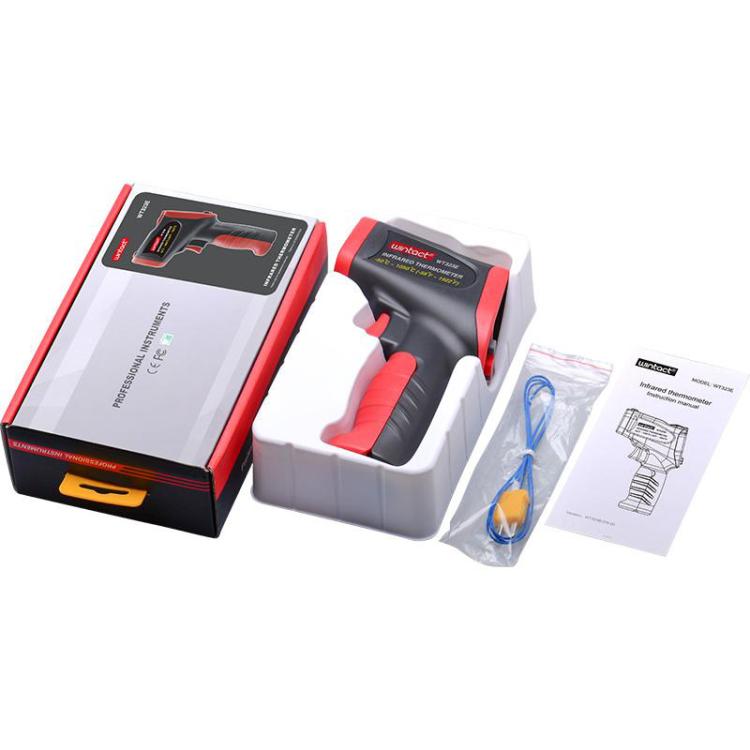

Accessories: Instructions x 1 Host x 1 K-type thermocouple x 1 Color box x 1
