Wintact WT2110 Color Screen Display Coating Thickness Gauge

Wintact WT2110 Color Screen Display Coating Thickness Gauge

Regular price $115.00
Regular price Sale price $115.00
Sale Sold out

In stock

Quantity
Fast Delivery
30-Day Returns
1-Year Warranty

Shipping Information

FAST DELIVERY to UK & 40+ countries.

Delivery: Typically 3-8 working days total including 0-3 days handling to the UK (estimated times for other locations shown at checkout)

Import duties and taxes may apply depending on destination. UK orders under £135 or less ship DDP with no extra charges at delivery. Orders over £135 may have import duties.

Ships from China. Your order will be processed and dispatched from the warehouse within 1–3 days if you order by 12 AM London.

Full shipping policy →

30-Day Money-Back Guarantee

Return unused items within 30 days (you pay return shipping). Faulty items covered, any costs to you will be refunded.

Full policy →

Right Part Guarantee

Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.

Easy Returns

Start your return online in seconds. No forms, no hassle.

Return portal →.

Trusted by DIY & repair professionals in 40+ countries

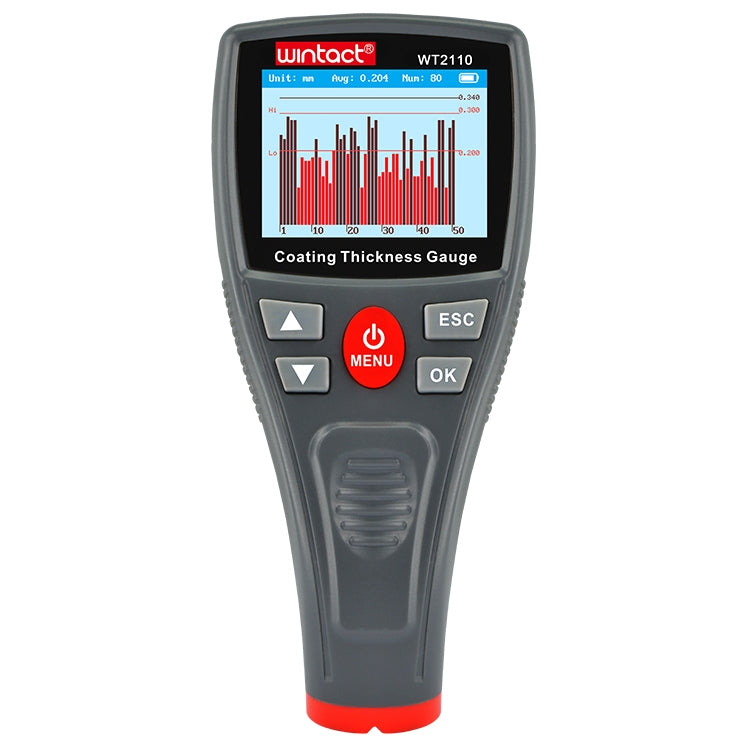

1. Menu operation and color screen high-definition display.
2. It can quickly, non-destructively and accurately measure the thickness of the non-magnetic coating on the magnetic metal substrate and the thickness of the non-metal coating on the non-magnetic metal substrate. At the same time, it can automatically identify the magnetic metal substrate and the non-magnetic metal substrate.
3. Two measurement methods: single measurement and continuous measurement.
4. Three calibration modes: basic calibration, offset calibration, and zero calibration. Metric/English units and storage function.

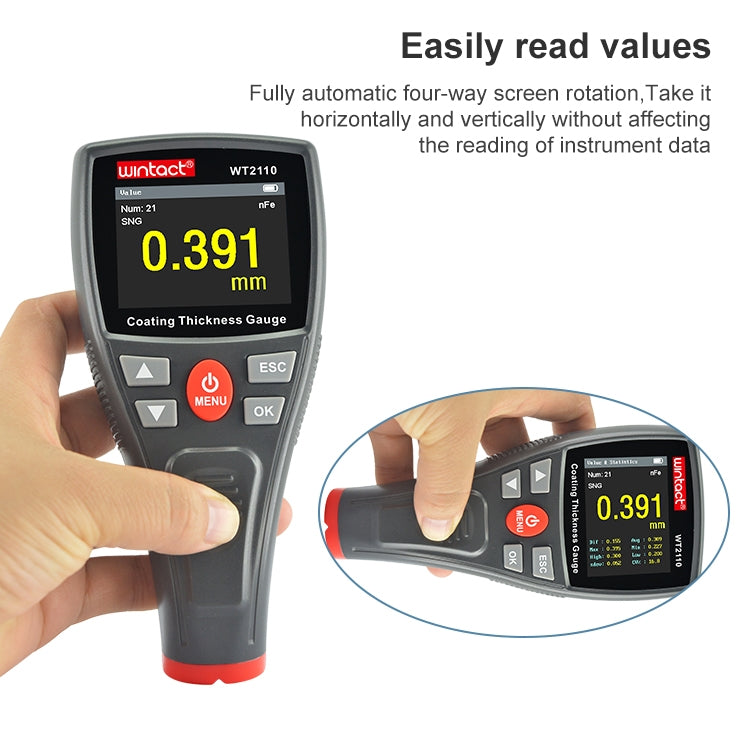

5. Screen rotation, charging protection, multi-interface display, screen brightness selection.

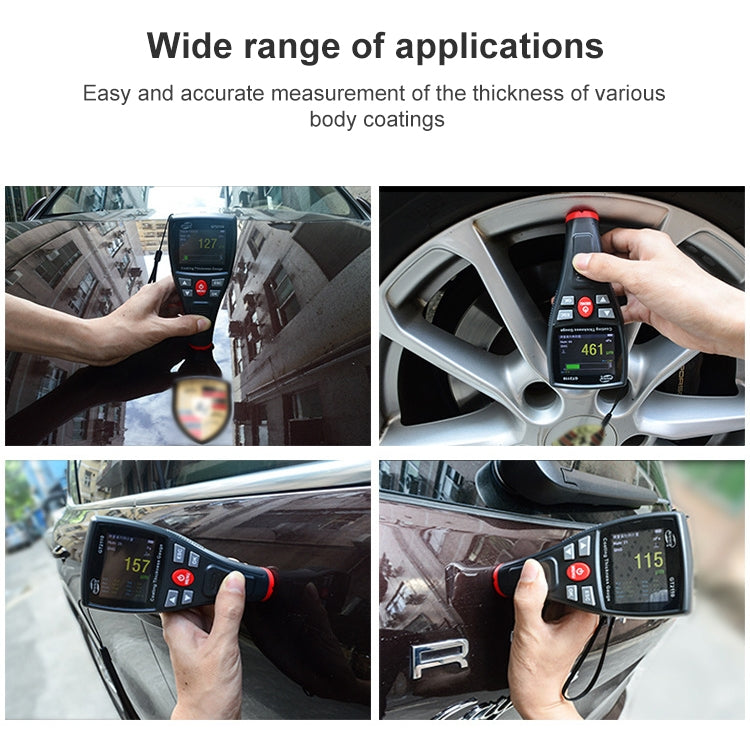

6. Widely used in manufacturing, metal processing, chemical, commodity inspection and other testing fields.
7. Support USB and battery power supply.
8. Measuring range: 0-1500um/0-1.5mm/0-59mil
9. Lower limit diameter of magnetic metal substrate: 12mm
10. Lower limit thickness of magnetic metal substrate: 0.5mm
11. The lower limit radius of curvature of the magnetic convex substrate: 2mm
12. The lower limit radius of curvature of the magnetic concave substrate: 11mm
13. Lower limit diameter of non-magnetic metal substrate: 50mm
14. Lower limit thickness of non-magnetic metal substrate: 0.5mm

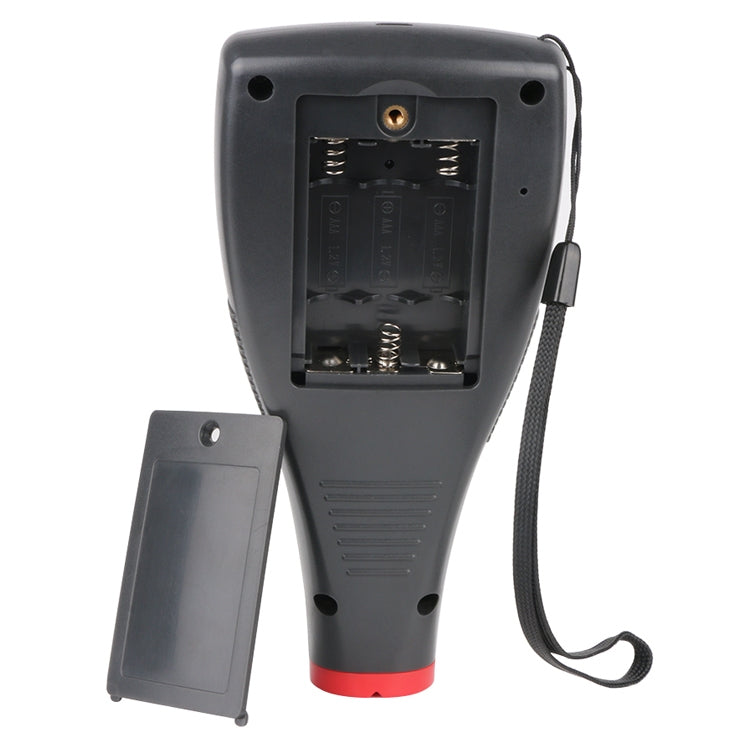

15. Battery: 3 x 1.2V Ni-MH battery or 5V 1A power adapter
16. Weight: 132g
17. Dimensions: 150 x 65 x 30mm

Verified Compatible

Guaranteed fit for device in the title. Wrong part? Full refund including shipping.
