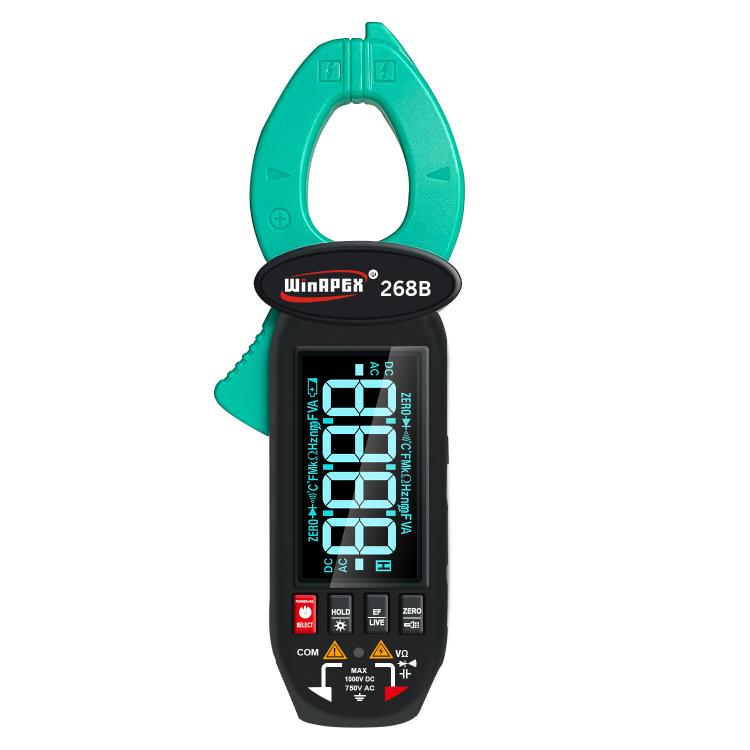

WINAPEX Clamp Meter High-precision AC / DC Voltage and Current Meter(268B)
WINAPEX Clamp Meter High-precision AC / DC Voltage and Current Meter(268B)
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.

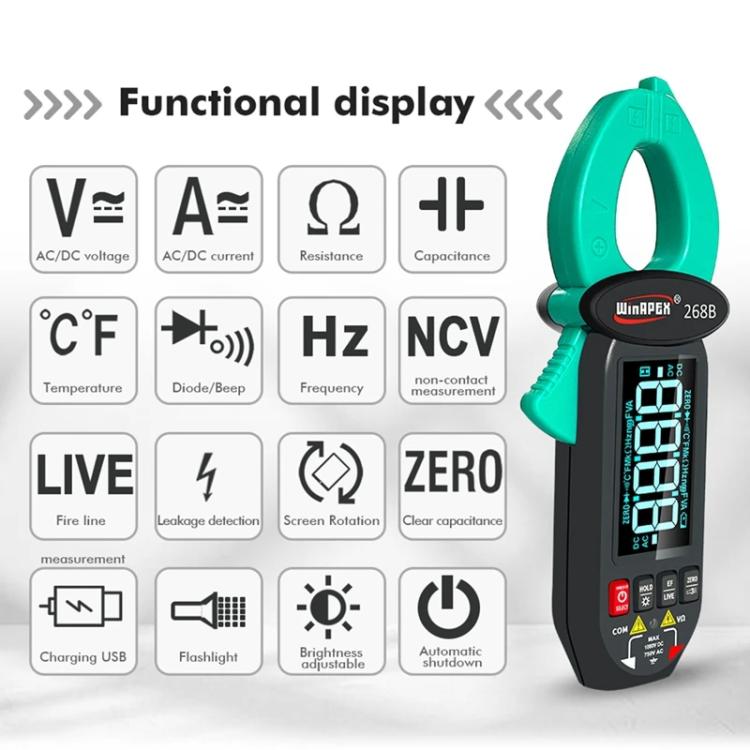

Features:

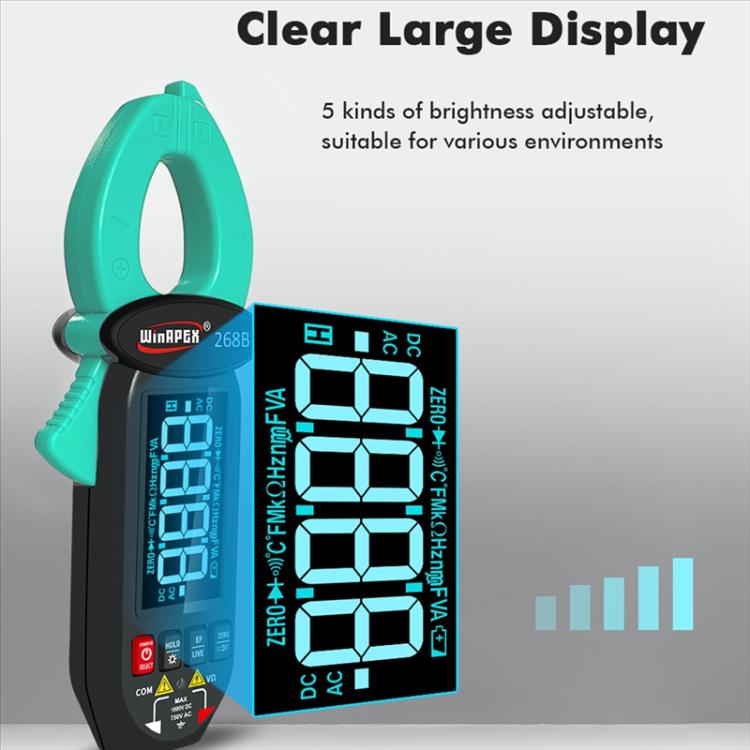

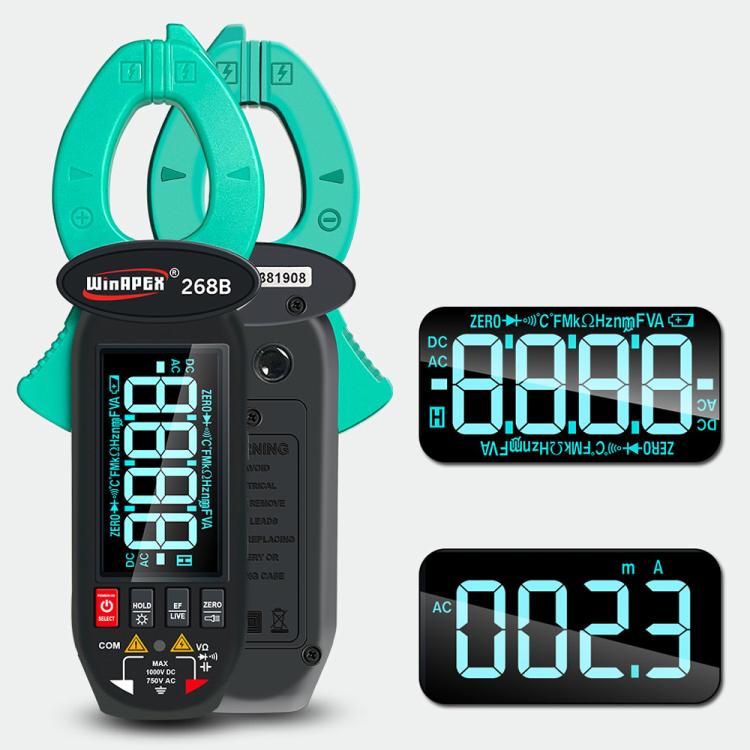

1. Colorful and clear display, 5 brightness levels can be adjusted to better adapt to the external environment

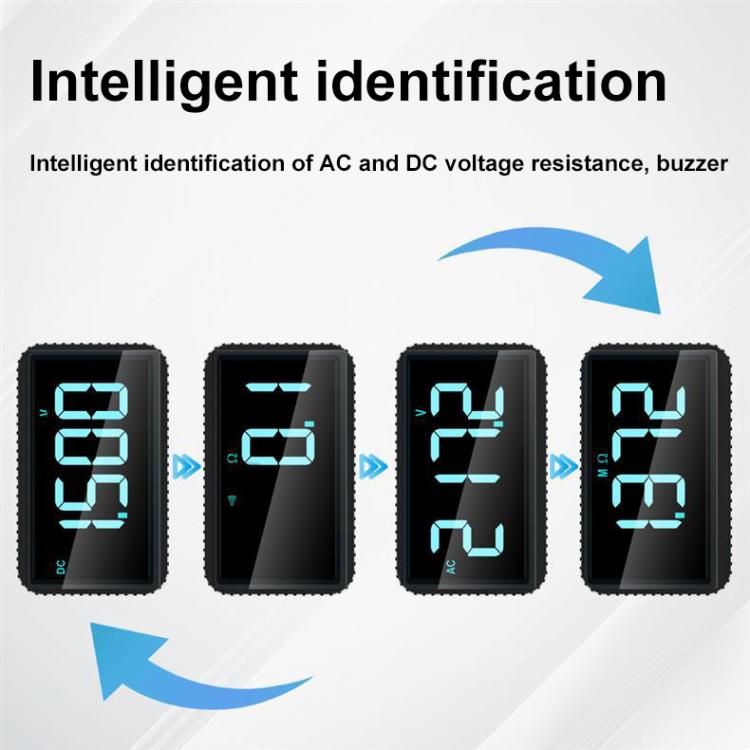

2. Intelligent identification of AC and DC voltage resistance, buzzer

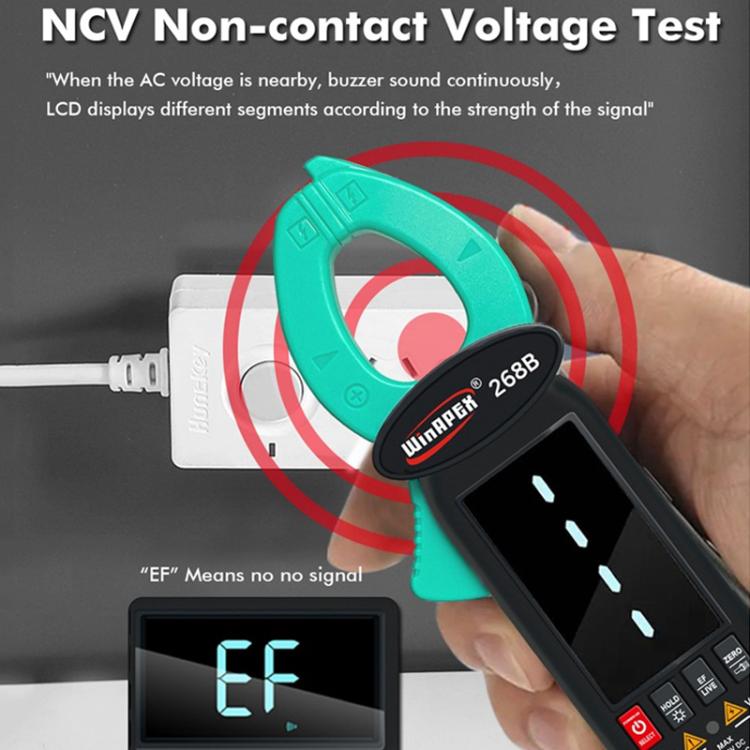

3. NCV non-contact measurement, place the front end of the meter close to the AC voltage, the buzzer sounds continuously, and the LCD displays different segments according to the strength of the signal

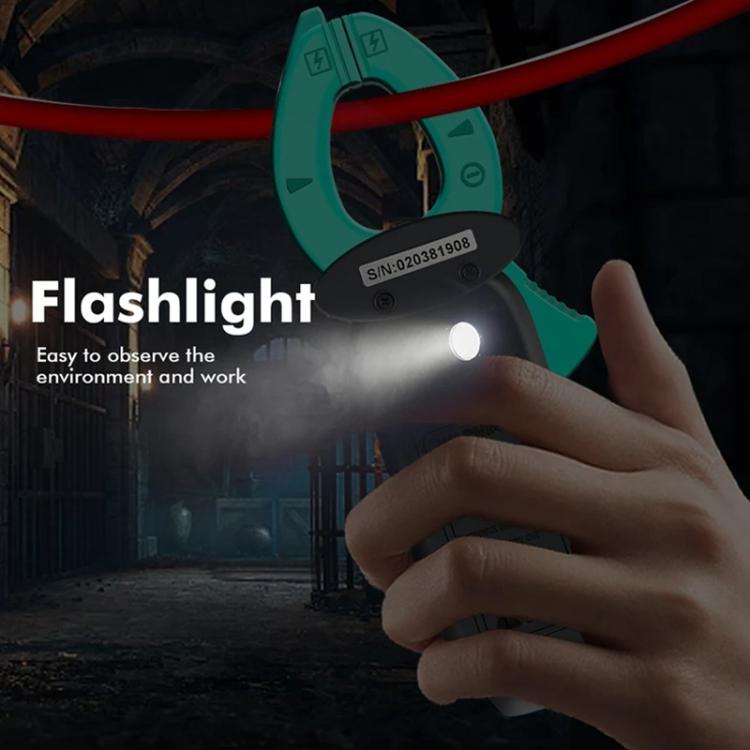

4. With a flashlight, it is easy to observe the environment and work

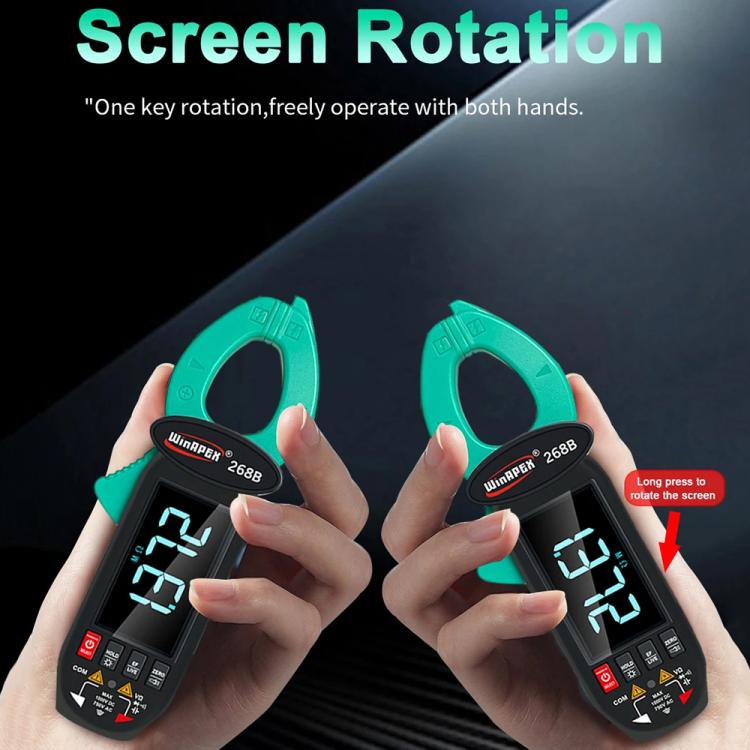

5. Long press the button to rotate the screen for easy reading
Product parameters:

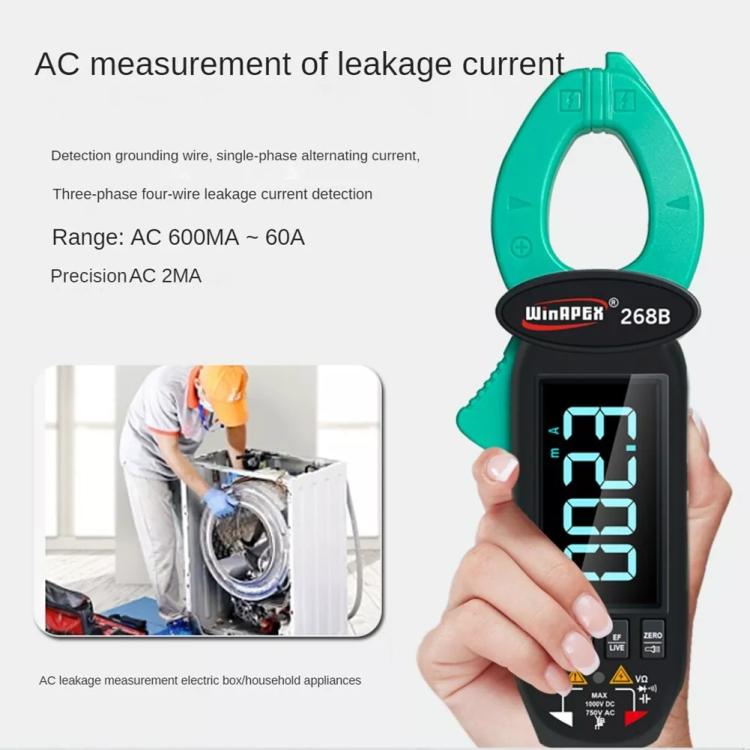

1. AC: 600mA/6A/60A

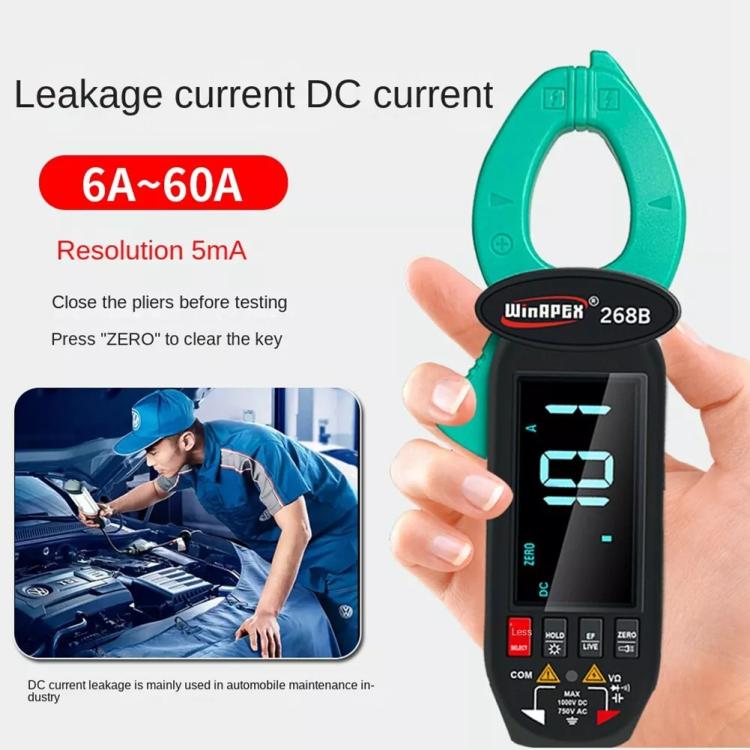

2. DC: 6A/60A
3. Measurement voltage range: 6/60/600/750V
4. Resistance range: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ
5. Capacitance: 6nF/60nF/600nF/6uF/600uF/6mF
6. Frequency: 6Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz
7. LCD size: 32 x 57mm

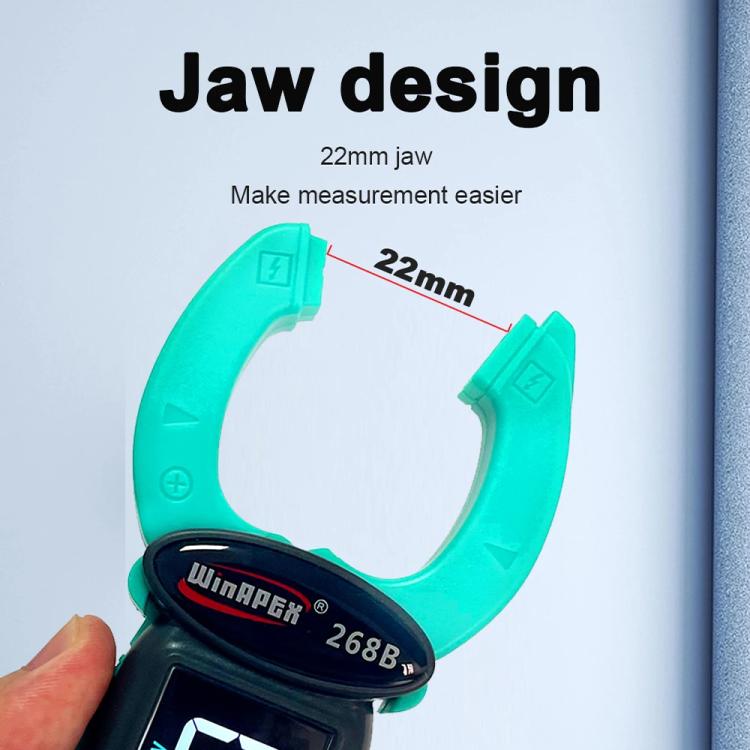

8. Clamp head opening width: about 22mm
9. Automatic shutdown: about 15 minutes
10. Temperature: -20 to 1000 degrees Celsius, -4 to 1832 degrees Fahrenheit
11. Interface: Type-C/USB-C
12. Battery: 750 mAh 3.7V lithium battery
13. Battery life: about 20 hours continuously
14. Product size: about 165 x 68 x 26mm
15. Product weight: about 140g
16. This product is manually measured, and there may be an error of 0.1-0.2 mm and 0.1-0.2 grams in length and weight; there may be a slight color difference due to display and light problems. Please refer to the actual product!
