1.Free installation, automatic networking, easily implement whole house WiFi coverage 2.Complies with IEEE 802.11ac/a/n/g/b standards 3.Simultaneous 5G 867Mbps and 2.4G 300Mbps connections for 1167Mbps of total available bandwidth 4.Mesh WiFi solution is built to connect with each other in a single network configuration. If one Node loses connection, the remaining units will reestablish Internet connection, automatically and seamlessly 5.Mesh WiFi System chooses the fastest path for device connections and keeps your network running as fast as possible 6.4 x Internal antennas provide omnidirectional stable signal and superior wireless coverage 7.Provides 10/100/1000Mbps Auto-Negotiation Ethernet WAN/LAN ports 8.Supported by PPPoE, Dynamic IP, Static IP access to the Internet 9.Support touch link function

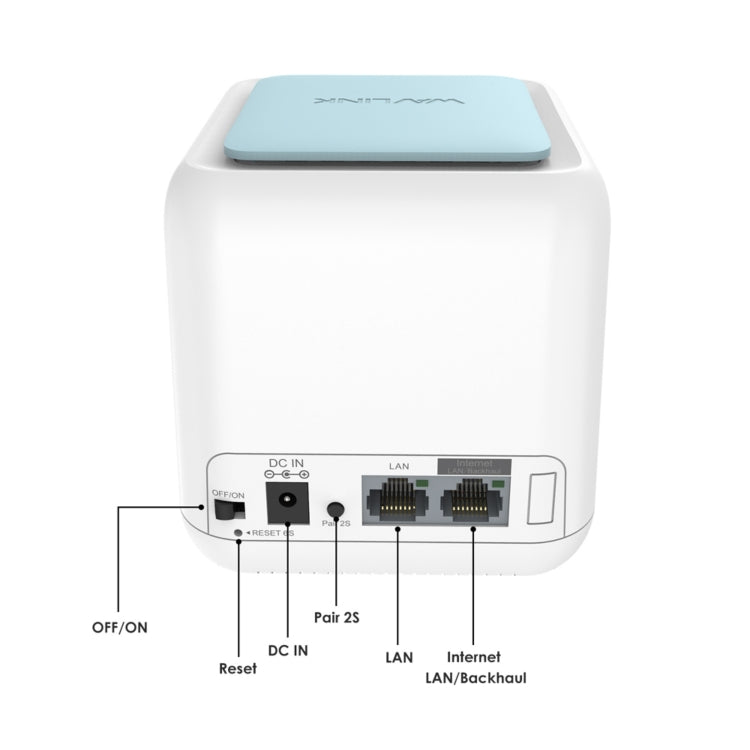

Specification: 1.Ports: 1 x10/100/1000Mbps WAN PORT 1 x10/100/1000Mbps LAN PORT 2.Button: 1 x Reset, 1 x Pair,1 x Touch Link, 1x POWER ON/OFF switch 3.LED: 1 x LAN, 1 x WAN, 1 x Status (Blue +Red) 4.Solution: MT7621DA+MT7613B+MT7603E 5.Flash: 128Mb 6.DDR3 RAM: 1024Mb 7.Power Supply: DC12V 1A 8.Rated Voltage/ requency: input:100-240 Va.c. 50/60Hz 9.Standard: IEEE 802.11b/g/n/a/ac 10.Frequency band: 2.4GHz, 5GHz, 11.Transmit Power: 2.4G 19DBm MAX; 5G 20DBm MAX 12.Sensitivity: 802.11b: -93dBm /802.11g: -73dBm / 802.11n: -68dBm 13.802.11ac: up to 867Mbps, 802.11n: up to 300Mbps 14.802.11a: up to 54Mbps, 802.11g: 54Mbps,802.11b: 11Mbps 15.Wireless Security: WPA/WPA2Mix, WPA-PSK, WPA2-PSK encryption 16.Antennas: 4x3dBi Omni Directional Antennas 17.Distance: Indoor 1000-1500sq.ft/Each (According to the actual environment change) 18.WAN Type: PPoE, Dynamic IP, Static IP 19.DHCP Settings: Server, Client 20.Function: DHCP Server; Wireless Setting
