Waveshare SIM8262E-M2 5G HAT For Raspberry Pi, Quad Antennas 5G NSA, 5G/4G/3G Compatible(23254)
Waveshare SIM8262E-M2 5G HAT For Raspberry Pi, Quad Antennas 5G NSA, 5G/4G/3G Compatible(23254)
SKU: TBD0604830301A
Regular price
$411.00
Regular price
Sale price
$411.00
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Ships in 0–3 days
Quantity
Couldn't load pickup availability
1-Year Warranty
What's covered?
If your item develops a hardware fault or manufacturing defect, we've got you covered.
How we help
Our tech team is ready to test, repair, or replace your item to get you sorted as quickly as possible.
30-day returns
Fast refunds
Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage
Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
Features:

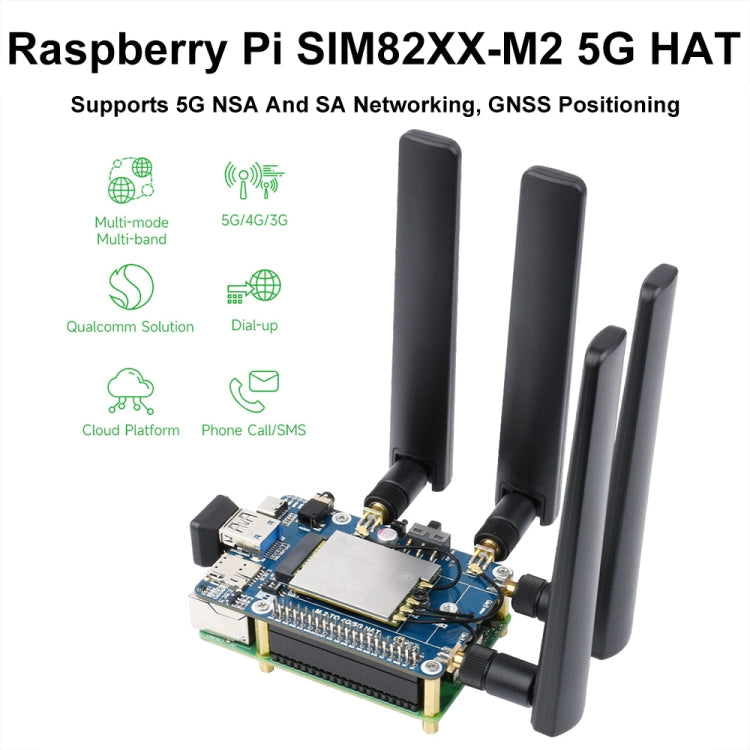

1. Based on Qualcomm platform, supports 5G NSA and SA networking, and supports multi-mode and multi-band
2. Multi-constellation dual-frequency positioning: GPS, Beidou, Glonass, Galileo, QZSS
3. USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi or Jetson Nano motherboard for high-speed 5G communication

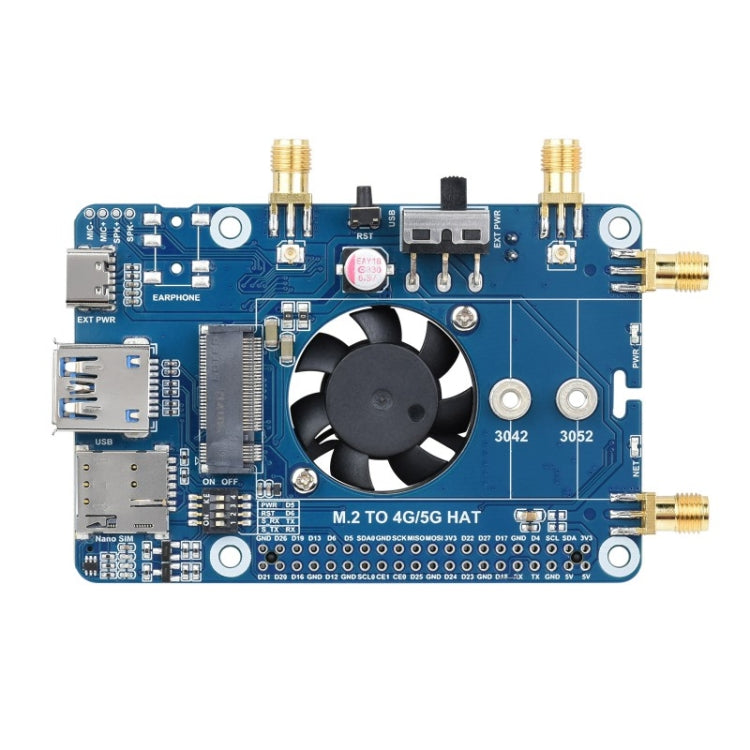

4. Standard M.2 B KEY slot, compatible with different 5G modules: SIM8202X-M2 / SIM8200EA-M2 / SIM8262X-M2 / RM5XX series, set by DIP switch
5. Onboard UART, PWR and RST control pins with built-in voltage level converter enabled via DIP switch for use with hosts such as Raspberry Pi or Arduino
6. The onboard USB-C interface can be turned on by a switch to connect an independent power supply to the module, supporting more loads and providing stable and flexible power supply.
7. Onboard power switch, reset button and LED indicator light for easy switching on and off or monitoring module operating status
8. 4 x SMA to IPEX antenna connectors with pre-soldered SMA terminals for antenna connection

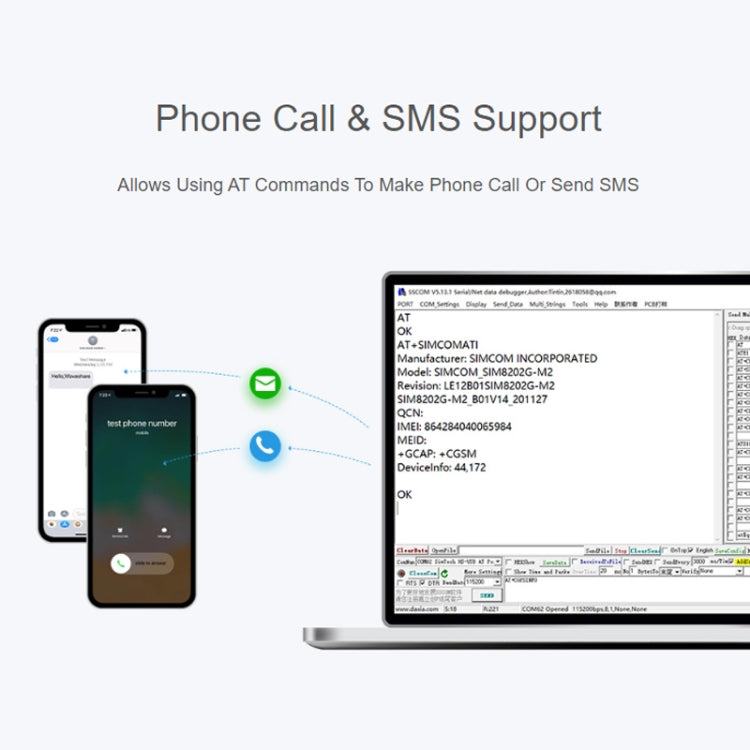

9. 2 x SIM card slots, dual SIM card single standby, can be switched by AT command
10. Onboard audio jack and audio decoder for audio operations such as making phone calls
11. High-efficiency power circuit, output current up to 3A
Product parameters:
1. 5G standard: 3GPP R16
2. Chip: Qualcomm Snapdragon X62
3. Sub-6G: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79
4. LTE-FDD: B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32
5. LTE-TDD: B38, B39, B40, B41, B42, B43
6. WCDMA: B1, B5, B8
7. GNSS: GPS, GLONASS, Beidou, Galileo, QZSS
8. Sub-6G: 2.4 Gbps (DL) / 500 Mbps (UL)
9. LTE: 1 Gbps (downlink)/200 Mbps (uplink)
10. HSPA+: 42 Mbps (downstream)/5.76 Mbps (upstream)
11. Operating system: Windows/Linux/Android
12. Communication protocol: TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
13. Dial-up: RNDIS, NDIS, PPP, MBIM
14. SMS: supports MT, MO, CB, text, PDU
15. Firmware upgrade: Support firmware upgrade through USB port
16. SIM card: 1.8V/2.95V
17. Antenna: suitable for 3G/4G/5G/GNSS, 6 × IPEX-4 connector, 4 × IPEX-4 connector
18. Power supply: 3.135-4.4V
