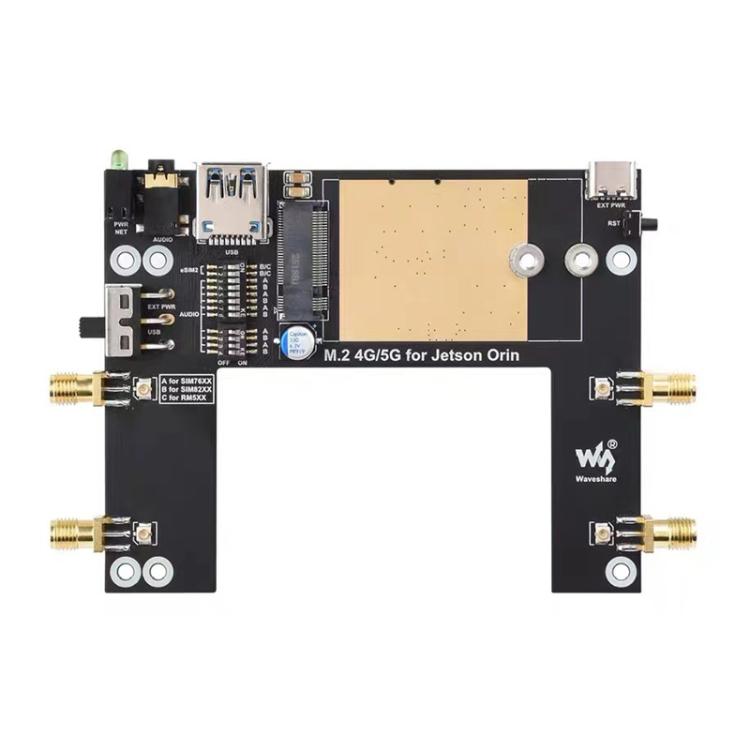

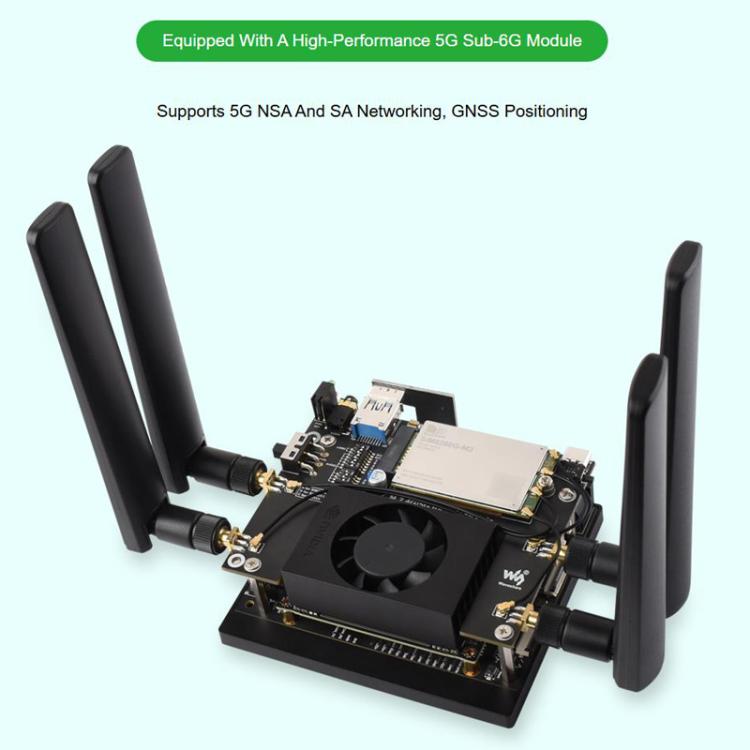

The WAVESHARE SIM8262E-M2 5G module is designed for high-speed 5G connectivity and GNSS positioning. It is compatible with the Jetson Orin and supports 5G NSA and SA networking standards.
Product Type: Module
Compatibility: Jetson Orin
5G Standard: 3GPP R164
Chip Solution: Qualcomm Snapdragon X6255
LTE Speed: 1.6Gbps (Download), 200Mbps (Upload)
HSPA+ Speed: 42Mbps (Download), 5.76Mbps (Upload)

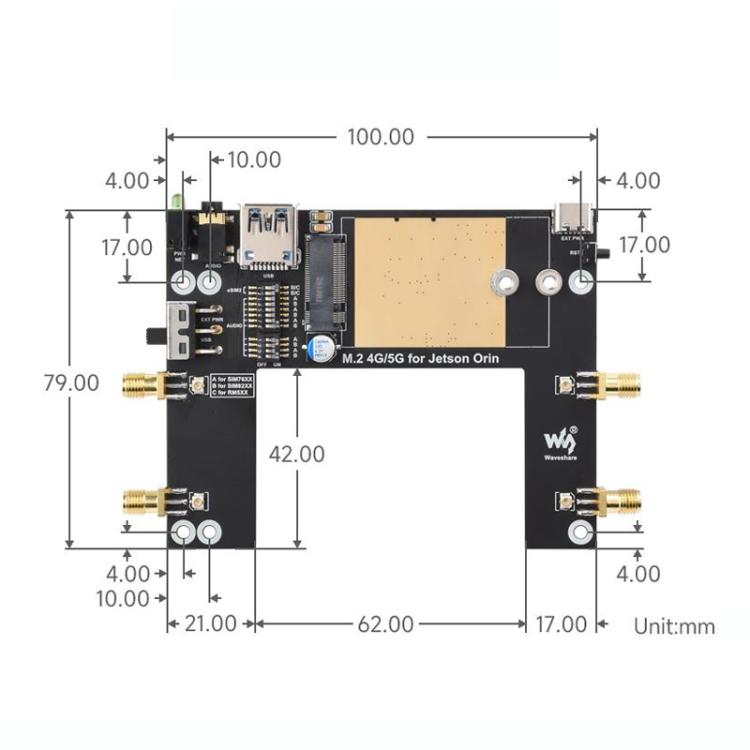

Size: Approximately 10 x 7.9 cm
Positioning: Dual-frequency with GPS, GLONASS, BeiDou, Galileo, and QZSS

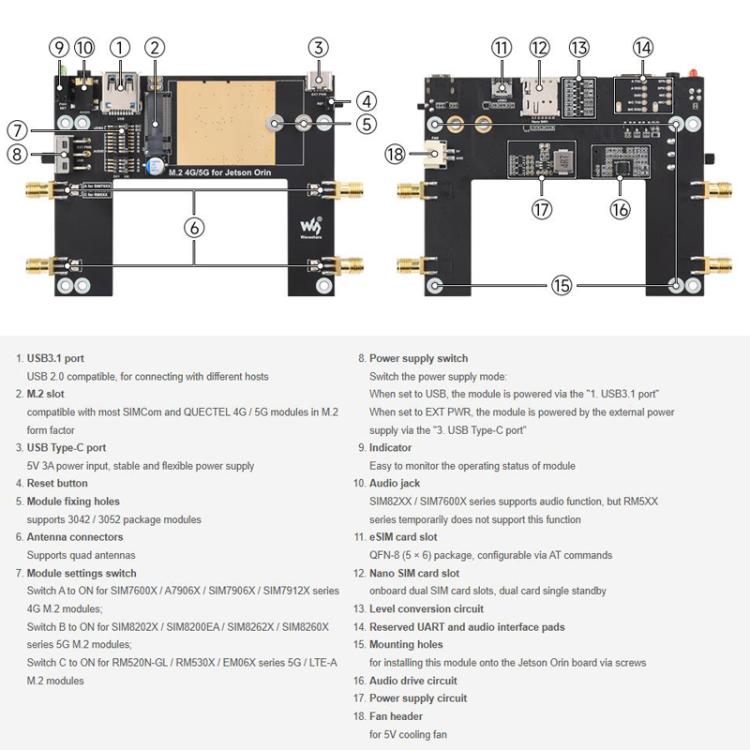

USB Interface: Onboard USB 3.1, backward compatible with USB 2.0
M.2B KEY Standard Interface: Yes
Antenna Interfaces: 4 SMA to IPEX conversion interfaces
UART Pad Interface: Reserved for data transmission
SIM Card Slots: 1 Nano SIM and 1 QFN-8 eSIM slot
Audio Interface: Onboard audio interface and audio decoder chip
Power Supply: High-efficiency circuit, outputs up to 3A current
Control Features: Onboard power switch, reset button, and LED indicator

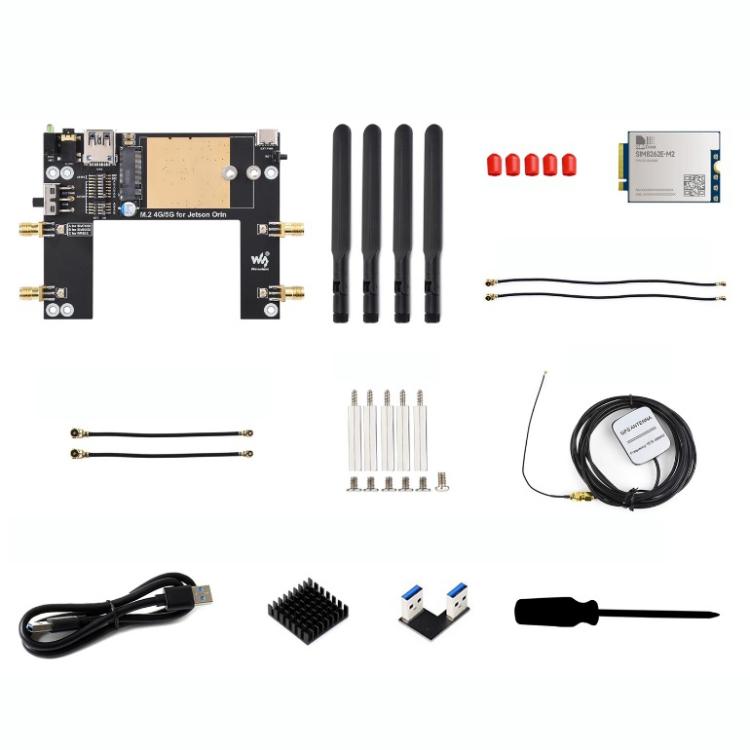

Packing List: Expansion board, module, 5G antennas (4), SMA dust protection caps (5), IPEX cables (2 of 13cm, 2 of 5cm), screw kit, GPS antenna, dual USB cable, cooler, USB converter, screwdriver
