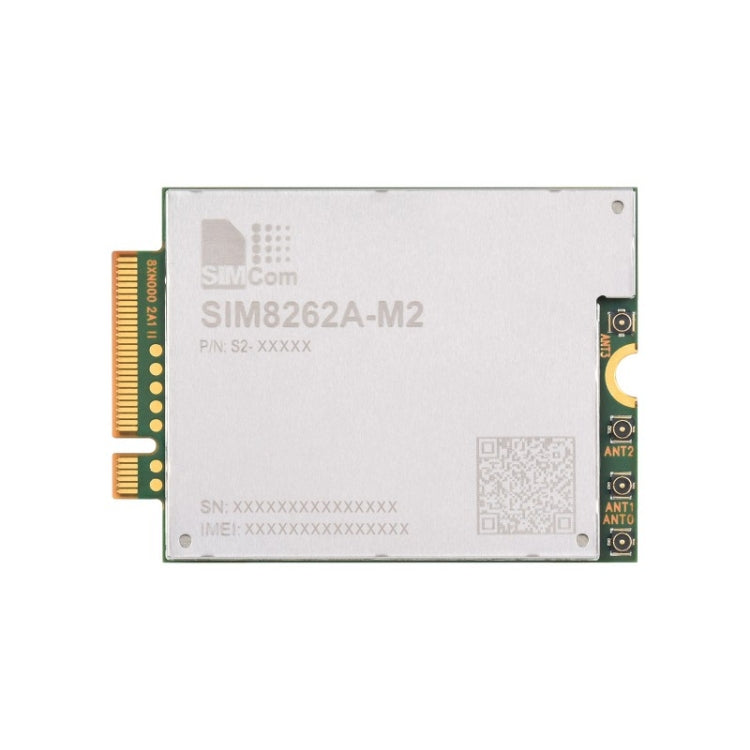

Waveshare SIM8262A-M2 SIMCom Original 5G Module, Interface M.2
Waveshare SIM8262A-M2 SIMCom Original 5G Module, Interface M.2
Exclusive Deals End Soon!
Save 5% on 2+ Items • Save 10% 3+ Items • Save 15% on 10+ Items
Applies automatically in cart & checkout • No code needed
Estimated delivery:
Couldn't load pickup availability
Shipping Information
Shipping Information
FREE SHIPPING to UK & 40+ countries. Fully insured.
Delivery: Estimated times shown at checkout based on your location (typically 6-13 days total including 1-3 days handling)
No hidden fees on orders under £135 (orders over £135 may have import duties)
Ships from China via tracked DDP service. Order by 12 AM London time for next-day dispatch.
30-Day Money-Back Guarantee
30-Day Money-Back Guarantee
Return unused items within 30 days (you pay return shipping). Faulty items covered at no cost to you.
Right Part Guarantee
Right Part Guarantee
Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.
Hassle-Free Returns
Hassle-Free Returns
Start your return online in seconds. No forms, no hassle.
Trusted by 80,000+ DIY & repair professionals
1. SIM8262A-M2 SIMCom 5G module Sub-6G module based on Qualcomm Snapdragon X62 adopts 3GPP 5G Release 16
2. SIM8262A-M2 is a multi-band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module, supports R16 5G NSA/SA, up to 2.4Gbps data transmission.
3. It has powerful expansion capabilities and rich interfaces, including PCle, USB3.1, GPIO, etc. This module provides great flexibility and ease of integration for customers applications
4. SIM8262A-M2 adopts M.2 shape, AT command is compatible with SIM7912G/SIM8200X-M2 series modules. This also minimizes customer investment and shortens time to market
5. It is designed for applications requiring high-throughput data communication under various radio propagation conditions. Due to the unique combination of performance, safety and flexibility, this module is well suited for many applications
6. Standard M.2 interface
7. High throughput data communication
8. The AT command of SIM8262A-M2 is compatible with SIM7912G/SIM8200X-M2 series modules
Specification:
1. 5G standard: 3GPP R16
2. Chip: Qualcomm Snapdragon X62
3. Sub-6G: n1, n2, n5, n7, n12, n13, n14, n18, n20, n25, n30, n41, n48, n66, n71, n77, n78, n79
4. LTE-FDD: B1, B2, B4, B5, B7, B12, B13, B14, B17, B18, B19, B25, B26, B29, B30, B66, B71
5. LTE-TDD: В38, B41, B42, B43, B46, B48
6. WCDMA: B1, B2, B4, B5, B8
7. GNSS: GPS, GLONASS, Beidou, Galileo and QZSS
8. Operating temperature: -30 to 70 degrees Celsius
9. SIM card: 1.8v/2.95v
10. Antenna: for 3G / 4G / 5G / GNSS; 4 x IPEX-4 connectors
11. Power supply: 3.135-4.4v
12. Interface: M.2
13. Applicable areas: CPE, intelligent gateway, drone, live broadcast, telemedicine, intelligent security, etc.

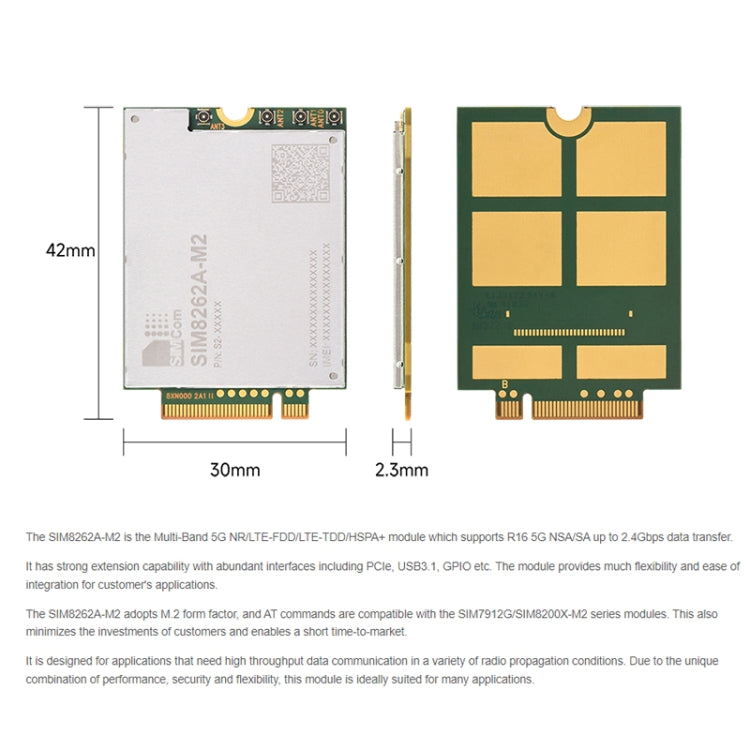

14. Dimensions: 42 x 30 x 2.3mm
Data rate:
1. Sub-6G: 2.4 Gbps (DL) / 500Mbps (UL)
2. LTE1: Gbps (DL) / 200Mbps (UL)
3. HSPA+: 42Mbps (DL) / 5.76Mbps (UL)
Software features:
1. Operating system: Windows / Linux / Android
2. Communication protocol: TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
3. Dialing: RNDIS, NDIS, PPP, MBIM
4. SMS support: MT, MO, CB, Text, PDU
5. Firmware upgrade: support firmware upgrade via USB port
