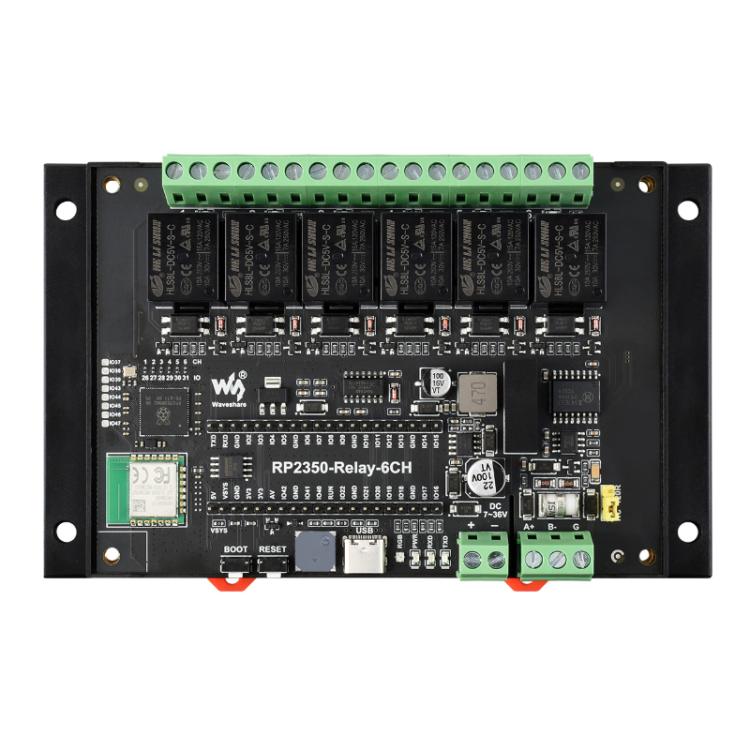

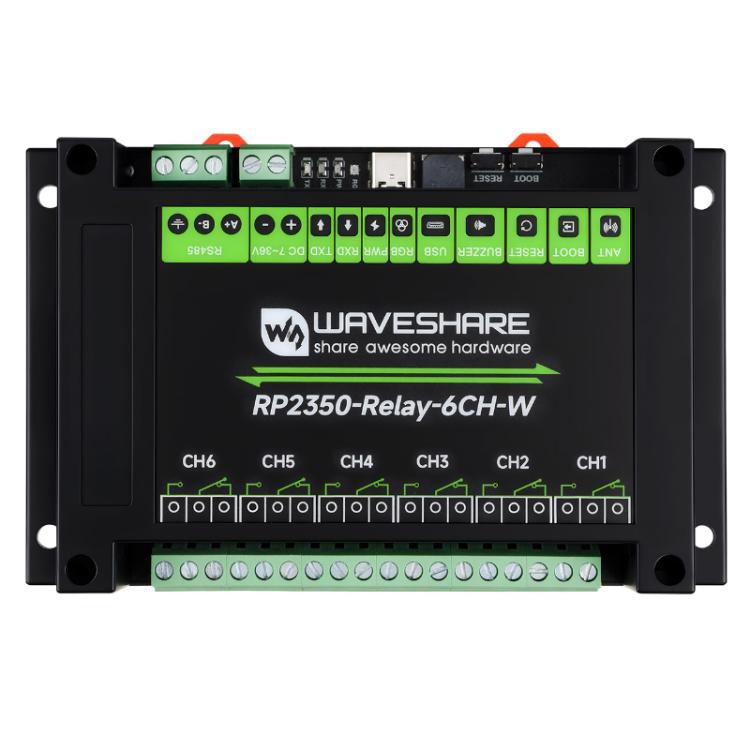

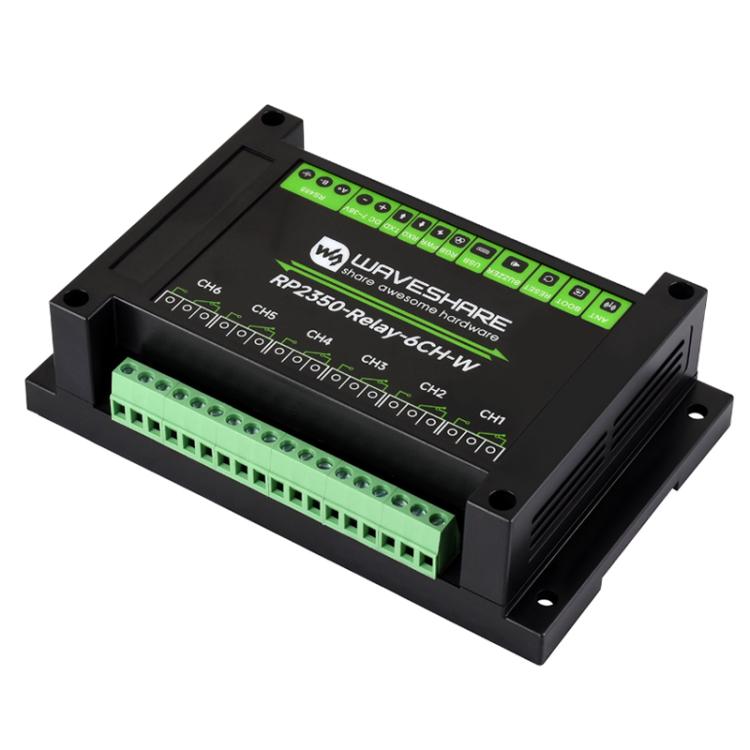

WAVESHARE RP2350 Industrial Control Board 6-Channel Relay Module, Based On RP2350 Microcontroller, Supports Wxternal Interfaces RS485 And Pico(With Wi-Fi Module)

• Product type: Relay Module
• Brand: WAVESHARE
• Compatibility: RP2350 Microcontroller
• Material: ABS
• Key feature: Supports external interfaces
• Color/Variant: Not specified
• Intended use: Industrial use
• Category: Arduino & SCM Supplies

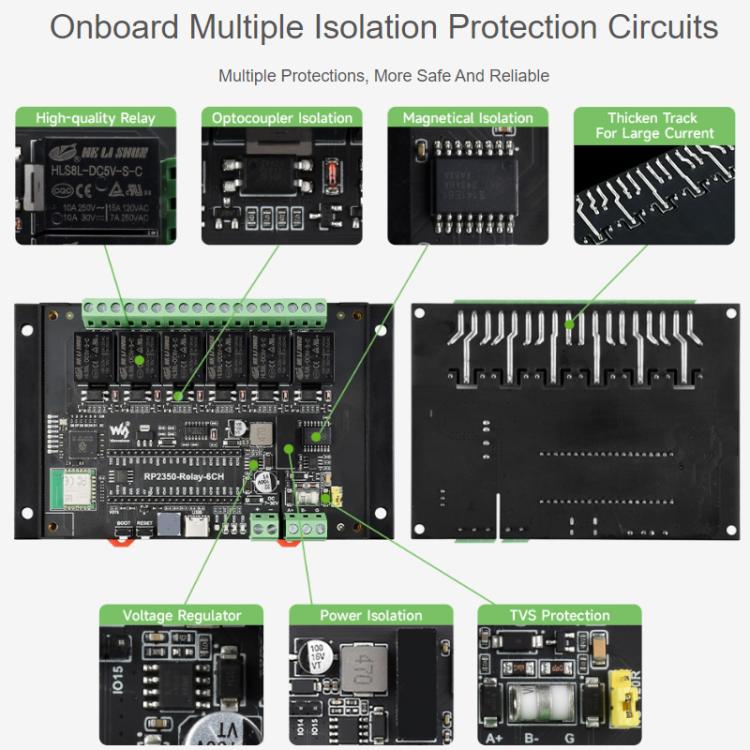

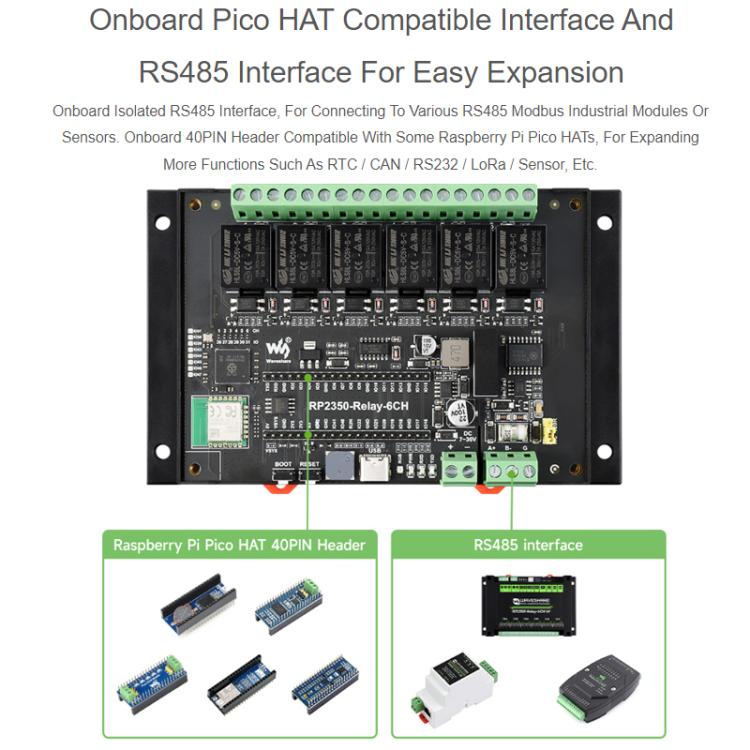

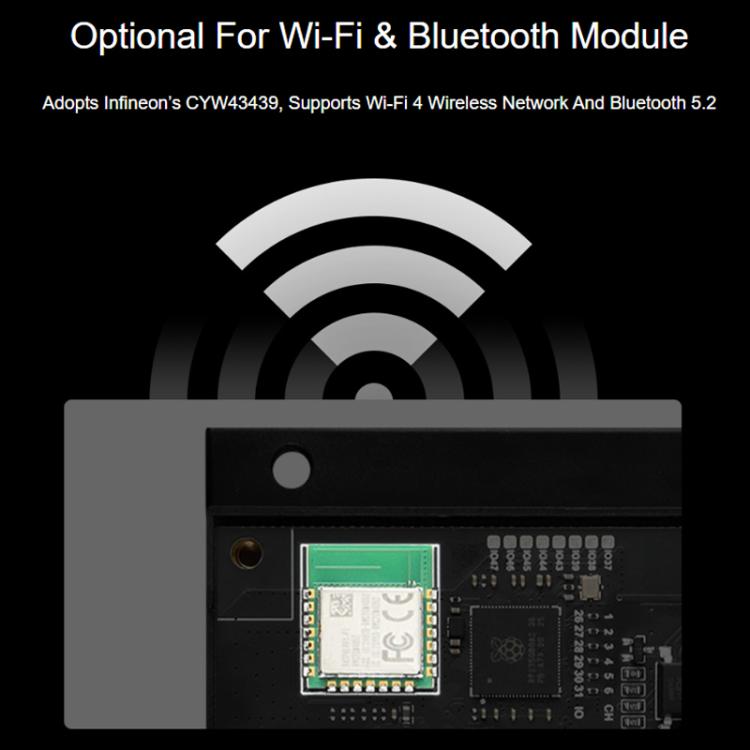

1. Based on the RP2350 main controller, it supports external interfaces such as RS485 and Pico, and features built-in power isolation and optocoupler isolation protection circuits for enhanced safety, stability, and reliability.2. Unique dual-core, dual-architecture design, equipped with a dual-core ARM Cortex-M33 processor and a dual-core Hazard3 RISC-V processor, both operating at clock frequencies up to 150MHz, allowing users to flexibly switch between the two architectures.3. Equipped with a Raspberry Pi Radio Module 2, supporting Wi-Fi 4 wireless network and Bluetooth 5.2 (Wi-Fi module version only).4. Built-in 520KB SRAM and 16MB on-chip Flash. Uses a Type-C interface, eliminating concerns about correct plug orientation.5. Uses high-quality relays, allowing connection to loads: 10A 250V AC or 10A 30V DC.6. On-board isolated RS485 interface for easy connection to various RS485 Modbus industrial expansion modules or sensors.7. On-board Pico-compatible interface, compatible with some Raspberry Pi Pico expansion boards, facilitating the expansion of functions such as RTC, CAN, RS232, LoRa, and sensors.8. On-board terminal block power supply interface, supporting a wide voltage range of 7V~36V, convenient for industrial power supply use.9. On-board optocoupler isolation to prevent high-voltage circuits connected to the relay from interfering with the control chip.10. On-board digital isolation to prevent external signals from interfering with the control chip.11. On-board integrated power isolation provides a stable isolated voltage; no additional power supply is required for the isolated end.12. On-board power and RS485 transceiver indicator lights, buzzer, and RGB LEDs for easy monitoring of the device's operating status.13. On-board power and RS485 transceiver indicator lights, buzzer, and RGB LEDs for easy monitoring of the device's operating status.14. Rail-mounted ABS protective casing for easy installation and safer use.15. USB 1.1 host and device support.16. Supports low-power sleep and hibernation modes.17. Controllable via USB. Identified as a mass storage device for drag-and-drop program downloading18. 34 multi-functional GPIO pins19. 1 HSTX pin, 2 I2C pins, 2 UART pins, 8 12-bit ADC pins, and 24 controllable PWM channels20. 12 programmable I/O (PIO) state machines for custom peripheral support
