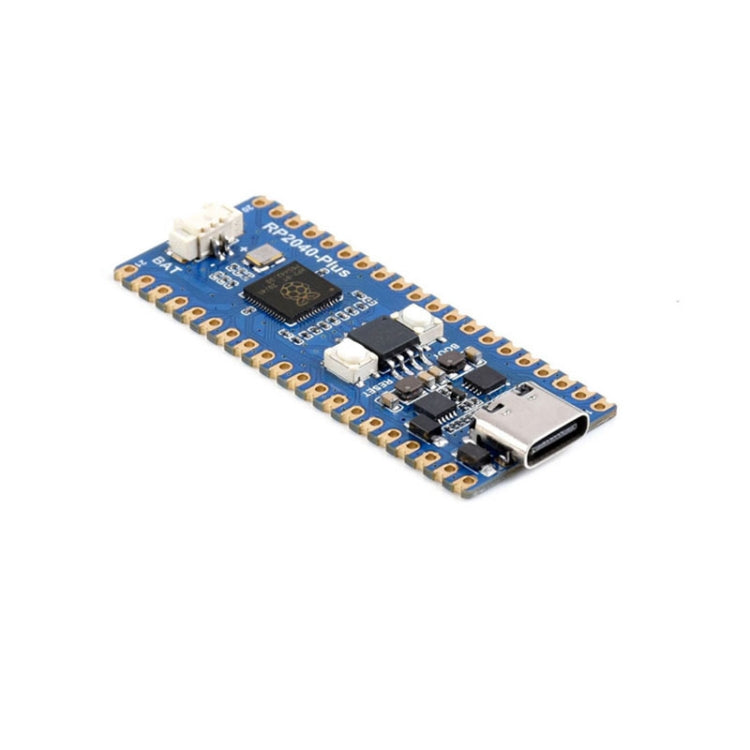

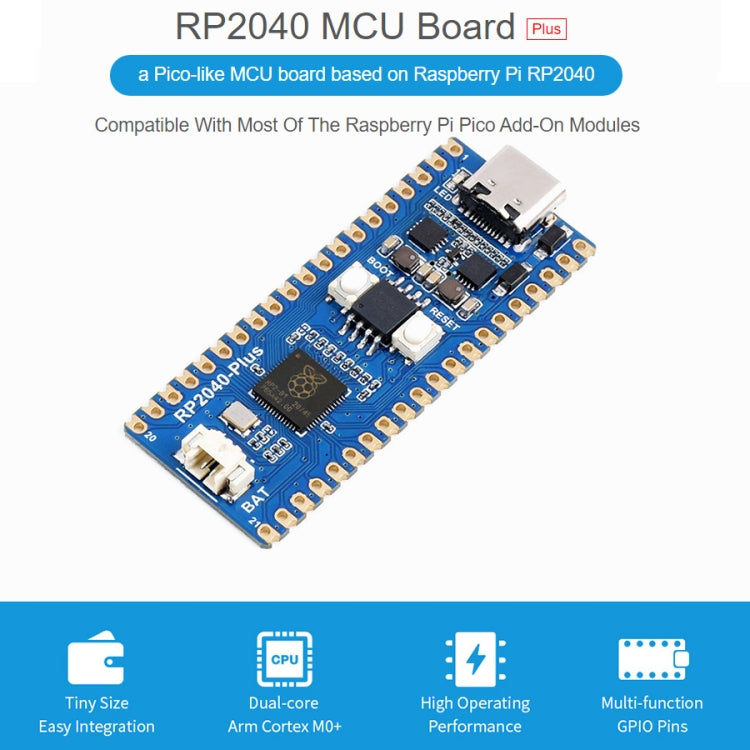

Waveshare RP2040-Plus Pico-like MCU Board Based on Raspberry Pi MCU RP2040, without Pinheader

Need more Flash for Raspberry Pi Pico? Dislike the outdated Micro USB connector? All these problems are solved by our RP2040-Plus now.
As same as Raspberry Pi Pico, it incorporates the RP2040 microcontroller, with dual-core Arm Cortex M0+ processor running up to 133 MHz, and 26x multi-function GPIO pins.
What is different, it features onboard 4MB Flash, USB-C connector, recharge header, and higher current DC-DC chip.

Key features include:
1. RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
2. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
3. 264KB of SRAM, and 4MB of on-board Flash memory
4. USB-C connector, keeps it up to date, easier to use
5. Lithium battery recharge/discharge header, suitable for mobile devices
6. Onboard DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch
7. Castellated module allows soldering direct to carrier boards
8. USB 1.1 with device and host support
9. Low-power sleep and dormant modes
10. Drag-and-drop programming using mass storage over USB

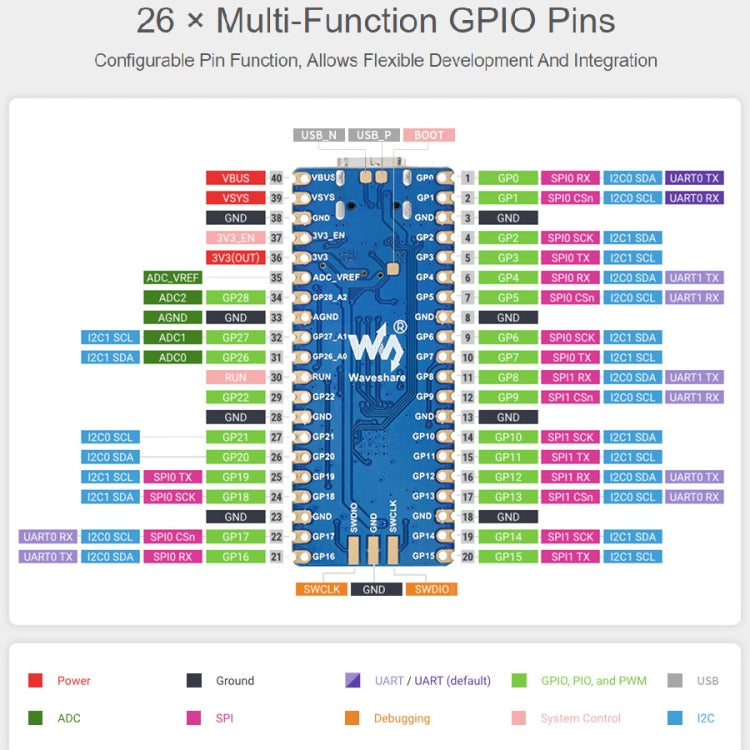

11. 26 x multi-function GPIO pins
12. 2 x SPI, 2 x I2C, 2 x UART, 3 x 12-bit ADC, 16 x controllable PWM channels
13. Accurate clock and timer on-chip
14. Temperature sensor
15. Accelerated floating-point libraries on-chip
16. 8 x Programmable I/O (PIO) state machines for custom peripheral support
