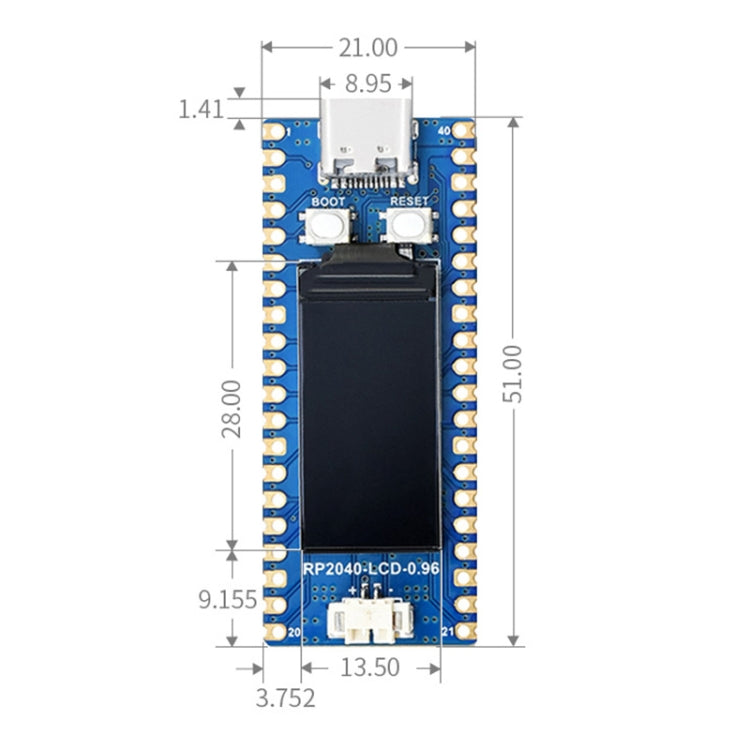

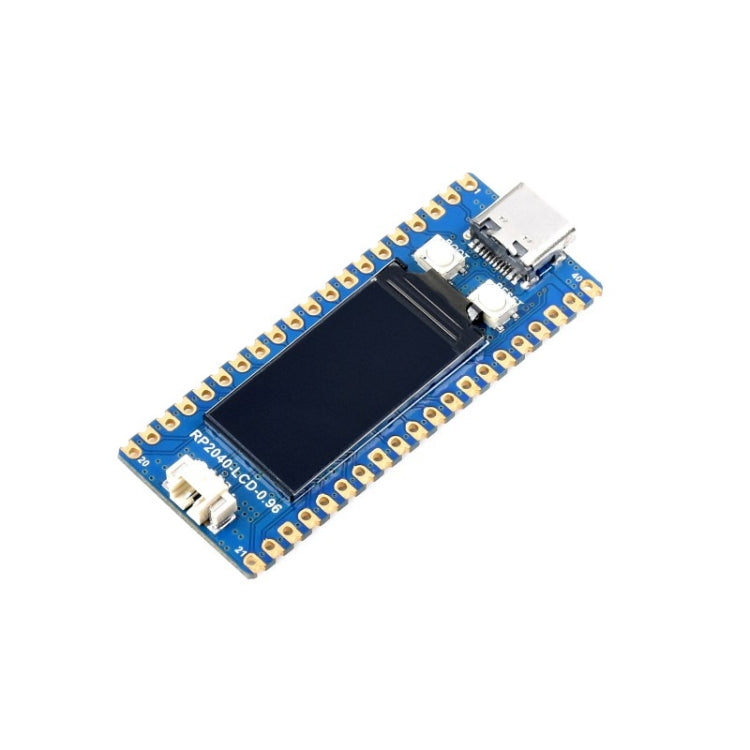

RP2040-LCD-0.96 is a low-cost, high-performance Pico-like MCU board with flexible digital interfaces. It incorporates Raspberry Pi RP2040 microcontroller chip, as same as on Raspberry Pi Pico. For software development, either Raspberry Pi C/C++ SDK, or the MicroPython is available, which makes it easy for you to get started, and integrate it into end products quickly. In additional, there are also onboard 0.96inch IPS display, Lithium battery recharge/discharge header, and high efficiency DC-DC buck-boost chip.
Key features include: 1. RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom 2. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz 3. 264KB of SRAM, and 2MB of on-board Flash memory 4. USB-C connector, keeps it up to date, easier to use 5. 0.96 inch 160x80 pixels 65K colorful IPS LCD display 6. Lithium battery recharge/discharge header, suitable for mobile devices 7. Onboard DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch 8. Castellated module allows soldering direct to carrier boards (there should be dedicated cut-out for embedding the bottom components) 9. USB 1.1 with device and host support 10. Low-power sleep and dormant modes 11. Drag-and-drop programming using mass storage over USB 13. 26 x multi-function GPIO pins 14. 2 x SPI, 2 x I2C, 2 x UART, 3 x 12-bit ADC, 16 x controllable PWM channels 15. Accurate clock and timer on-chip 16. Temperature sensor 17. Accelerated floating-point libraries on-chip 18. 8 x Programmable I/O (PIO) state machines for custom peripheral support
