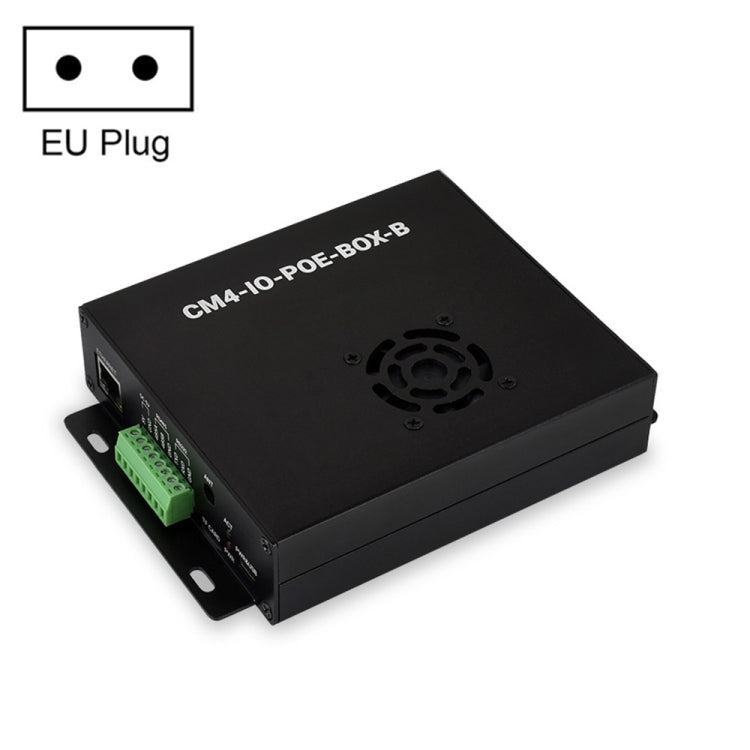

Waveshare PoE Mini-Computer Type B Base Box with Metal Case & Cooling Fan for Raspberry Pi CM4(EU Plug)
Waveshare PoE Mini-Computer Type B Base Box with Metal Case & Cooling Fan for Raspberry Pi CM4(EU Plug)
Estimated delivery:
Couldn't load pickup availability
Shipping Information
Shipping Information
FREE SHIPPING to UK & 40+ countries. Fully insured.
Delivery: Estimated times shown at checkout based on your location (typically 6-13 days total including 1-3 days handling)
No hidden fees on orders under £135 (orders over £135 may have import duties)
Ships from China via tracked DDP service. Order by 12 AM London time for next-day dispatch.
30-Day Money-Back Guarantee
30-Day Money-Back Guarantee
Return unused items within 30 days (you pay return shipping). Faulty items covered at no cost to you.
Right Part Guarantee
Right Part Guarantee
Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.
Hassle-Free Returns
Hassle-Free Returns
Start your return online in seconds. No forms, no hassle.
Trusted by 80,000+ DIY & repair professionals
1. POE: Integrates 802.3af-compliant PoE circuit (5V/2.5A)
2. USB: USB 2.0 x 4
3. GPIO: Raspberry Pi 40 PIN GPIO x 1
4. Header:
- RS485 x 1
- RS232 x 1
- PCIe Gen 2 x 1
5. HD media interface: HDMI x 2, supports 4K 30fps output
6. DSI display: MIPI DSI x 2 (15pin 1.0mm FPC)
7. CSI camera: MIPI CSI-2 x 2 (15pin 1.0mm FPC)
8. Power input: 5V
9. FAN: 5V / 12V (Allows speed adjustment and measurement)
10. RTC: Real-time clock with battery socket and ability to wake Compute Module 4
11. RJ45 Ethernet: Gigabit Ethernet
12. CM4 slot: Suitable for all variants of Compute Module 4
13. SD card slot: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
14. Size: 124.50 x 108.80mm

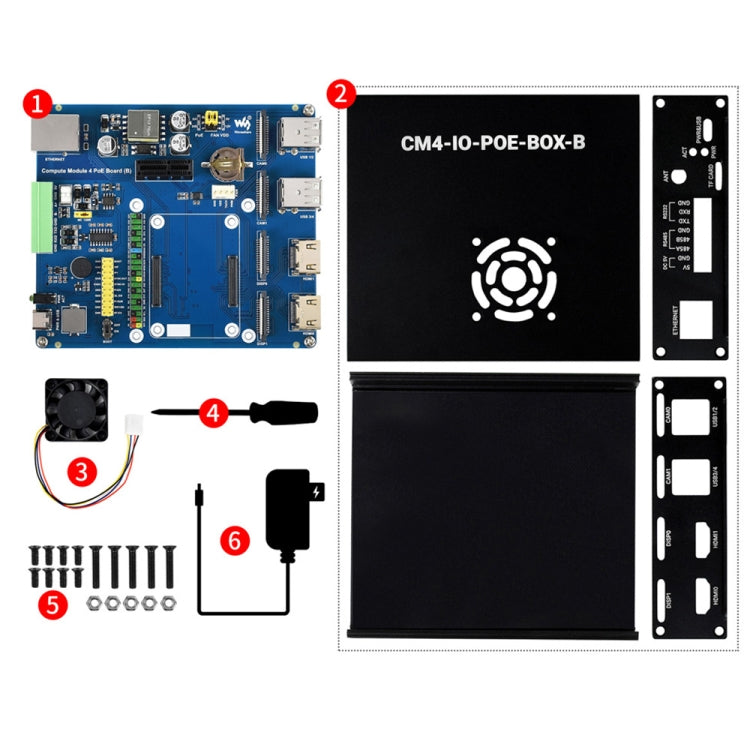

Package List
1. Compute Module 4 PoE Board (B) x 1
2. Metal case (top and bottom) x 1
3. Fan-4010-PWM-12V x 1
4. Screwdriver x 1
5. Screws pack x 1
6. 5V 3A USB-C power adapter x 1
Guaranteed fit for your device. Wrong part? Full refund including shipping.
