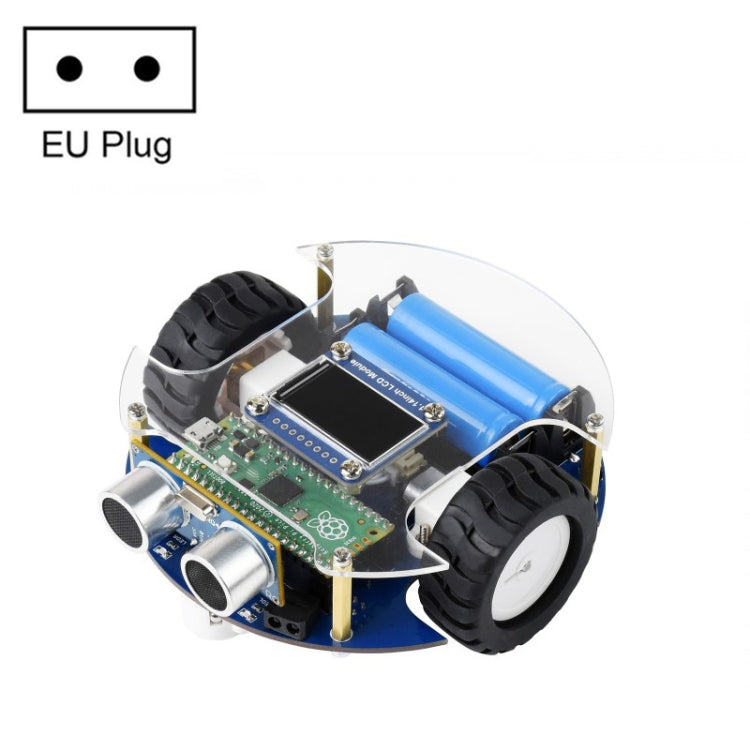

Features Smart robot is project of electronic enthusiasts, and there have been several robots based on Raspberry Pi Zero W, 3B+, 4B in Waveshare product line. Now, here comes the Pico version: PicoGo! The PicoGo is a smart mobile robot based on Raspberry Pi Pico, it includes ultrasonic module, LCD module, Bluetooth module, line following module, and obstacle avoidance module, all these functions are highly integrated for easily achieving IR obstacle avoidance, auto line following, BT/IR remote control, and more. With various advanced features, it will help you fast get started with smart robot design and development.
PicoGo smart mobile robot features: 1. Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series 2. Battery protection circuit: over charge/discharge protection, over current protection, short circuit protection, reverse proof, more stable and safe operating 3. Recharge/Discharge circuit, allows programming/debugging concurrently while recharging 4. 5-ch infrared sensor, analog output, combined with PID algorithm, stable line tracking 5. Onboard multiple smart robot sensors like line tracking, obstacle avoidance, no more messy wiring 6. 1.14 inch IPS colorful LCD display, 240 x135 pixels, 65K colors 7. Integrates BT module, allows teleoperations like robot movement, RGB LED display color, buzzer, etc. by using mobile phone APP 8. N20 micro gearmotors, with metal gears, low noise, high accuracy 9. Colorful RGB LED, pretty cool!
Raspberry Pi Pico controller board features: 1. RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom 2. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz 3. 264KB of SRAM, and 2MB of on-board Flash memory 4. USB 1.1 with device and host support 5. Low-power sleep and dormant modes 6. Drag-and-drop programming using mass storage over USB

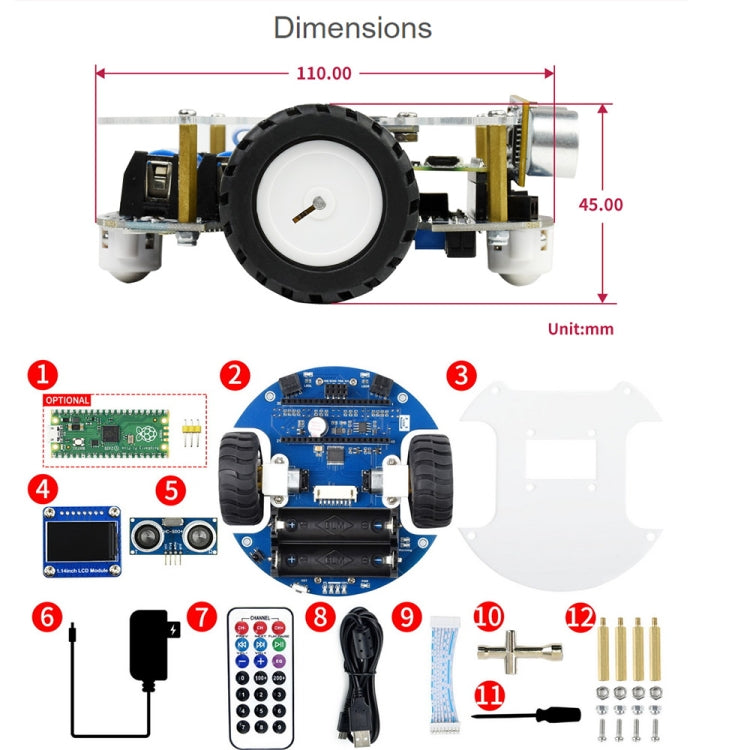

Package List 1. Raspberry Pi Pico (pre-soldered header) x1 2. PicoGo base board x1 3. PicoGo acrylic panel x1 4. 1.14inch LCD Module x1 5. Ultrasonic sensor x1 6. 5V 3A power supply x1 7. IR remote controller x1 8. USB-A to micro-B cable 1.2m x1 9. PH2.0 8Pin cable 5cm opposite side headers x1 10. Mini cross wrench sleeve x1 11. Screwdriver x1 12. Screws and standoffs pack x1
