Waveshare OV9281-120 1MP Mono Camera Module for Raspberry Pi, Global Shutter
Waveshare OV9281-120 1MP Mono Camera Module for Raspberry Pi, Global Shutter
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Portal.
2. The global shutter eliminates jello-effect while shooting fast moving objects, more suitable for high frame rate capturing

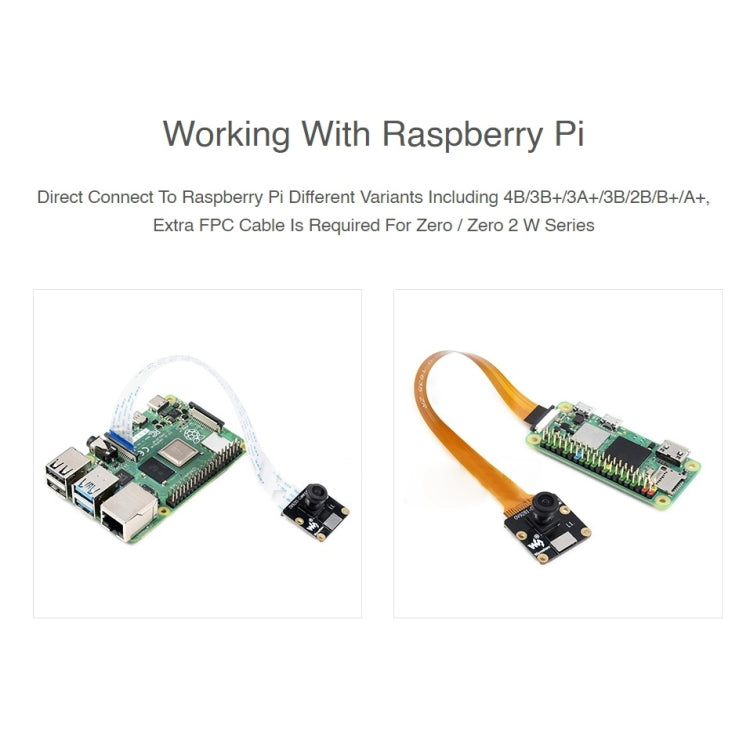

3. Working with Raspberry Pi, direct connect to Raspberry Pi different variants including 4B / 3B+ / 3A+ / 3B / 2B / B+ / A+, extra FPC cable is equired for Zero / Zero 2 W series
Specifications:
1. Sensor: OV9281
2. CMOS size: 1/4 inch
3. Camera type: Mono
4. Pixels: 1MP (1280 x 800)
5. Shutter: Global Shutter
6. Aperture: F2.5
7. Distortion: Less than 7.5%
8. Field of vies: 120 degree
9. Focal length: 3.15mm
10. Focusing: Fixed focus
Package List:
1. OV9281-120 Camera x 1
2. 15-pin FFC (opposite sides contact) x 1
