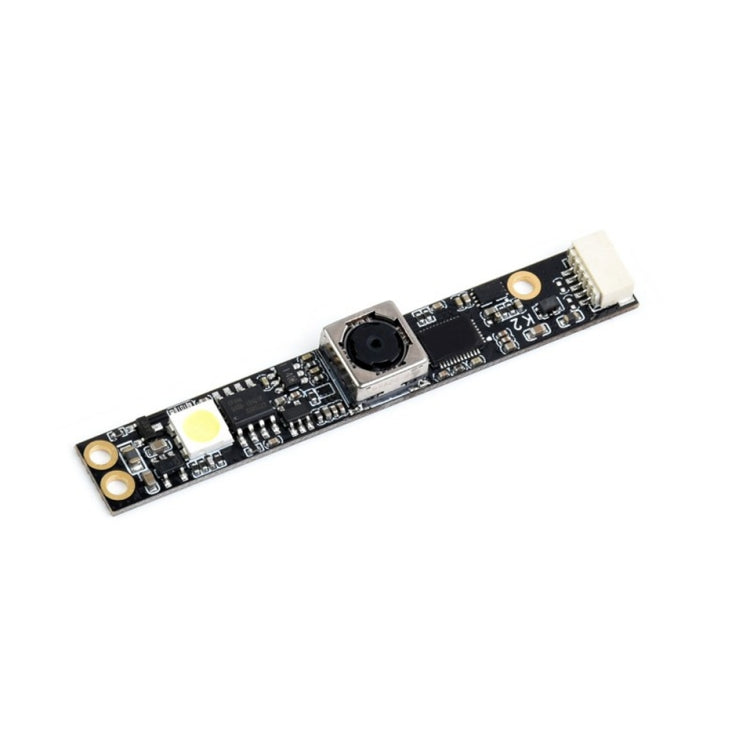

Waveshare OV5640 AF 5MP USB Camera Module, Support 1080P Video Recording

Name: Waveshare OV5640 AF 5MP USB Camera Module, Support 1080P Video Recording
Brand: WAVESHARE
SKU: DIY0245
Availability: InStock

$45.00

Sale Sold out

In Stock - Ships in 1-3 Days

Estimated delivery:

Free Shipping

30-Day Returns

1-Year Warranty

Shipping Information

FREE SHIPPING to UK & 40+ countries. Fully insured.

Delivery: Estimated times shown at checkout based on your location (typically 6-13 days total including 1-3 days handling)

No hidden fees on orders under £135 (orders over £135 may have import duties)

Ships from China via tracked DDP service. Order by 12 AM London time for next-day dispatch.

Full shipping policy →

30-Day Money-Back Guarantee

Return unused items within 30 days (you pay return shipping). Faulty items covered at no cost to you.

Full policy →

Right Part Guarantee

Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.

Hassle-Free Returns

Start your return online in seconds. No forms, no hassle.

Return portal →.

Trusted by 80,000+ DIY & repair professionals

1. Pixels: 5MP
2. Sensor: OV5640
3. Interface: USB 2.0
4. Camera: Sensor size 1/4 inch
5. Aperture (F): 2.8
6. Focal length (EFL): 3.29 mm
7. Field of view (FOV): 68 degree
8. Distortion: Less than 1%
9. Focusing(B): AF Auto-Focus;
10. Image Format support: MJPG, YUV422
11. Static image resolution: 2592 x 1944
12. Video recording: 15 FPS 2592 x 1944, 30 FPS 1920 x 1080, 30 FPS 1280 x 720
13. Operating voltage: 5V +/- 5%

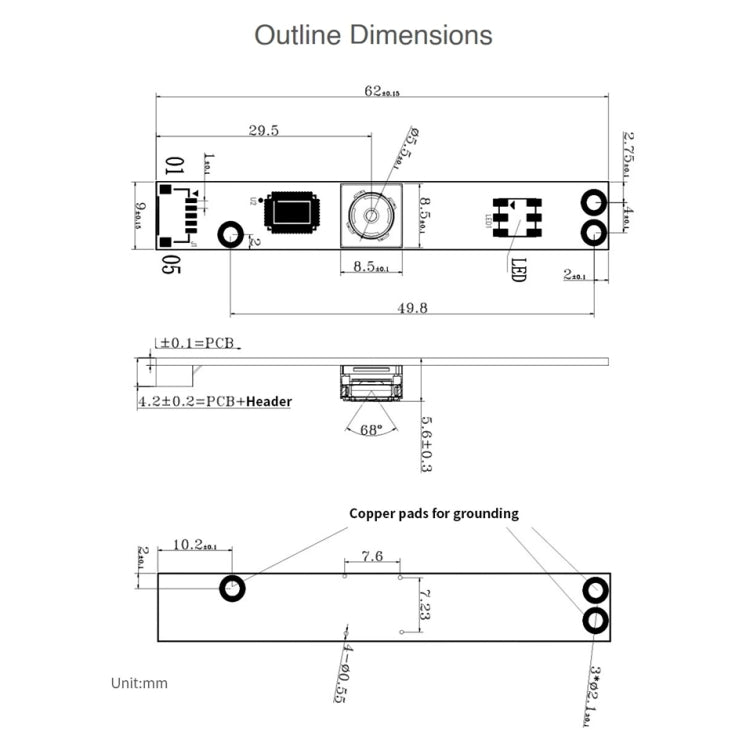

14. Camera size: 8.5 x 8.5 mm
15. Module size: 9 x 62 mm
