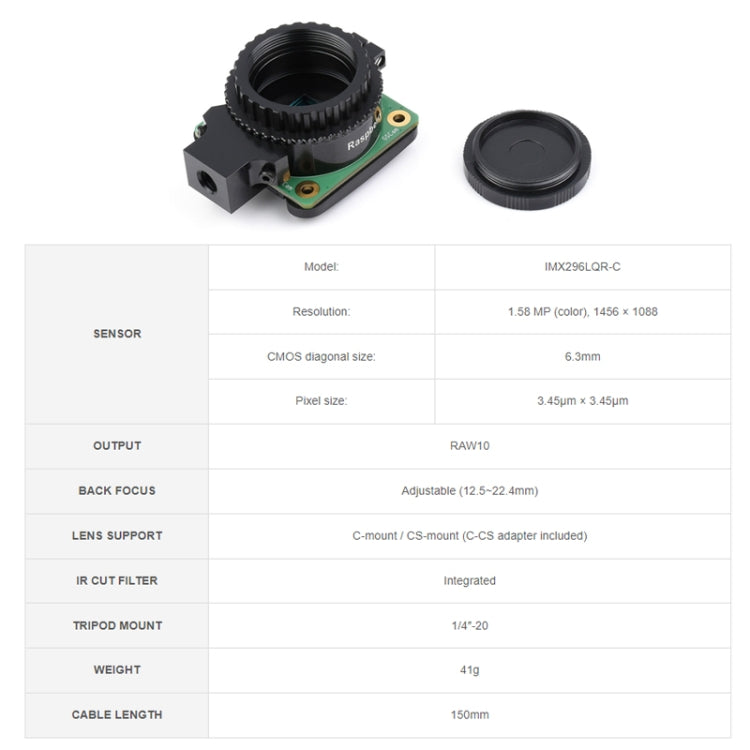

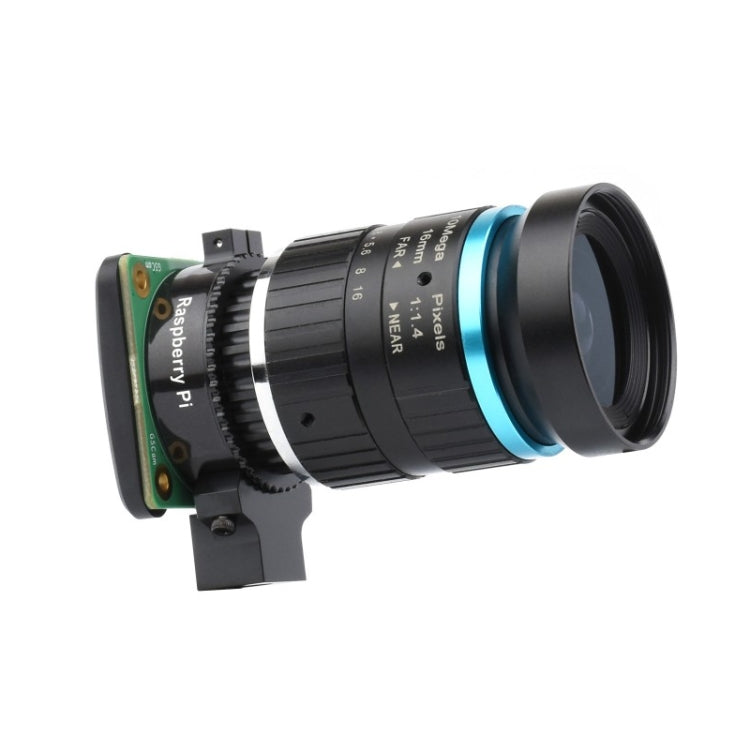

1. Resolution: 1.58 MP (color), 1456 × 1088 2. CMOS diagonal size: 6.3mm 3. Pixel size: 3.45μm × 3.45μm 4. Output: RAW10 5. Adjustable back focus (12.5~22.4mm) 6. The lens supports C-mount / CS-mount (including C-CS adapter) 7. IR CUT FILTER integration 8. Tripod: 1/4″-20 9. Weight: 41 grams 10. Data cable length: 150 mm 11. Based on IMX296 sensor with a resolution of 1.6MP 12. Capable of capturing fast moving objects without rolling shutter jelly effect, ideal for fast motion photography and machine vision applications 13. With a large pixel size of 3.45μm × 3.45μm providing high light sensitivity, the global shutter camera can operate at short exposure times (as low as 30μs with sufficient light) 14. The global shutter camera includes a C to CS mount adapter for industrial lenses with C or CS mount 15. Compatible with all Raspberry Pi series boards (Extra adapter required for Raspberry Pi Zero or Compute Module series) 16. Global shutter, clearer imaging 17. The global shutter eliminates the jelly effect when shooting fast-moving objects, which is more suitable for high-speed motion capture
Packing list: Global shutter camera x 1 C-CS adapter x 1 Dust cap x 1 screwdriver x 1 FFC ribbon x 1 box x 1
