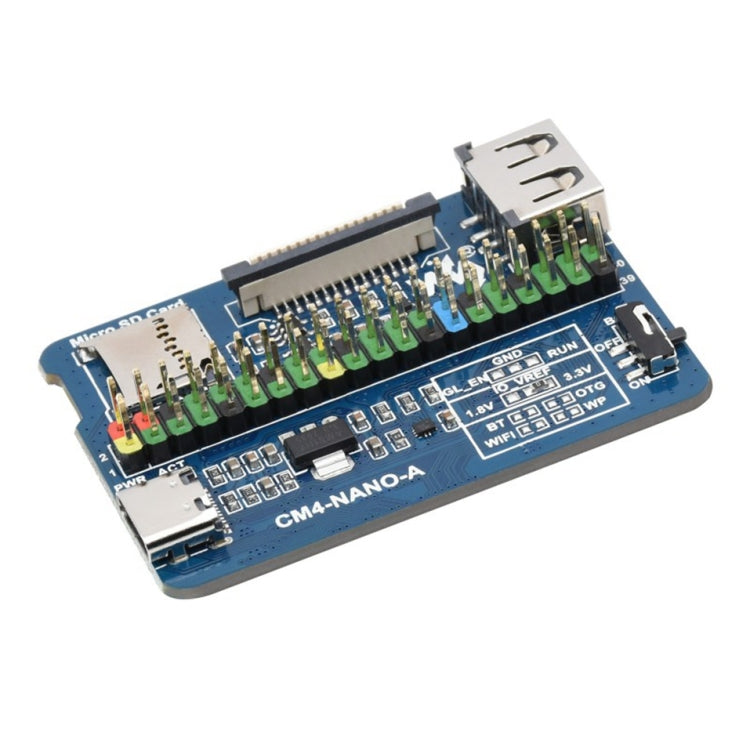

1. Base board for Compute Module 4 Lite / eMMC 2. Standard CM4 socket, with multiple peripheral interfaces, suitable for narrow application environment

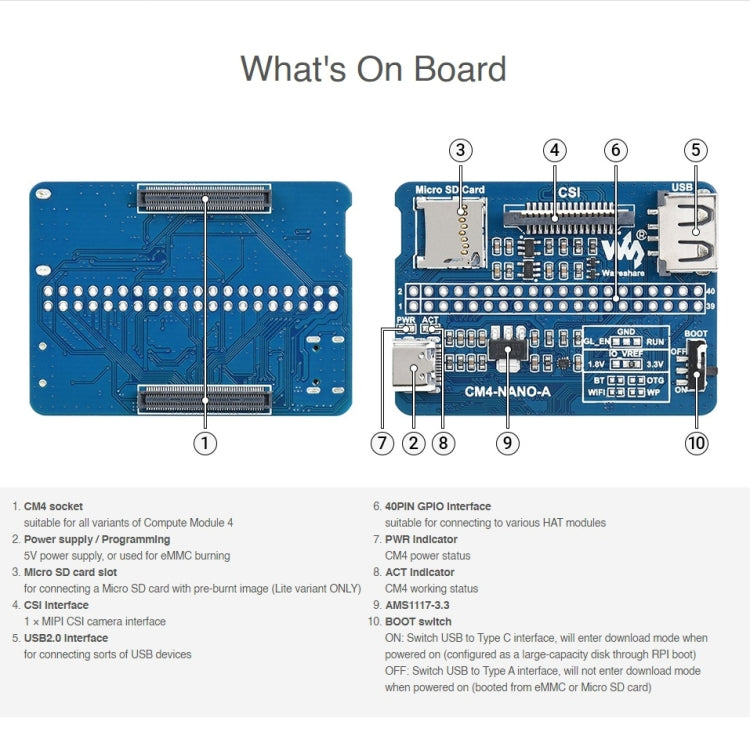

Specifications: 1. CM4 socket: Suitable for all variants of Compute Module 4 2. Connector: Raspberry Pi 40PIN GPIO interface x 1 3. USB: USB 2.0 Type A interface x 1 4. Camera: MIPI CSI-2 port x 1 (15pin 1.0mm FPC connector) 5. Storage: Micro SD card socket for Compute Module 4 Lite (without eMMC) variants 6. Power: 5V 7. Size: 55 x 40mm
Package list 1. CM4-NANO-A x1 2. 2 x 20PIN color-coded straight pinheader x 2
