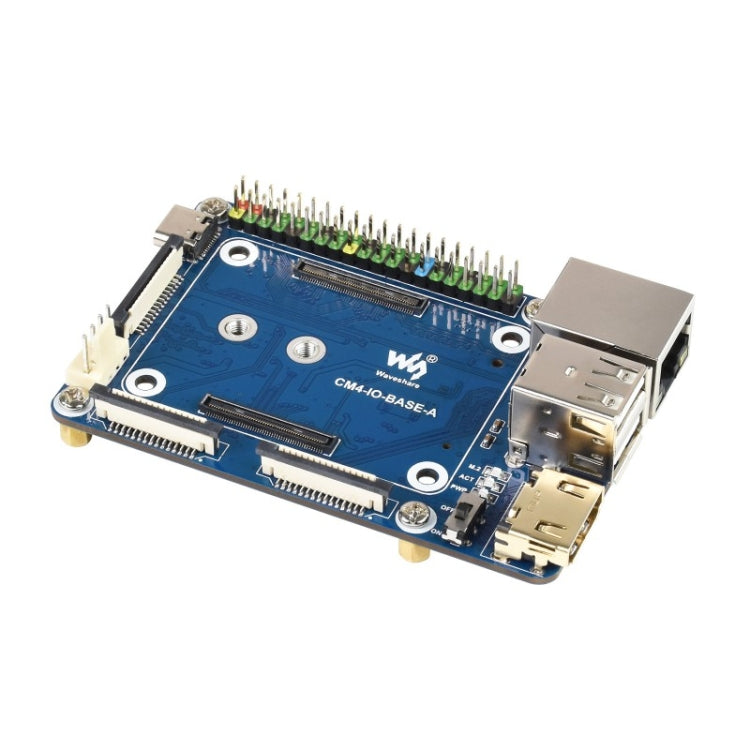

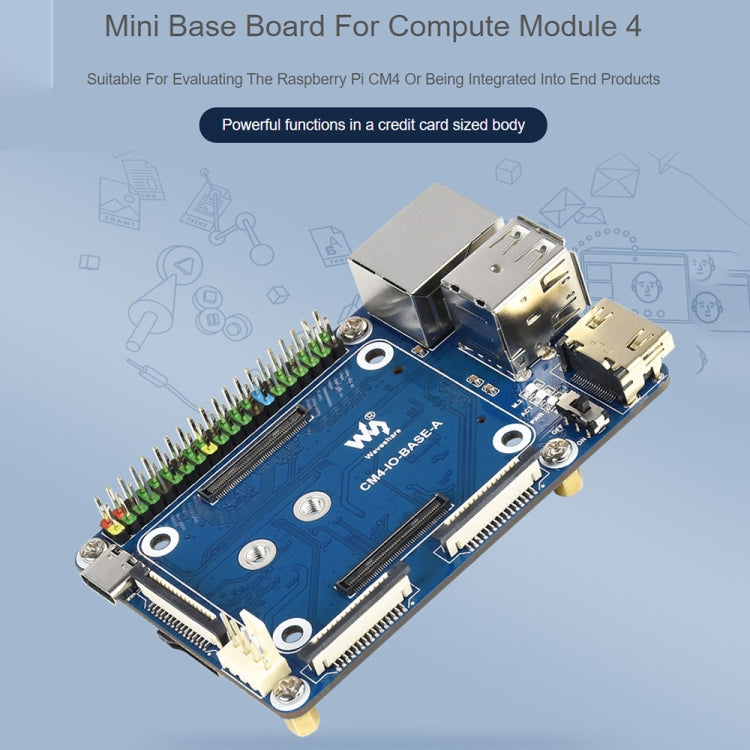

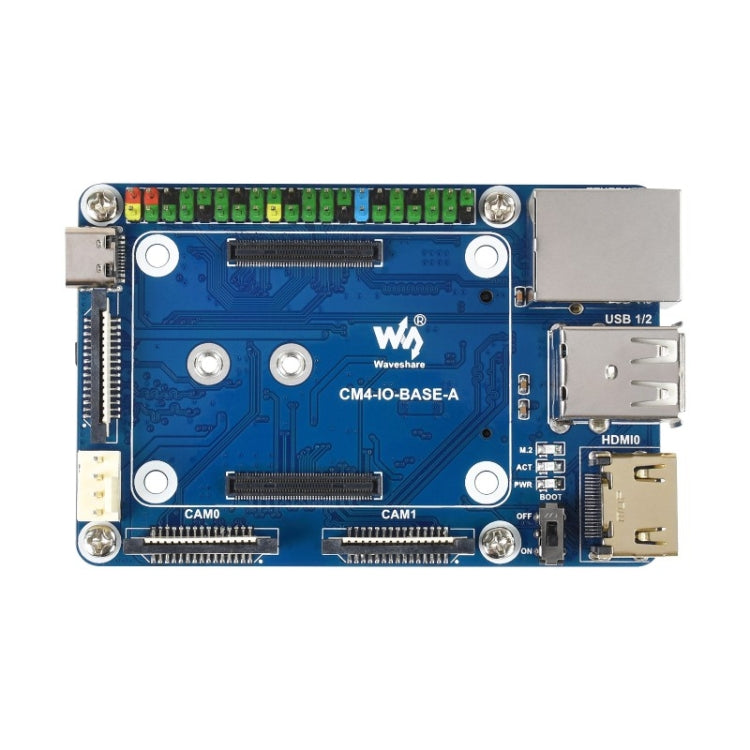

Waveshare Mini Base Board A for Raspberry Pi Compute Module 4

Name: Waveshare Mini Base Board A for Raspberry Pi Compute Module 4
Brand: WAVESHARE
SKU: DIY0193
Availability: InStock

$36.00

Sale Sold out

In Stock - Ships in 1-3 Days

Estimated delivery:

Free Shipping

30-Day Returns

1-Year Warranty

Shipping Information

FREE SHIPPING to UK & 40+ countries. Fully insured.

Delivery: Estimated times shown at checkout based on your location (typically 6-13 days total including 1-3 days handling)

No hidden fees on orders under £135 (orders over £135 may have import duties)

Ships from China via tracked DDP service. Order by 12 AM London time for next-day dispatch.

Full shipping policy →

30-Day Money-Back Guarantee

Return unused items within 30 days (you pay return shipping). Faulty items covered at no cost to you.

Full policy →

Right Part Guarantee

Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.

Hassle-Free Returns

Start your return online in seconds. No forms, no hassle.

Return portal →.

Trusted by 80,000+ DIY & repair professionals

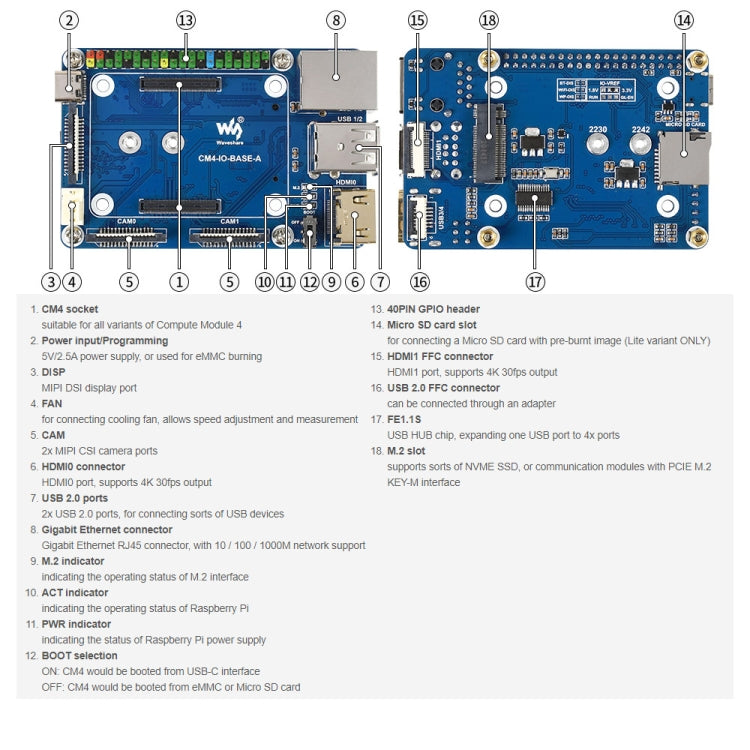

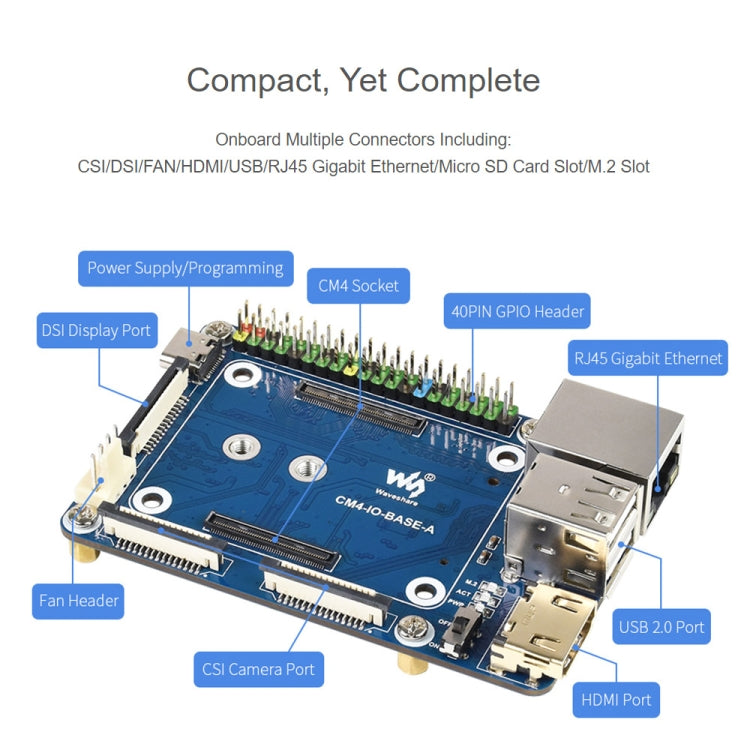

1. USB:
- USB 2.0 x 2
- USB 2.0 x 2 (via FFC connector)

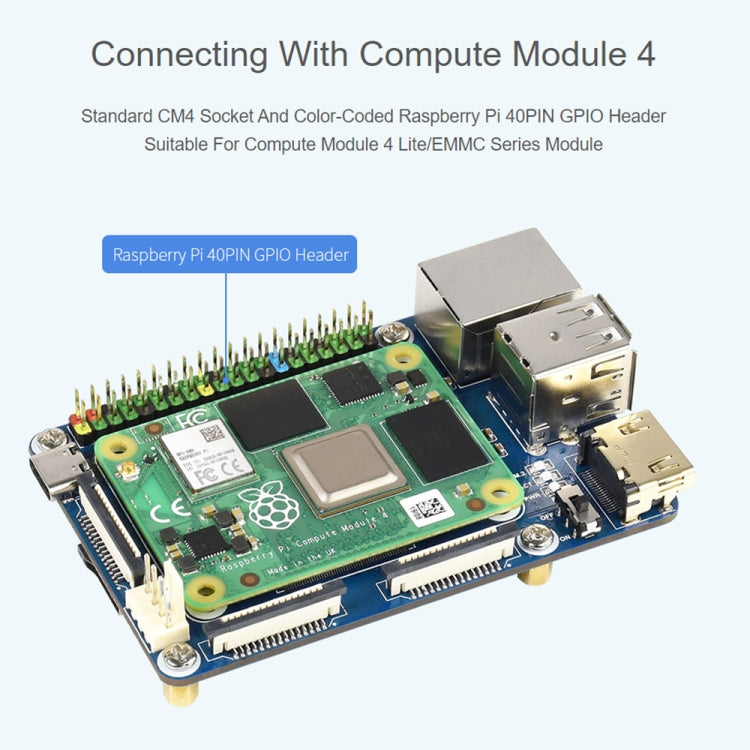

2. GPIO: Raspberry Pi 40 PIN GPIO x 1

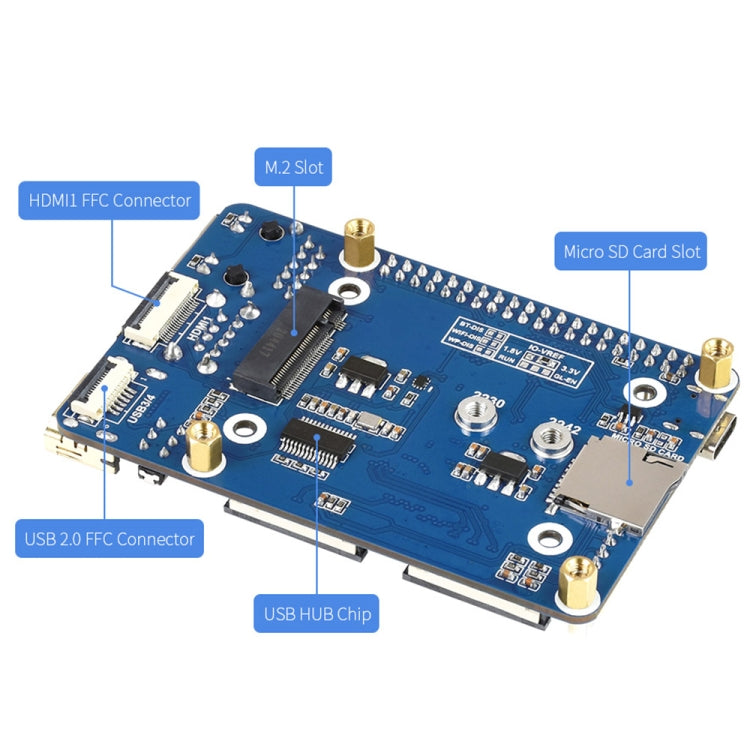

3. Header: M.2 slot x 1
4. HD media interface: HDMI x 2, 1x via FFC connector, support 4K 30fps output
5. DSI display: MIPI DSI x 1 (15pin 1.0mm FPC)
6. CSI camera: MIPI CSI-2 x 2 (15pin 1.0mm FPC)
7. Power input: 5V
8. FAN: 5V / 12V (no fan control)
9. RJ45 Ethernet: Gigabit Ethernet

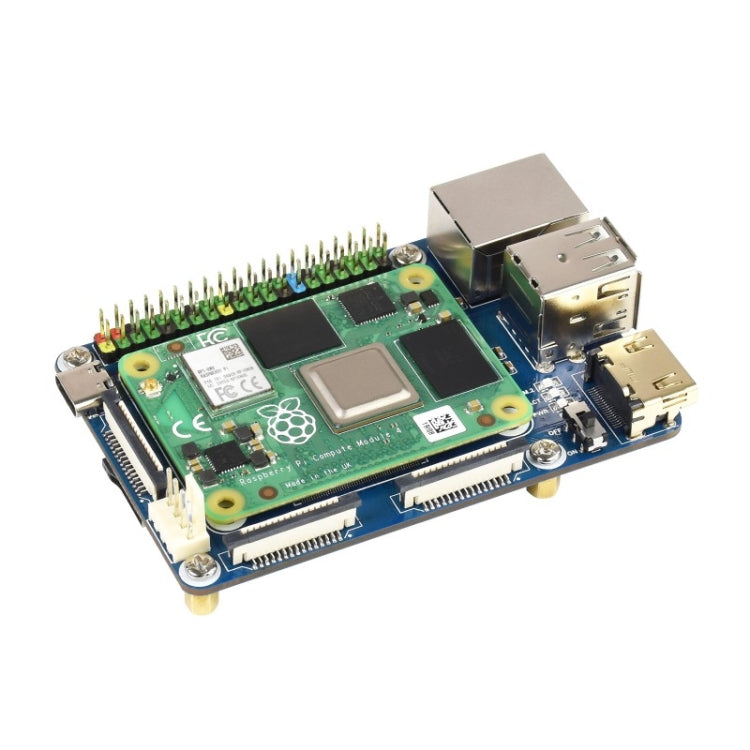

10. CM4 slot: Suitable for all variants of Compute Module 4
11. SD card slot: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants

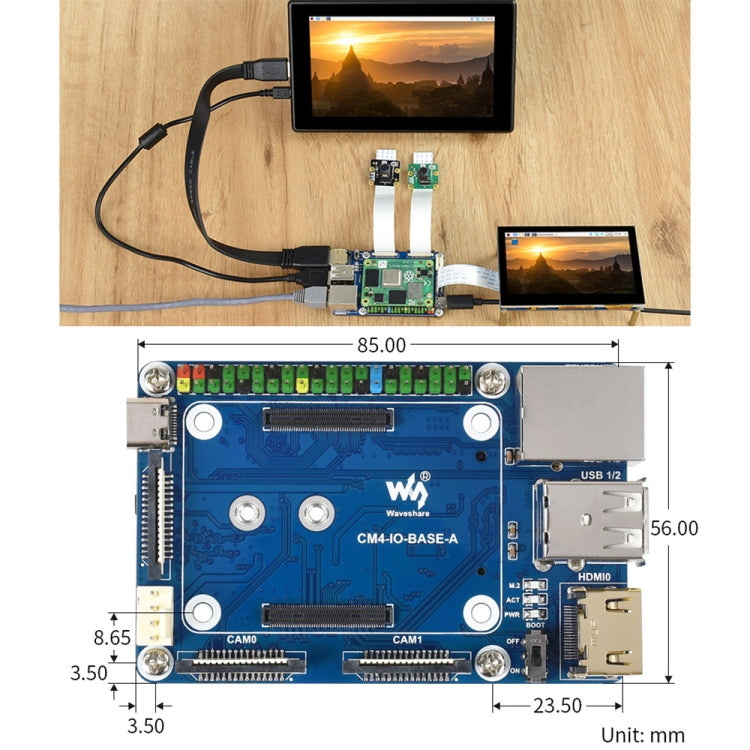

12. Size: 85.0 x 56.0mm
