Waveshare General 1.5 inch 128x128 16-bit High Color RGB OLED Display Module
Waveshare General 1.5 inch 128x128 16-bit High Color RGB OLED Display Module
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
Overview

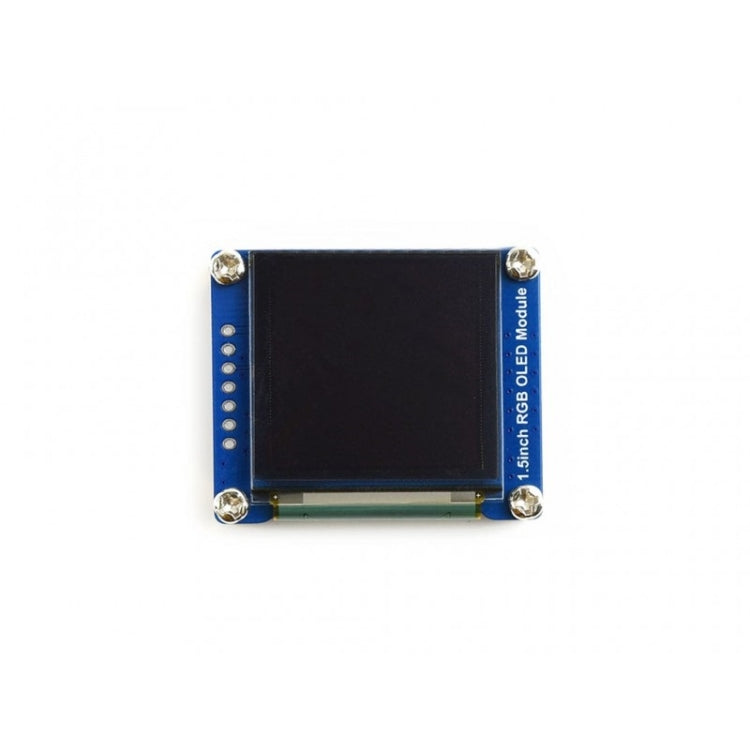

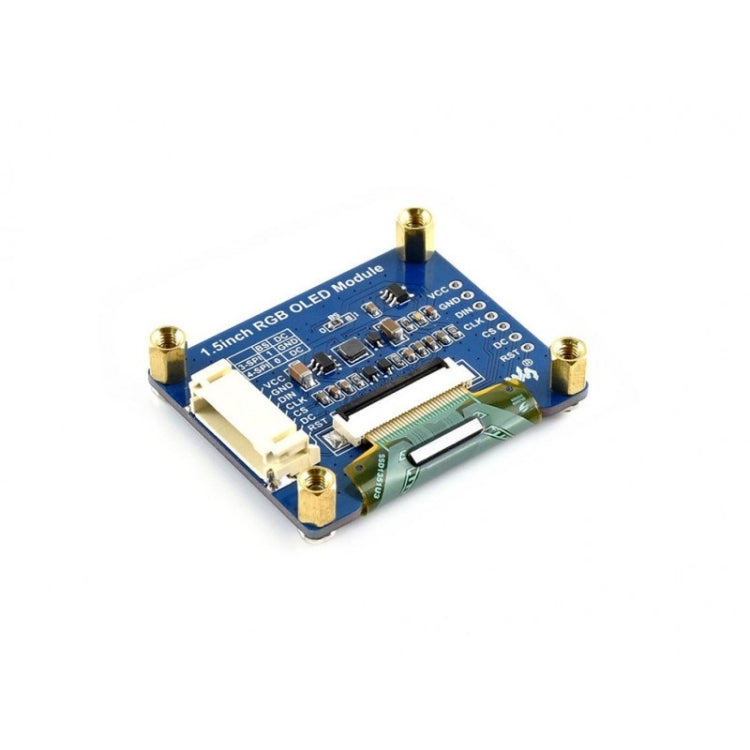

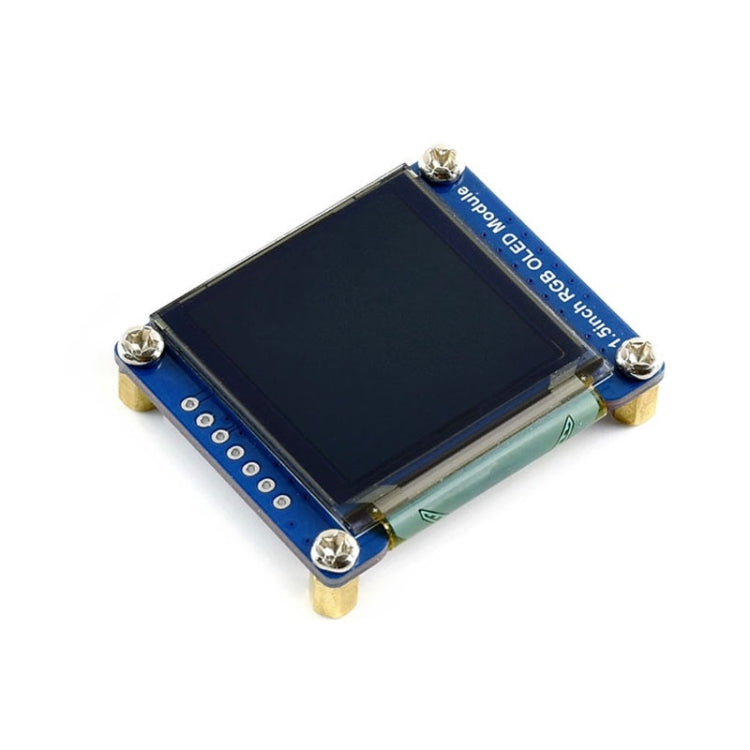

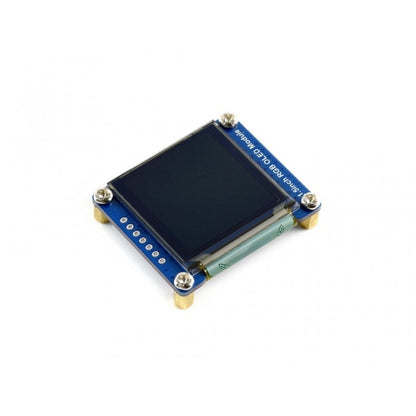

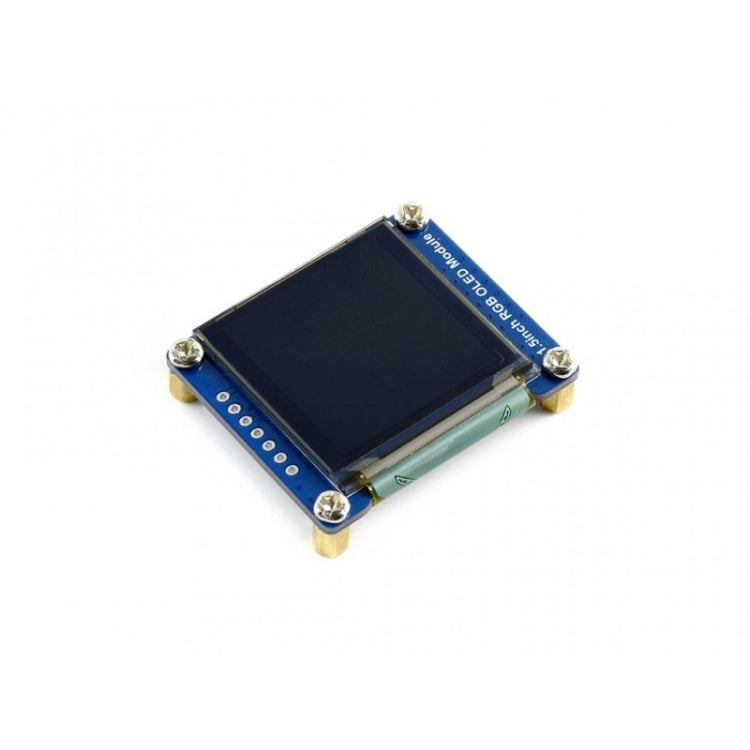

This is a general RGB OLED display Module, 1.5inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interface.
Features

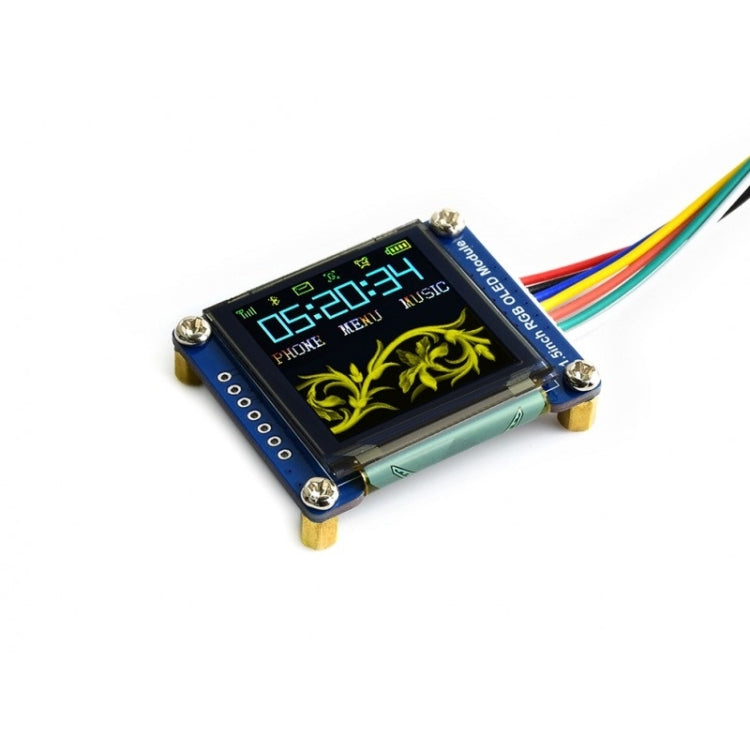

1. 128x128 high resolution, 65K colors, clearly displays colorful images
2. Support 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor
3. Come with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
1. Driver: SSD1351
2. Interface: 4-wire SPI, 3-wire SPI
3. Display color: RGB, 65K colors
4. Resolution: 128x128
5. Viewing angle: >160 degree
6. Operating voltage: 3.3V / 5V

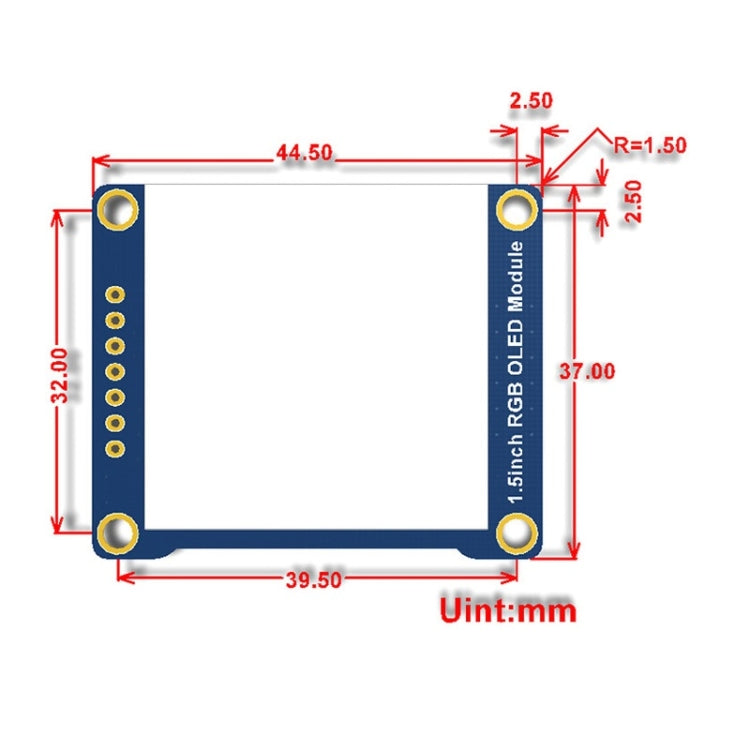

7. Dimension: 44.5 x 37 (mm)
Package Contents
1. 1.5 inch RGB OLED Module x1
2. PH2.0 7Pin x1
