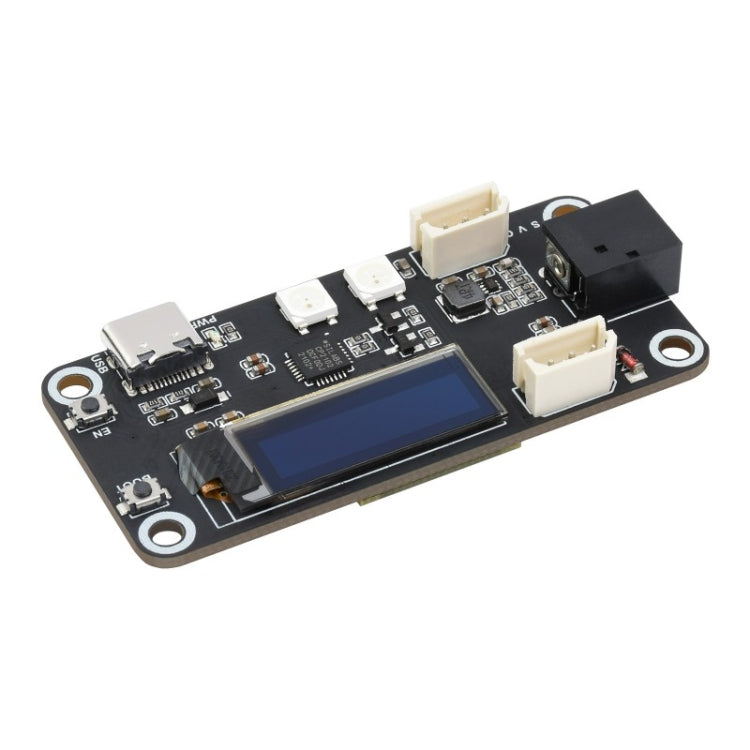

Waveshare ESP32 Servo Driver Expansion Board, Built-In WiFi and BT
Waveshare ESP32 Servo Driver Expansion Board, Built-In WiFi and BT
No reviews
Regular price
$30.00
Regular price
Sale price
$30.00
Unit price
/
per
FREE DELIVERY on all orders.
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Ends today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FRRE SHIPPING on all UK orders. Fully Insured.
Handling time 1 - 3 working days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time 5 - 10 working days.
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If not, our 30-day return policy has you covered.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Portal.

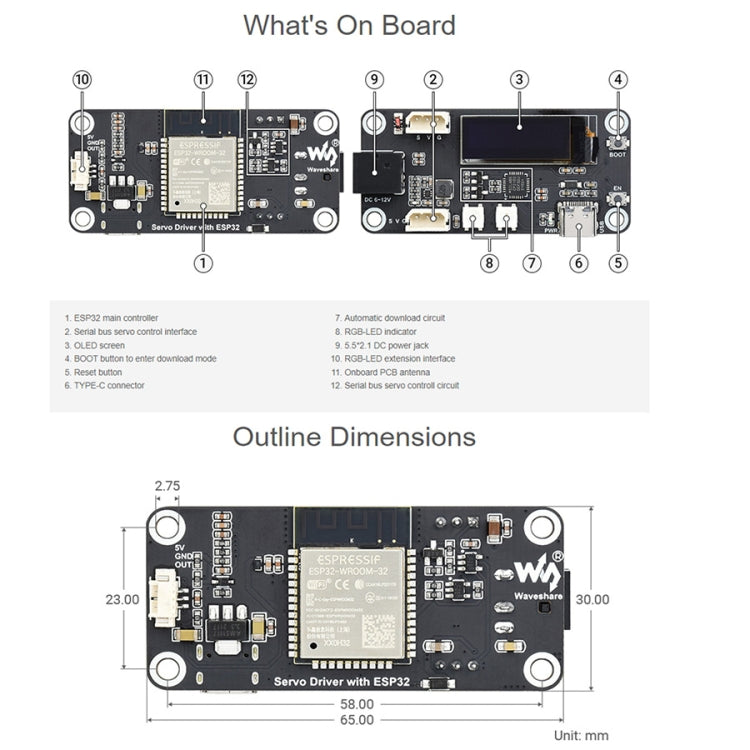

Features
1. Allows controlling up to 253 SC, ST series serial bus servos at the same time (adequate power supply required)
2. Wide range voltage input 6-12V (the input voltage and the servo voltage must be matched)
3. Built-in WiFi and Bluetooth, as well as ESP-NOW support, for remote control and servo debugging
4. Automatic download circuit for easy uploading programs
5. Open source web application and various robot structures
6. Compact size and space saving, suitable for integration into sorts of space-limited projects
Specifications
1. Power supply voltage: DC 6-12V
2. Power Connector: 5.5 x 2.1mm DC
3. Download interface: Type-C
4. Controller: ESP32
5. Control interface: UART
6. Dimensions: 30 x 65mm
7. Mounting hole size: 2.75mm
8. Mounting hole spacing: 23 x 58mm
Package List
1. Servo Driver with ESP32 x 1
2. Screws pack x 1
1. Allows controlling up to 253 SC, ST series serial bus servos at the same time (adequate power supply required)
2. Wide range voltage input 6-12V (the input voltage and the servo voltage must be matched)
3. Built-in WiFi and Bluetooth, as well as ESP-NOW support, for remote control and servo debugging
4. Automatic download circuit for easy uploading programs
5. Open source web application and various robot structures
6. Compact size and space saving, suitable for integration into sorts of space-limited projects
Specifications
1. Power supply voltage: DC 6-12V
2. Power Connector: 5.5 x 2.1mm DC
3. Download interface: Type-C
4. Controller: ESP32
5. Control interface: UART
6. Dimensions: 30 x 65mm
7. Mounting hole size: 2.75mm
8. Mounting hole spacing: 23 x 58mm
Package List
1. Servo Driver with ESP32 x 1
2. Screws pack x 1
