• Product type: Mini PC Accessories • Brand: WAVESHARE • Compatibility: ESP32-S3-RS485-CAN • Material: Durable construction • Key feature: Multiple protection circuits • Color/Variant: N/A • Intended use: Everyday use • Category: Consumer Electronics

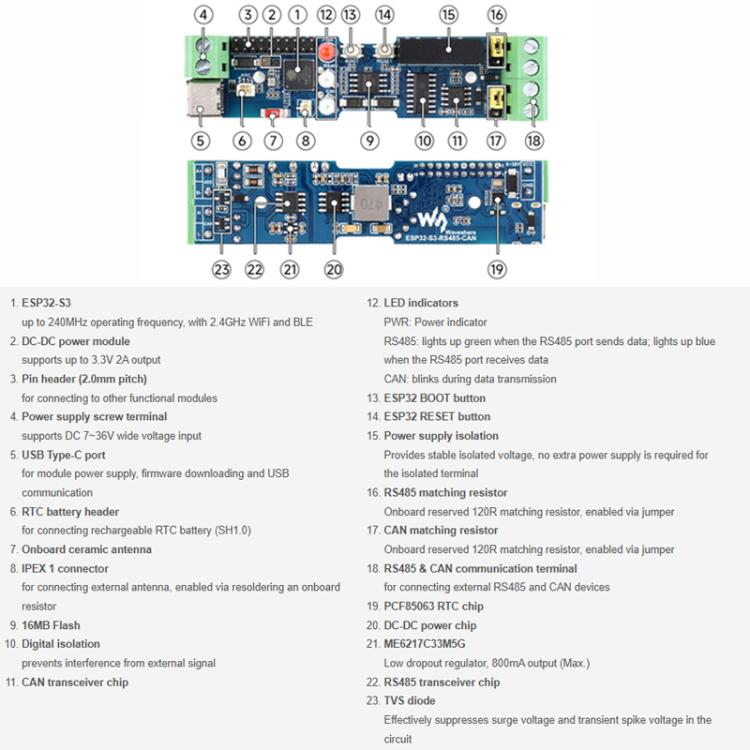

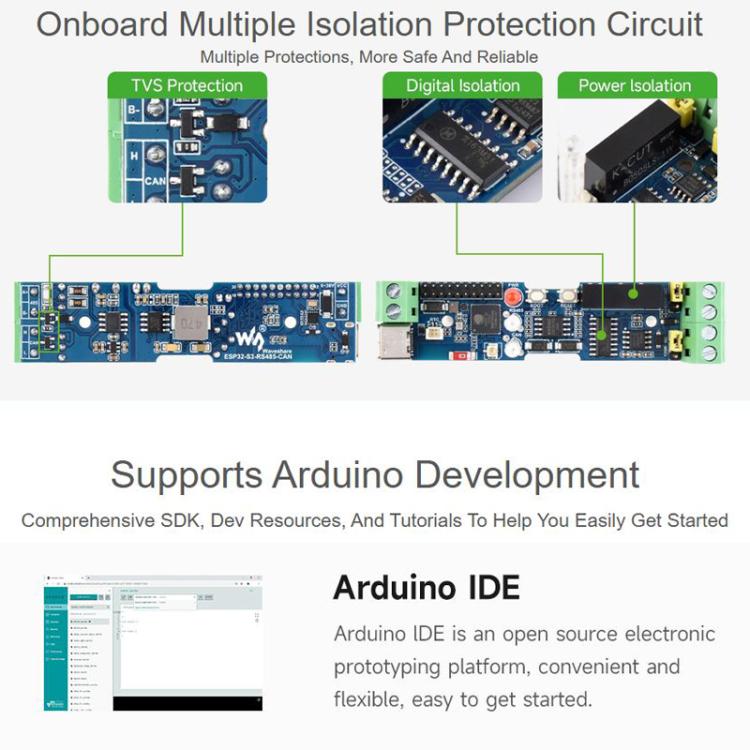

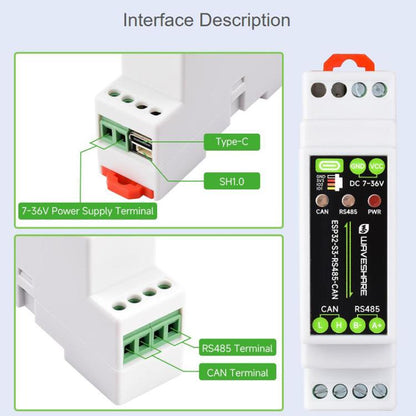

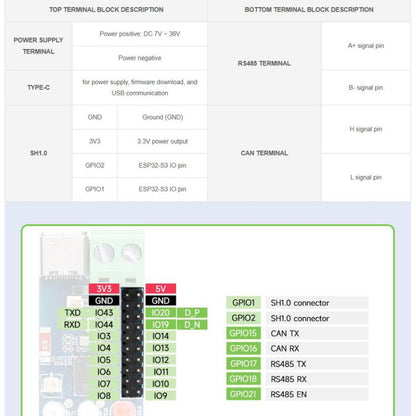

1. Microcontroller: ESP32-S3 (default is ESP32-S3R8 chip) 2. Wireless communication: 2.4GHz Wi-Fi (802.11 b/g/n), Bluetooth 5 (LE) 3. USB interface: - Interface type: Type-C - Power supply voltage: 5V - Functions: power supply for the device, USB communication, firmware download, etc. 4. Isolated RS485 communication interface: - Interface type: terminal block - Direction control: automatically controlled by the main control hardware flow setting - Interface protection: provides TVS diode protection, surge and static protection - Matching resistance: default NC, reserved 120R matching resistor, can be enabled by jumper cap 5. Isolated CAN communication interface: - Interface type: terminal block - Direction control: hardware automatically determines and controls the data transmission direction - Interface protection: provides TVS diode protection, surge and static protection - Matching resistance: default NC, reserved 120R matching resistor, can be enabled by jumper cap 6. Indicator lights: - PWR: power indicator light, connected to USB, turns red when voltage is detected - RS485: RS485 indicator light: Green when data is sent from the RS485 interface, blue when data is sent back from the RS485 interface - CAN: CAN indicator light, flashes when data communication exists at the CAN interface 7. Terminal power supply range: 7V - 36V 8. Shell: rail-mounted protective shell 9. Size: about 9.16 x 2.33 x 5.87cm
Verified Compatible
Guaranteed fit for device in the title. Wrong part? Full refund including shipping.
