• Product type: Mini PC Accessories • Brand: WAVESHARE • Compatibility: ESP32-S3 • Material: Durable construction • Key feature: Industrial control capabilities • Color/Variant: Not specified • Intended use: Everyday use • Category: Consumer Electronics

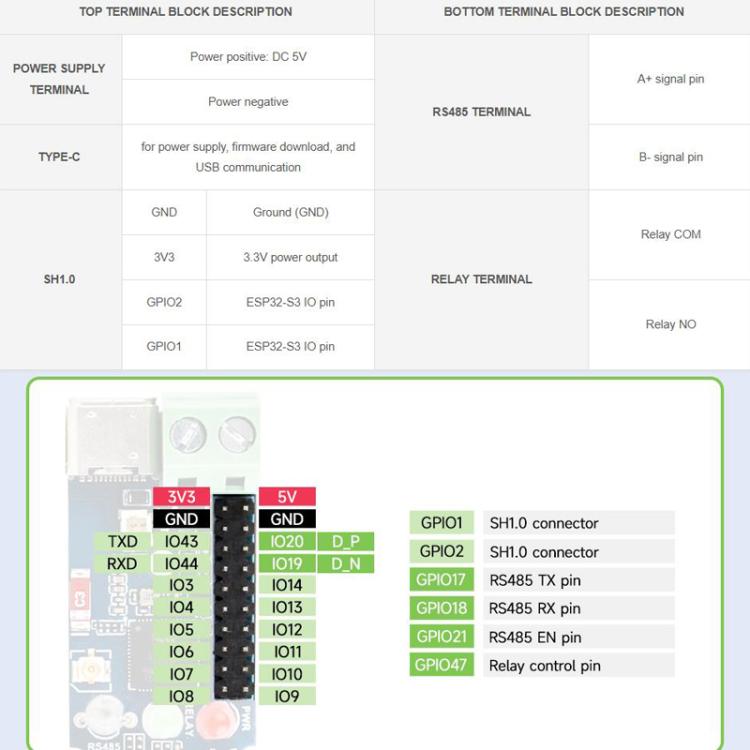

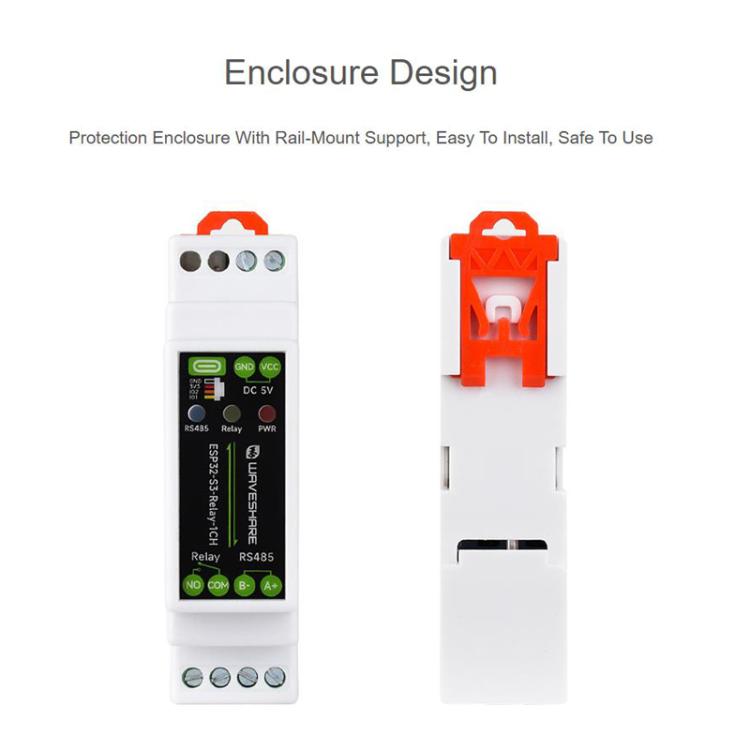

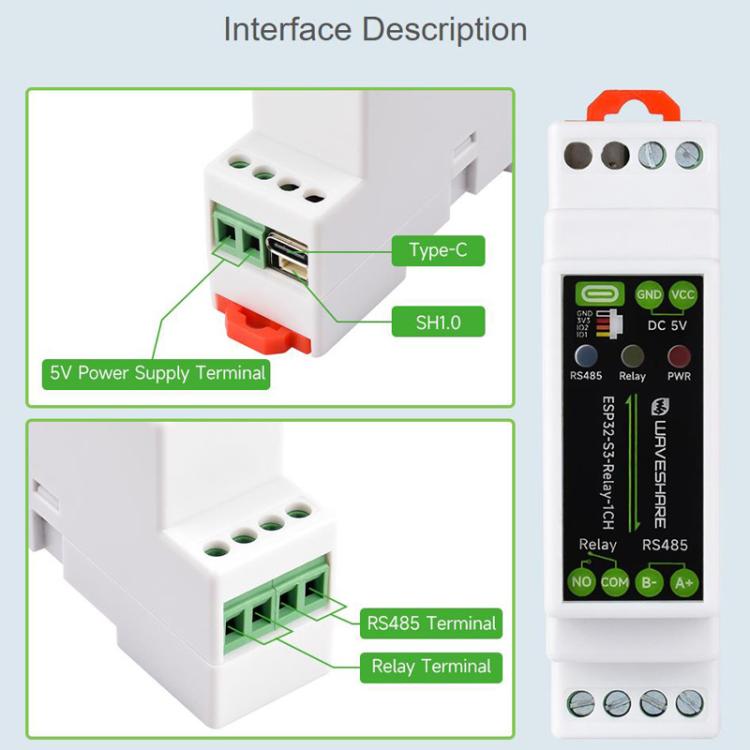

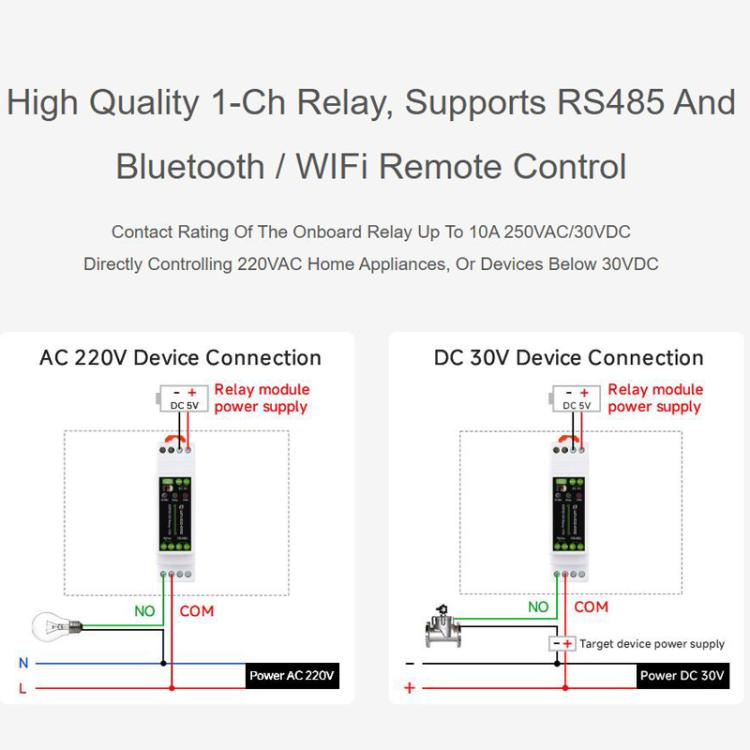

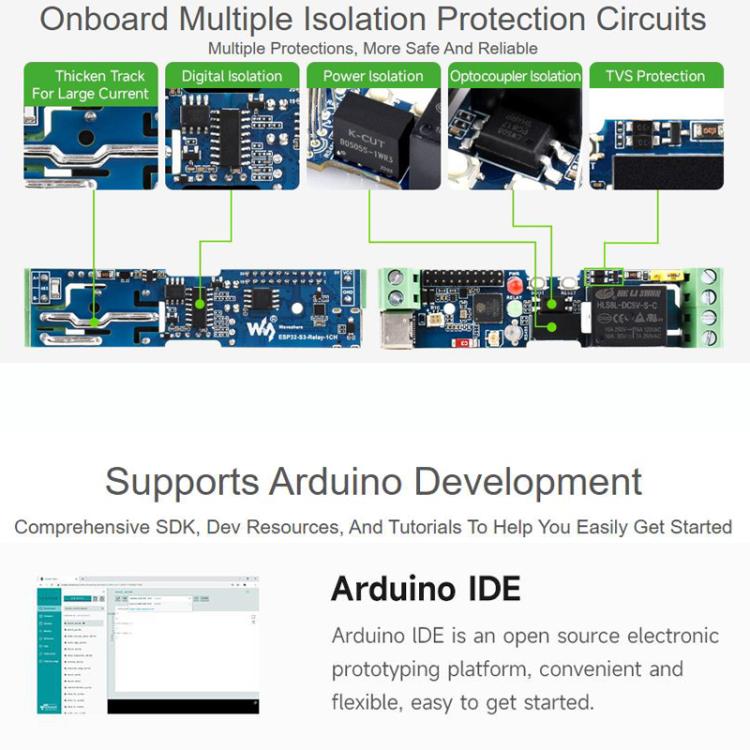

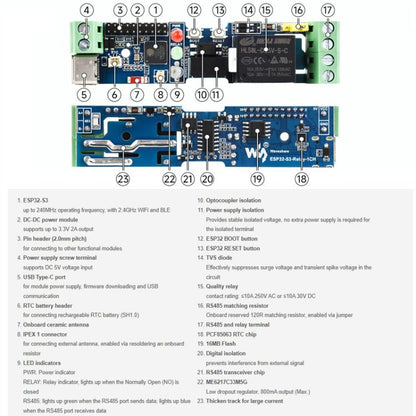

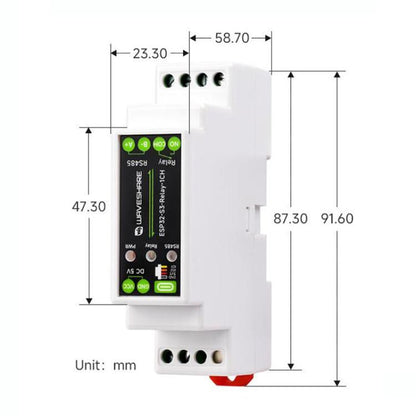

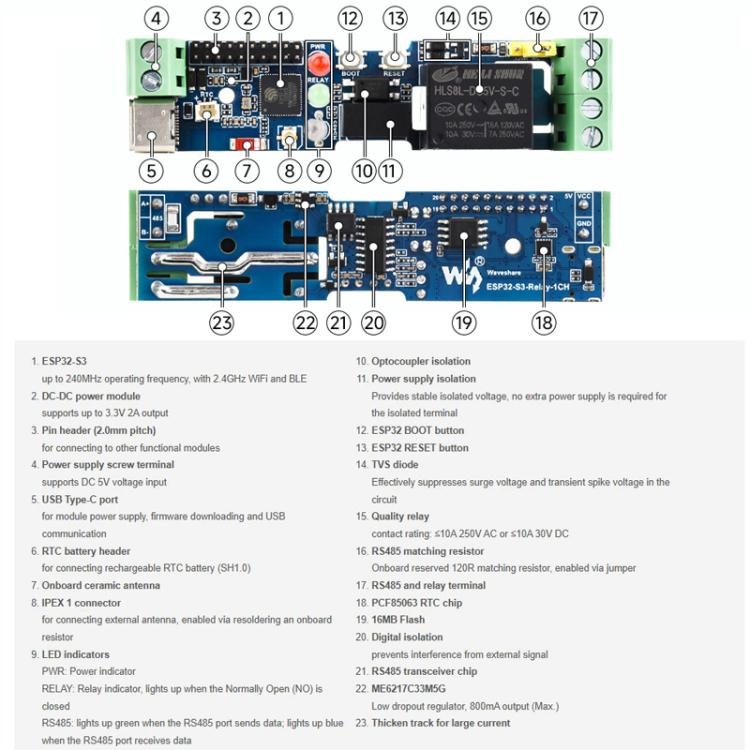

1. Microcontroller: ESP32-S3 (default is ESP32-S3R8 chip) 2. Wireless communication: 2.4GHz Wi-Fi (802.11 b/g/n), Bluetooth 5 (LE) 3. USB interface:- Interface type: Type-C- Supply voltage: 5V- Functions: power supply for the device, USB communication, firmware download, etc. 4. Isolated RS485:- Interface type: terminal block- Direction control: automatically controlled through the main control hardware flow- Interface protection: provides TVS diode protection, surge and static protection- Matching resistance: default NC, reserved 120R matching resistor, can be enabled by jumper cap 5. Relay:- Allowed load connection: less than or equal to 10A 250V AC or less than or equal to 10A 30V DC- Relay channels: 1 channel- Contact type: normally open- Isolation type: optocoupler isolation 6. Indicator lights:- PWR: power indicator light, turns on red when USB is connected and voltage is detected- RS485: green light is on when data is sent from the RS485 interface, blue light is on when data is sent back from the RS485 interface- Relay: relay indicator light, turns on when the normally closed contact is closed 7. Terminal power supply range: 5V 8. Shell: rail-mounted protective shell 9. Size: about 9.16 x 2.33 x 5.87 cm
