Waveshare ESP32-C6 1.54inch E-Paper AIoT Development Board 200 × 200 Resolution Supports Wi-Fi, BLE 5 No Battery
Waveshare ESP32-C6 1.54inch E-Paper AIoT Development Board 200 × 200 Resolution Supports Wi-Fi, BLE 5 No Battery
SKU: TBD0606942401
Regular price
$40.00
Regular price
Sale price
$40.00
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Quantity
Couldn't load pickup availability
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.

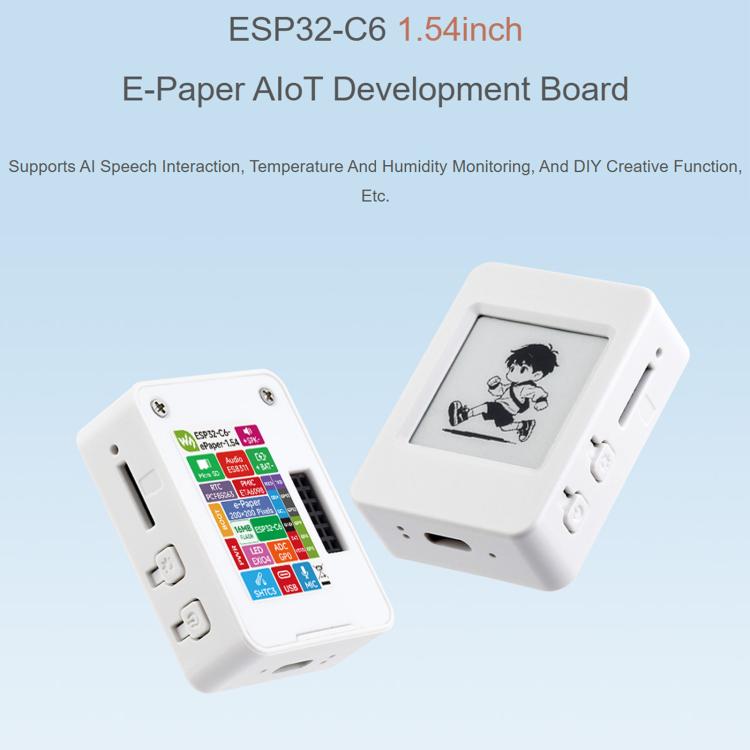

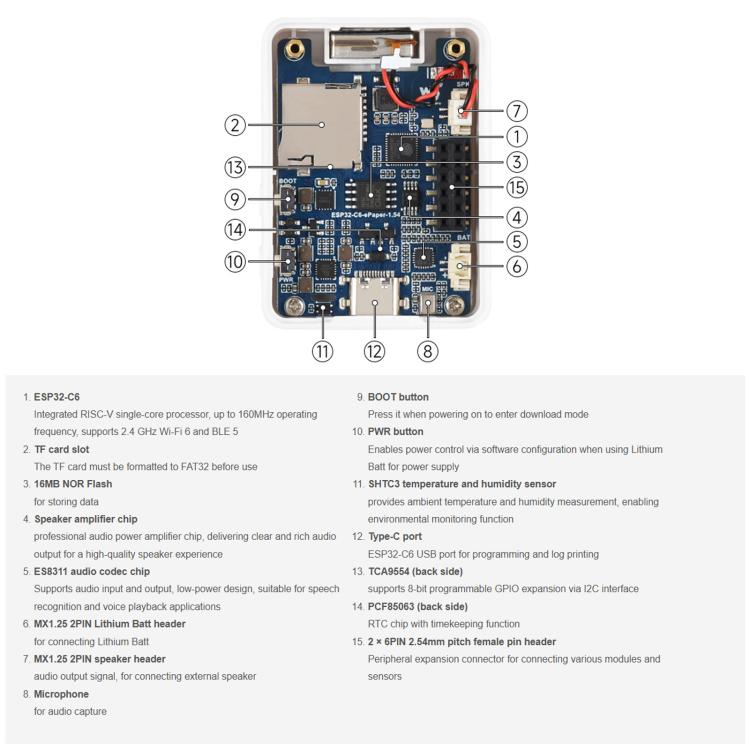

1. The ESP32-C6-ePaper-1.54 is an e-Paper AIoT development board, equipped with ESP32-C6 microcontroller, which supports Wi-Fi and BLE dual-mode communication. Onboard 1.54inch e-paper display, features ultra-low power consumption and ambient light readability, suitable for portable devices and long-Batt-life scenarios. Integrated with an RTC chip, SHTC3 temperature and humidity sensor, TF card slot, low-power audio codec chip circuit, and Lithium Batt recharge management circuit. Reserved interfaces including USB, UART, I2C, and GPIO for easy functionality expansion and sensor connectivity, providing a flexible and reliable development platform for IoT terminals, electronic tags, portable displays, and other applications.
2. Equipped with high-performance ESP32-C6 32-bit RISC-V processor, up to 160MHz main frequency
3. Supports Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
4. Built-in 512KB HP Static RAM, 16KB LP Static RAM, 320KB ROM, and external 16MB Flash memory

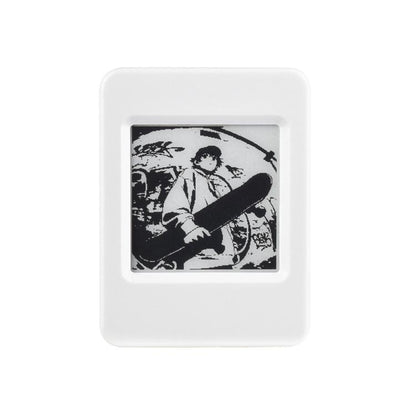

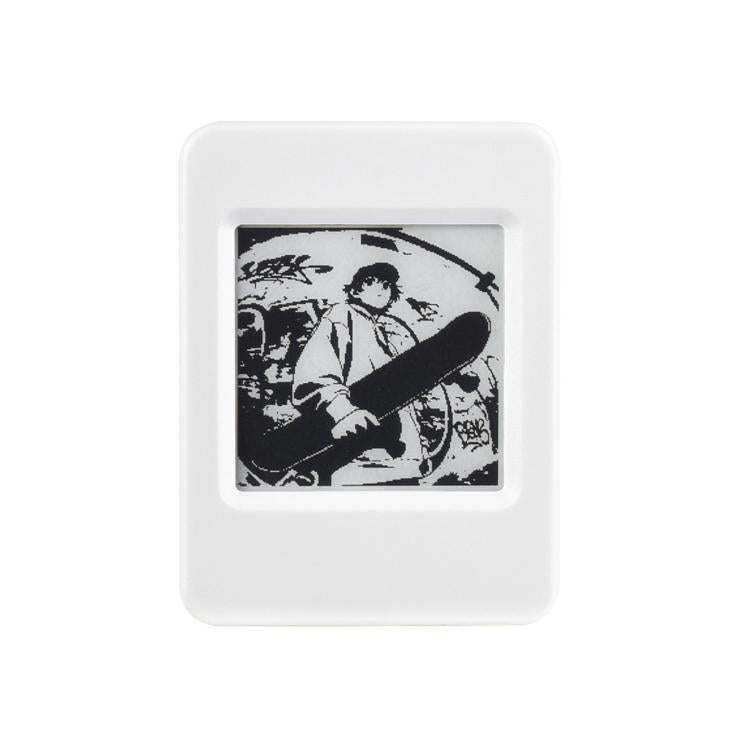

5. Onboard 1.54inch e-paper display, 200 × 200 resolution, features high contrast and wide viewing angle

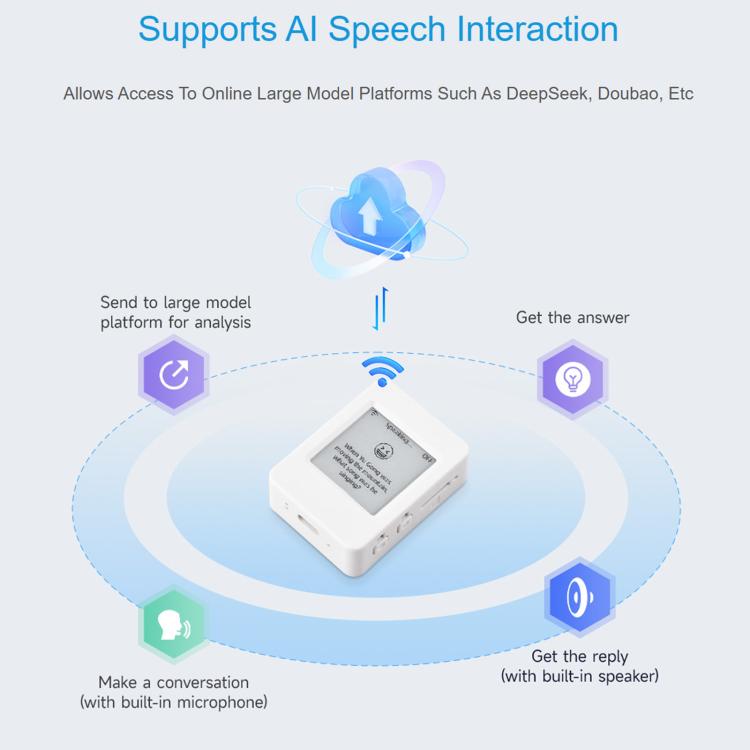

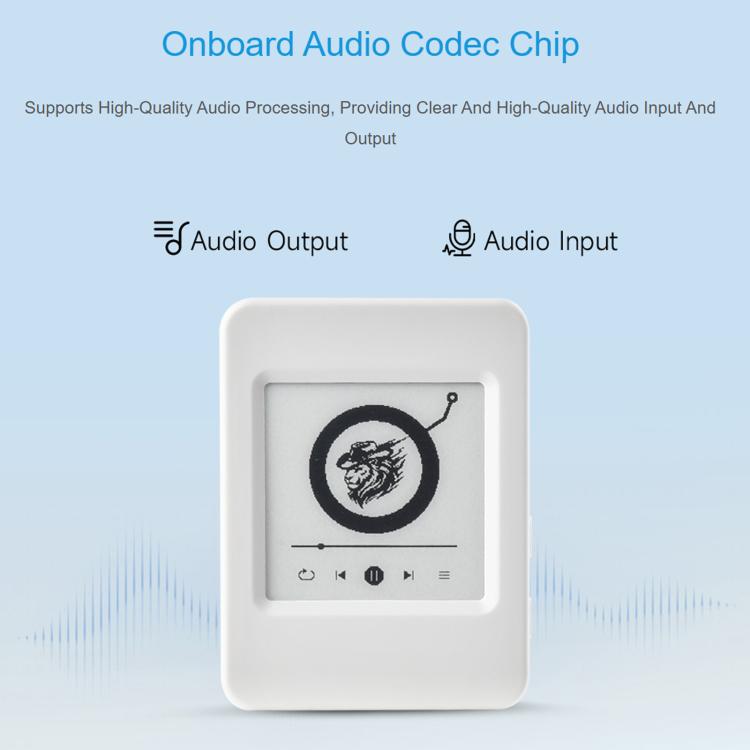

6. Onboard audio codec chip, supports voice capture and playback, enabling AI voice interaction applications
7. Onboard PCF85063 RTC chip and SHTC3 temperature & humidity sensor for accurate RTC management and environmental monitoring
8. Onboard TF card slot for external storage of images or files
9. Onboard programmable PWR and BOOT side buttons for customized function development
10. Reserved 2 × 6 2.54mm pitch pin header for convenient external expansion
Specifications:
1. Display Panel: E-Ink display
2. Display Size: 1.54 inches
3. Resolution: 200 × 200
4. Grayscale Levels: 2
5. Communication Interface: SPI
6. Full Refresh Time: 2s
7. Display Colors: Black, White
8. Partial Refresh Time: 0.3s
9. Viewing Angle: Greater than 170-degree
10. Display Mode: Reflective
