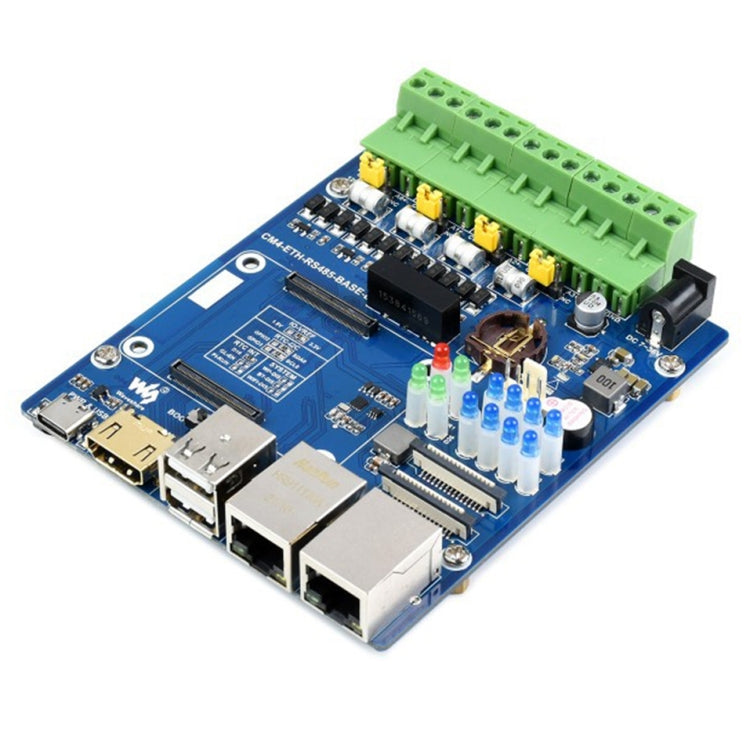

Waveshare Dual ETH Quad RS485 Base Board B for Raspberry Pi CM4, Gigabit Ethernet

Name: Waveshare Dual ETH Quad RS485 Base Board B for Raspberry Pi CM4, Gigabit Ethernet
Brand: WAVESHARE
SKU: DIY0249
Availability: InStock

$73.00

Sale Sold out

In Stock - Ships in 1-3 Days

Estimated delivery:

Free Shipping

30-Day Returns

1-Year Warranty

Shipping Information

FREE SHIPPING to UK & 40+ countries. Fully insured.

Delivery: Estimated times shown at checkout based on your location (typically 6-13 days total including 1-3 days handling)

No hidden fees on orders under £135 (orders over £135 may have import duties)

Ships from China via tracked DDP service. Order by 12 AM London time for next-day dispatch.

Full shipping policy →

30-Day Money-Back Guarantee

Return unused items within 30 days (you pay return shipping). Faulty items covered at no cost to you.

Full policy →

Right Part Guarantee

Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.

Hassle-Free Returns

Start your return online in seconds. No forms, no hassle.

Return portal →.

Trusted by 80,000+ DIY & repair professionals

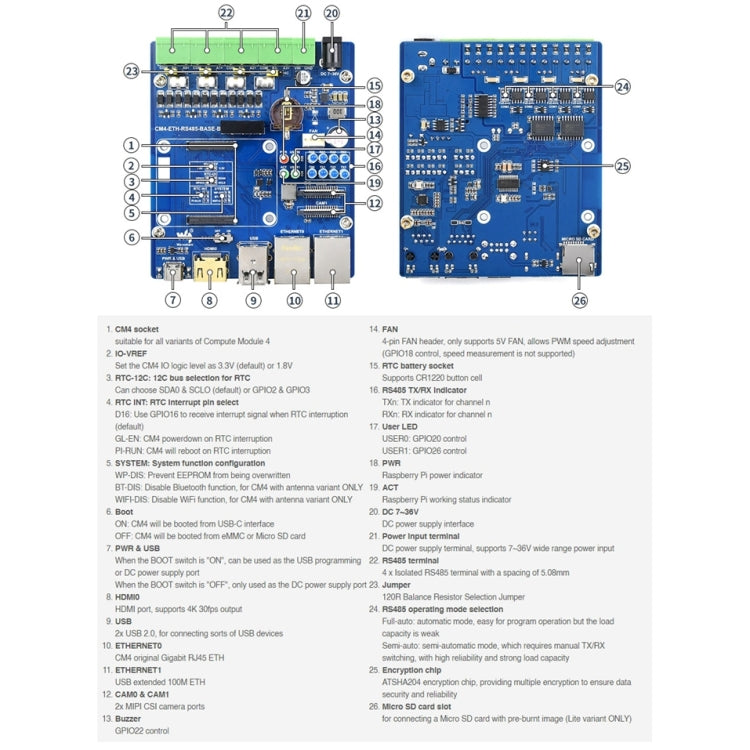

1. CM4 socket: Suitable for all variants of Compute Module 4
2. Networking: Gigabit Ethernet RJ45 connector, 100M Ethernet RJ45 connector
3. Connetor: Isolated RS485 x 4, Power screw terminal x 1
4. USB: USB 2.0 Type A x 2
5. Cacmera: MIPI CSI-2 port x 2 (15pin 1.0mm FPC connector)
6. Video: HDMI port x 1, supports 4K 30fps output
7. RTC: Real-time clock with battery socket and ability to wake Compute Module 4
8. Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
9. Fan header: Allows speed adjustment, 5V
10. Indicator: Power indicator x 1, CM4 status indicator x 1, User LED x 2, RS485 communication indicator x 8
11. Power input: 7-36V
12. Dimension: 93.6 x 108.8mm
