Waveshare Compute Module IO Board with PoE Feature (Type B) for Raspberry Pi all Variants of CM4

Name: Waveshare Compute Module IO Board with PoE Feature (Type B) for Raspberry Pi all Variants of CM4
Brand: WAVESHARE
SKU: DIY0188
Availability: InStock

$64.00

Sale Sold out

In Stock - Ships in 1-3 Days

Estimated delivery:

Free Shipping

30-Day Returns

1-Year Warranty

Shipping Information

FREE SHIPPING to UK & 40+ countries. Fully insured.

Delivery: Estimated times shown at checkout based on your location (typically 6-13 days total including 1-3 days handling)

No hidden fees on orders under £135 (orders over £135 may have import duties)

Ships from China via tracked DDP service. Order by 12 AM London time for next-day dispatch.

Full shipping policy →

30-Day Money-Back Guarantee

Return unused items within 30 days (you pay return shipping). Faulty items covered at no cost to you.

Full policy →

Right Part Guarantee

Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.

Hassle-Free Returns

Start your return online in seconds. No forms, no hassle.

Return portal →.

Trusted by 80,000+ DIY & repair professionals

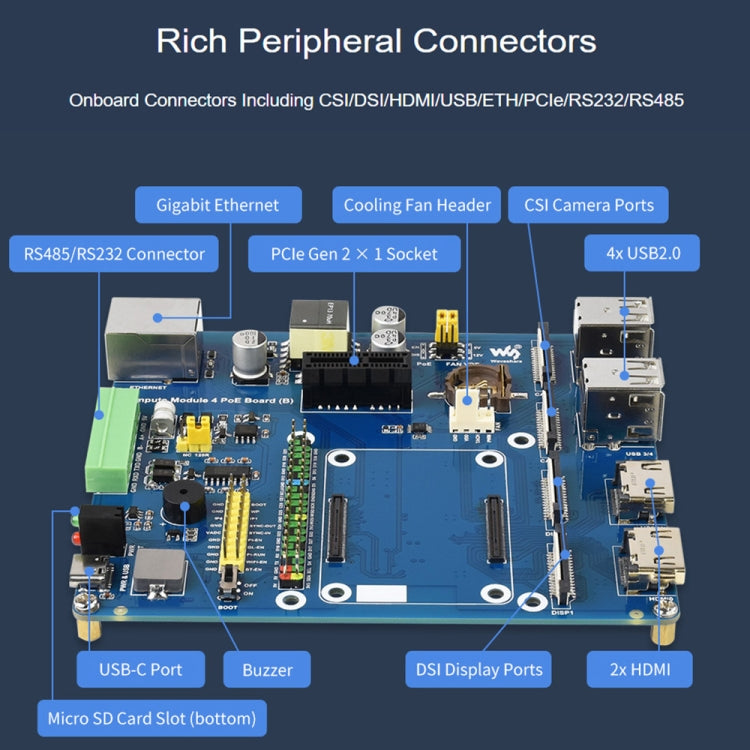

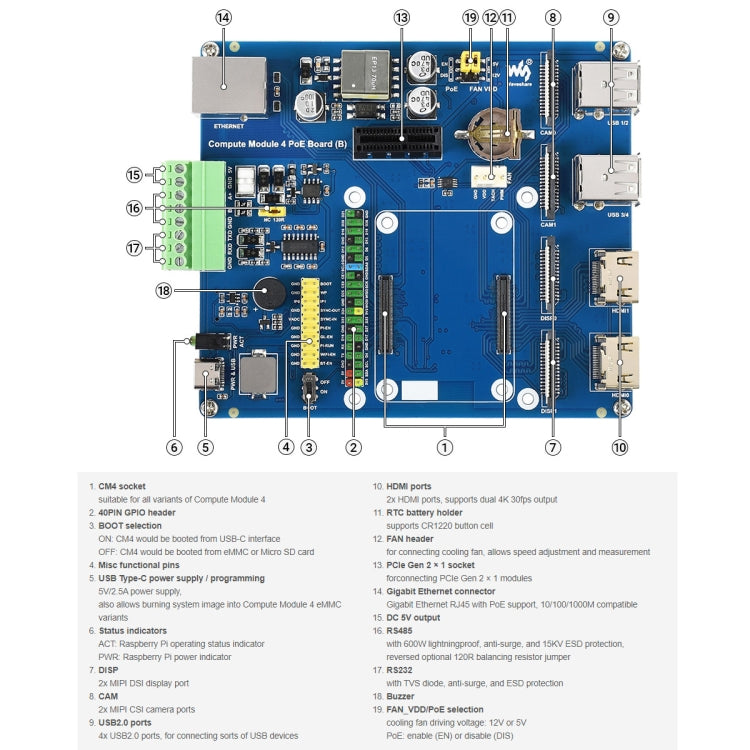

1. POE: Integrates 802.3af-compliant PoE circuit (5V/2.5A)
2. USB: USB 2.0 x 4
3. GPIO: Raspberry Pi 40 PIN GPIO x 1
4. Header:
- RS485 x 1
- RS232 x 1
- PCIe Gen 2 x 1
5. HD media interface: HDMI x 2, supports 4K 30fps output
6. DSI display: MIPI DSI x 2 (15pin 1.0mm FPC)
7. CSI camera: MIPI CSI-2 x 2 (15pin 1.0mm FPC)
8. Power input: 5V
9. FAN: 5V / 12V (Allows speed adjustment and measurement)
10. RTC: Real-time clock with battery socket and ability to wake Compute Module 4
11. RJ45 Ethernet: Gigabit Ethernet
12. CM4 slot: Suitable for all variants of Compute Module 4
13. SD card slot: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
14. Size: 124.50 x 108.80mm
