Waveshare Color Sensor 9520 Board Module
Waveshare Color Sensor 9520 Board Module
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.

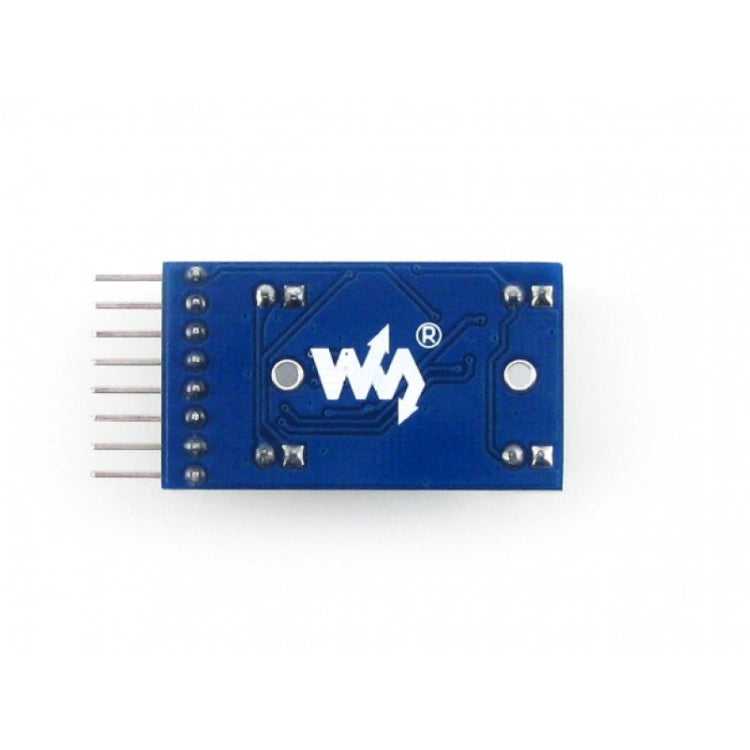

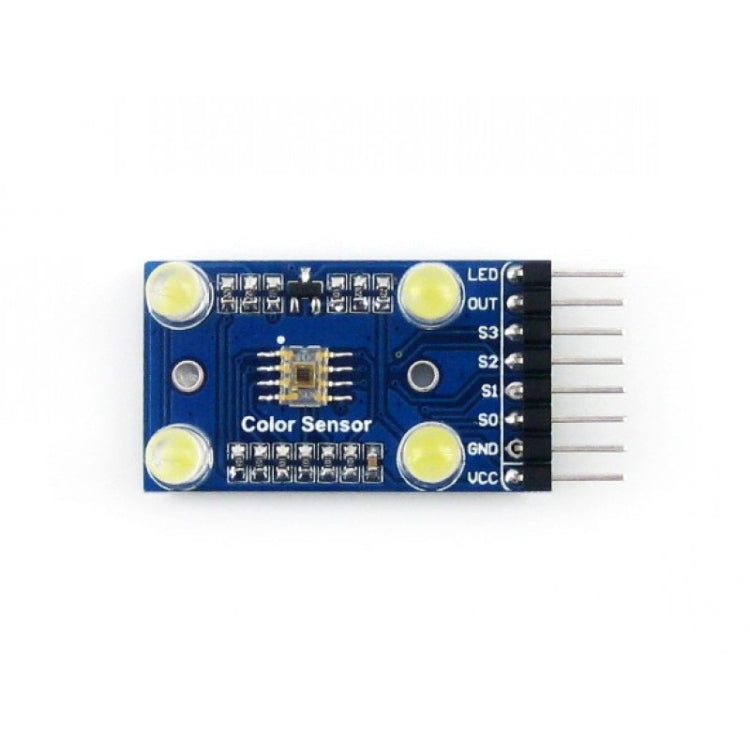

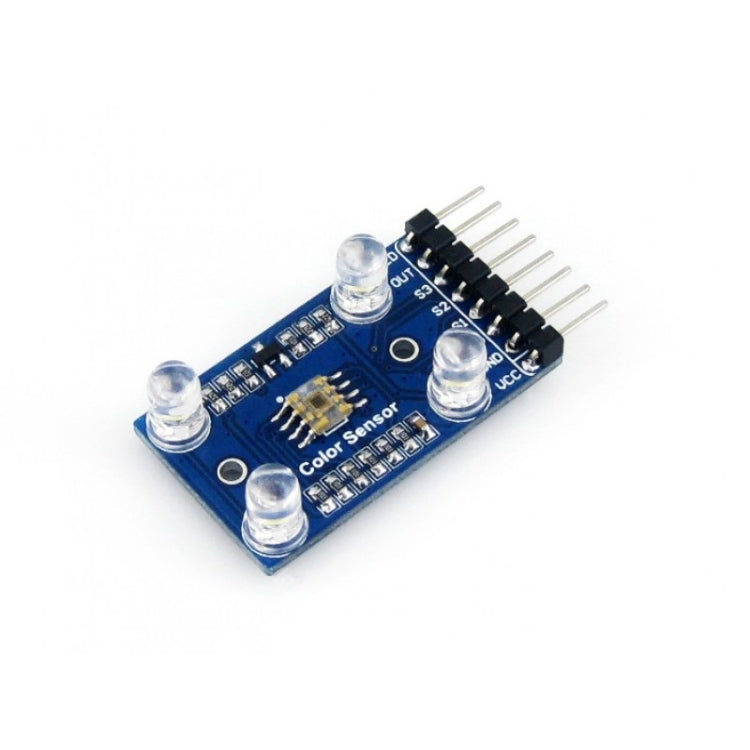

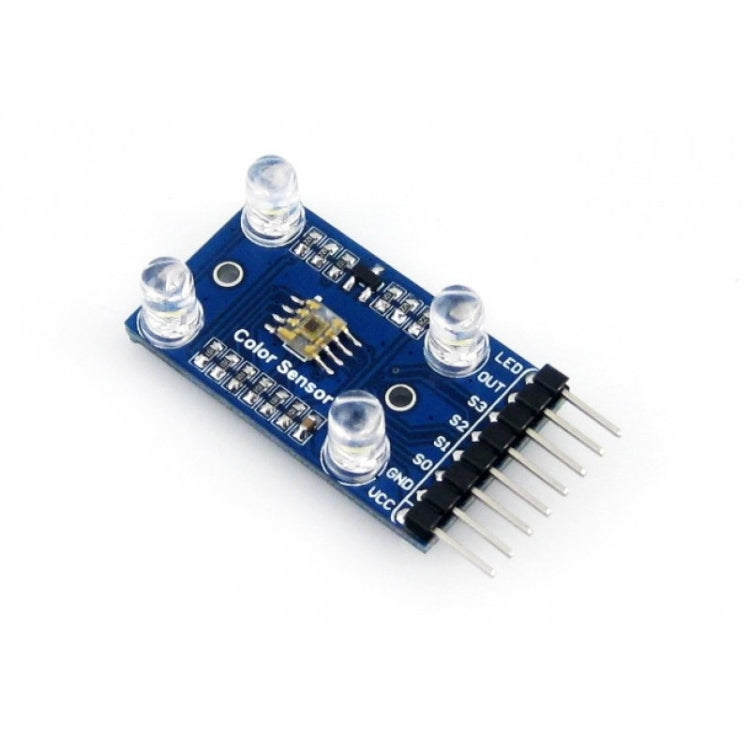

1. Sensor Chip: TCS3200 (RGB color detector)
2. Detects static color, the output is a square wave with frequency directly proportional to incident light intensity
3. Supports fill-light by onboard LEDs
Specifications
1. Power: 2.7V ~ 5.5V
2. Ideal detection distance: 10mm
3. Dimension: 36.0mm * 20.6mm
4. Mounting holes size: 2.0mm
Applications
1. Sorting by color
2. Ambient light sensing and calibration
3. Test strip reading
4. Color matching
How to Use

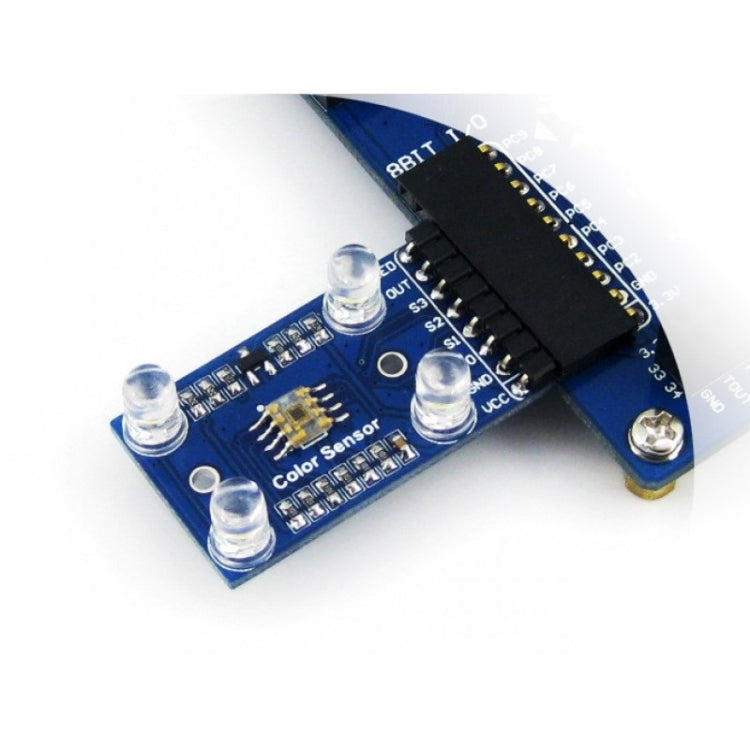

In the case of working with a MCU:
1. VCC: 2.7V ~ 5.5V
2. GND: Power supply ground
3. LED: MCU.IO (controlling the 4 white LEDs)
4. OUT: MCU.IO (RGB color output frequency)
5. S0/S1: MCU.IO (Output frequency scaling selection inputs)
6. S2/S3: MCU.IO (Photodiode type selection inputs)
7. S0/S1 selects the output frequency scaling factor, S2/S3 selects the color filter of red, green, blue, then OUT outputs a square wave with frequency proportional to the selected color intensity. The detected color can be determined by the ratio of the intensity of red, green and blue.
Note:
1. Avoids environment light noise
2. White balance is required when the first time using the module, reseting the module, or changing the light source
