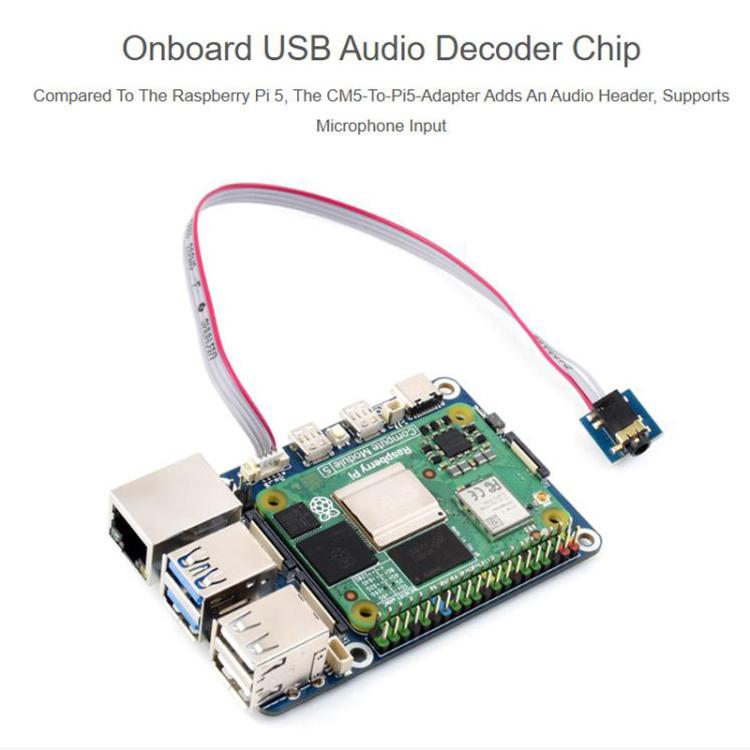

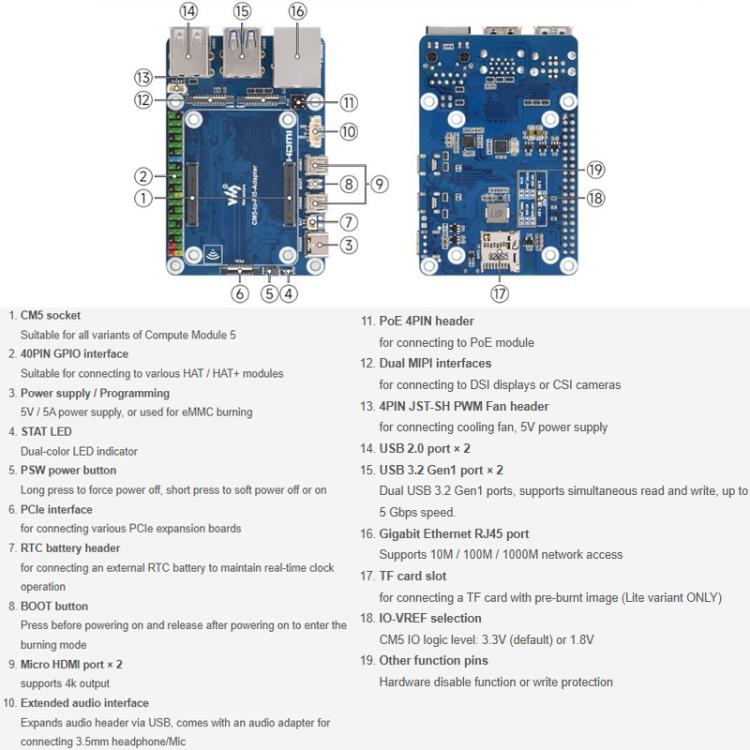

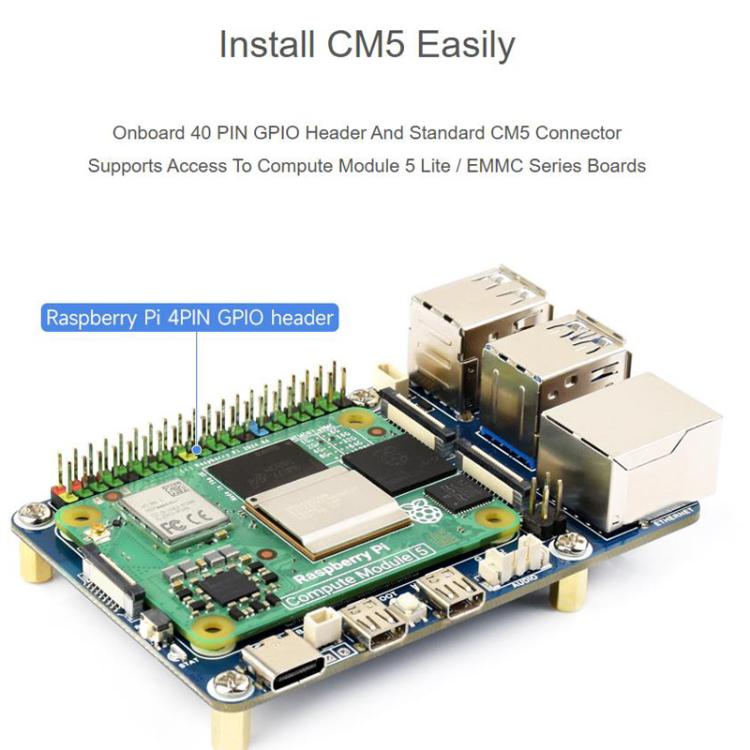

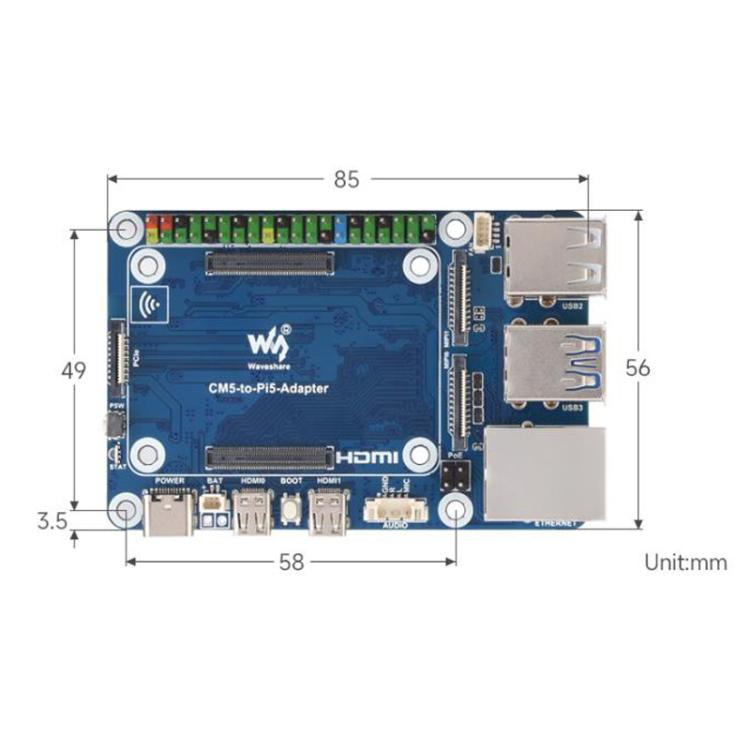

1. CM5 card slot: compatible with all versions of Compute Module 5 2. Networking: gigabit ethernet RJ45 port 3. Connectors: 16-pin PCIe (PCIe Gen2/3 x 1) Raspberry Pi 40-pin GPIO interface 4. USB: USB 3.2 Gen1 x 2; USB 2.0 x 2 5. MIPI: 4-lane MIPI interface × 2 (22-pin 0.5mm FFC connector) 6. Video: HDMI interface x 2, supporting dual 4K output 7. Audio: compatible with standard 3.5mm headphone jacks for audio input/output via accessory module 8. Storage: onboard Micro SD card slot (For CM5 versions without eMMC) 9. Fan Interface: 5V, 4-pin JST-SH PWM fan connector 10. Power Input: DC 5V 5A 11. Onboard 40-pin GPIO interface and standard CM5 connector, supporting Compute Module 5 Lite / eMMC series core boards 12. Onboard USB audio decoder chip, supports microphone connection 13. Size: about 8.5 x 5.6 cm
Package contents: - CM5-to-Pi5-Adapter x 1 - Audio-Adapter x 1 - MX1.25 4-pin dual-ended cable (approx. 200mm) x 1 - Screw set x 1
