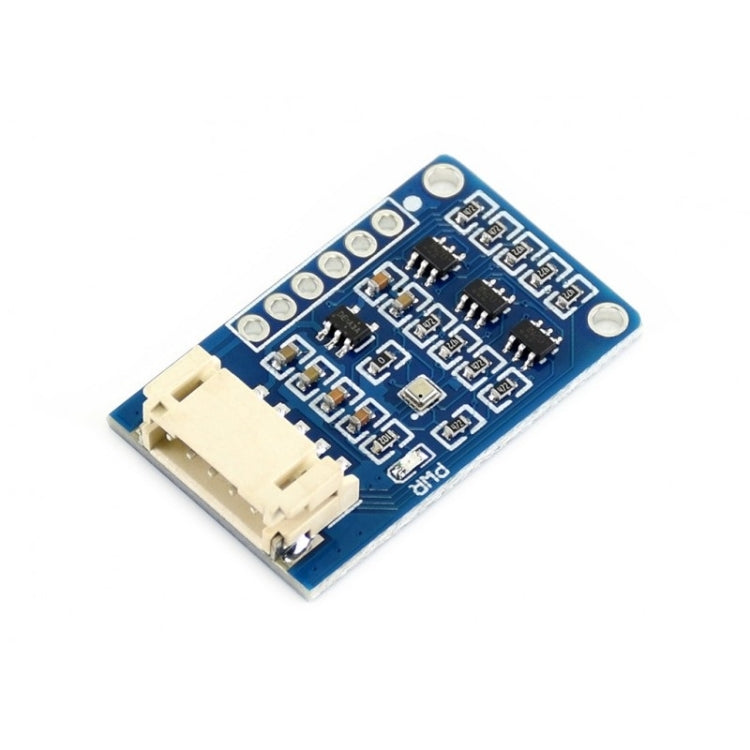

Waveshare BMP388 High Precision Barometric Pressure Sensor, Accurate Altitude Tracing
Waveshare BMP388 High Precision Barometric Pressure Sensor, Accurate Altitude Tracing
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
Overview
1. This is a 24-bit high precision barometric pressure sensor, which allows accurate altitude tracing, as well as barometric pressure / temperature measuring. It supports both I2C and SPI interfaces, also is compatible with 3.3V/5V voltage levels.
2. Due to its ultra small form factor, low power consumption, low noise and high precision, the BMP388 Barometric Pressure Sensor is suited for applications such as drones, accurate altimeter, environment monitoring, and IoT projects, and so on.
Features
1. Supports I2C (default) / SPI interface
2. Onboard voltage level translator, compatible with 3.3V/5V operating voltage
3. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
1. Operating voltage: 3.3V/5V
2. Communication interface: I2C/SPI
3. Barometric pressure operation range: 300~1250hPa
4. Barometric pressure absolute accuracy: +/-0.40hPa (@900~1100hPa, 25~40 degree C)
5. Barometric pressure relative accuracy: +/-0.08hPa (@900~1100hPa, 25~40 degree C)
6. Temperature coefficient offset: ±0.75Pa/K (@700~1100hPa, -20~65 degree C)
7. Temperature absolute accuracy: +/-0.5 degree C (0~65 degree C）
8. Possible resolution: 0.016Pa (high precision mode)
9. Possible sampling rate: 200Hz
10. Operating voltage: -40~85 degree C
11. Dimension: 32mm × 20mm
12. Mounting hole size: 2.0mm
Pinouts
1. VCC: 3.3V/5V power supply
2. GND: Ground
3. SDA: I2C data
4. SCL: I2C clock
5. INT: Interrupt output, can be connected to I/O
Package Contents

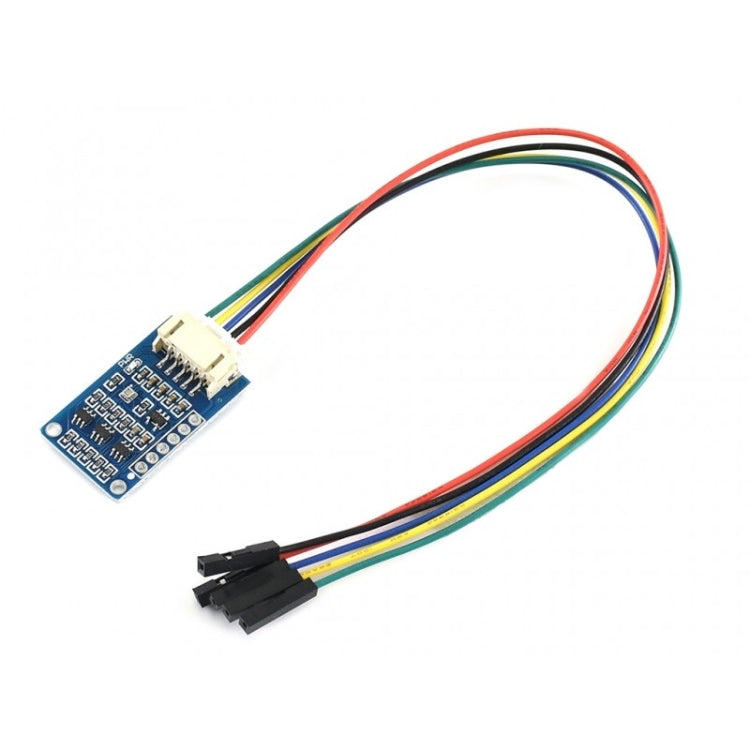

1. BMP388 Barometric Pressure Sensor x1
2. PH2.0 5PIN wire x1
