Waveshare Binocular Camera Base Board with Interface Expander for Raspberry Pi Compute Module 4

Name: Waveshare Binocular Camera Base Board with Interface Expander for Raspberry Pi Compute Module 4
Brand: WAVESHARE
SKU: DIY0214
Availability: InStock

$96.00

Sale Sold out

In Stock - Ships in 1-3 Days

Estimated delivery:

Free Shipping

30-Day Returns

1-Year Warranty

Shipping Information

FREE SHIPPING to UK & 40+ countries. Fully insured.

Delivery: Estimated times shown at checkout based on your location (typically 6-13 days total including 1-3 days handling)

No hidden fees on orders under £135 (orders over £135 may have import duties)

Ships from China via tracked DDP service. Order by 12 AM London time for next-day dispatch.

Full shipping policy →

30-Day Money-Back Guarantee

Return unused items within 30 days (you pay return shipping). Faulty items covered at no cost to you.

Full policy →

Right Part Guarantee

Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.

Hassle-Free Returns

Start your return online in seconds. No forms, no hassle.

Return portal →.

Trusted by 80,000+ DIY & repair professionals

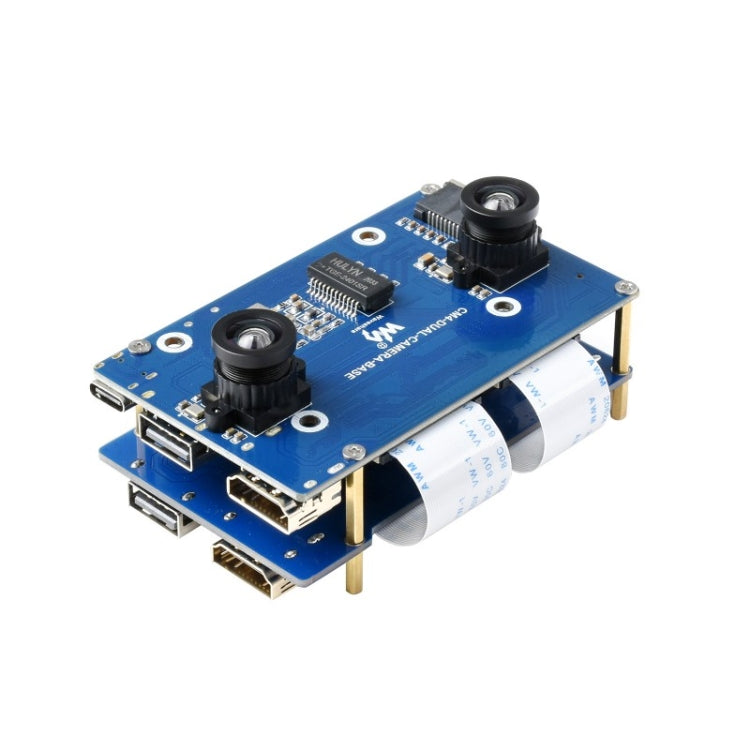

Camera Base Board
1. CM4 socket: Suitable for all variants of Compute Module 4
2. Networking: Gigabit Ethernet RJ45
3. USB: USB 2.0 x 1
4. FFC connector:
- HDMI-compatible & PCIe & USB FFC connector x 1
- GPIO FFC connector x 1
5. Dual-lens camera
- Pixels: 8MP
- Sensor: IMX 219
- Resolution: 3280 x 2464 (per channel)
- CMOS size: 1/4 inch
- Aperture: F2.4
- Focal length: 2.6mm
- FOV: 83/73/50 degree (diagonal/horizontal/vertical)
- Distortion: Less than 1%
- Baseline length: 60mm
6. Video: HDMI-compatible x 1, supports 4K 30fps output
7. Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
8. Power input: 5V/2.5A

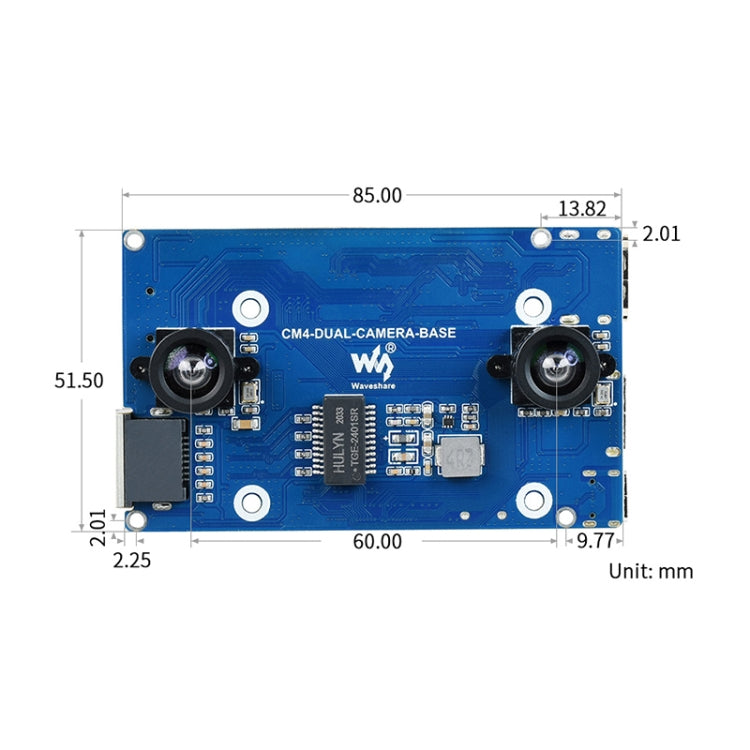

9. Dimensions: 85.0 x 51.5mm

Interface Expander
1. USB: USB 2.0 x 3
2. FFC connector:
- HDMI-compatible & PCIe & USB FFC connector x 1
- GPIO FFC connector x 1
3. Other connector:
- M.2 M KEY x 1, for connecting NVME SSD or communication module
- Raspberry Pi 40PIN GPIO header x 1
4. Video: HDMI-compatible x 1, support 4K 30fps output
5. Dimensions: 85.0 x 51.5mm

Package List
1. Dual camera base x1
2. Screws pack x1
3. Interface expander x1
4. FFC 2PCS x1
