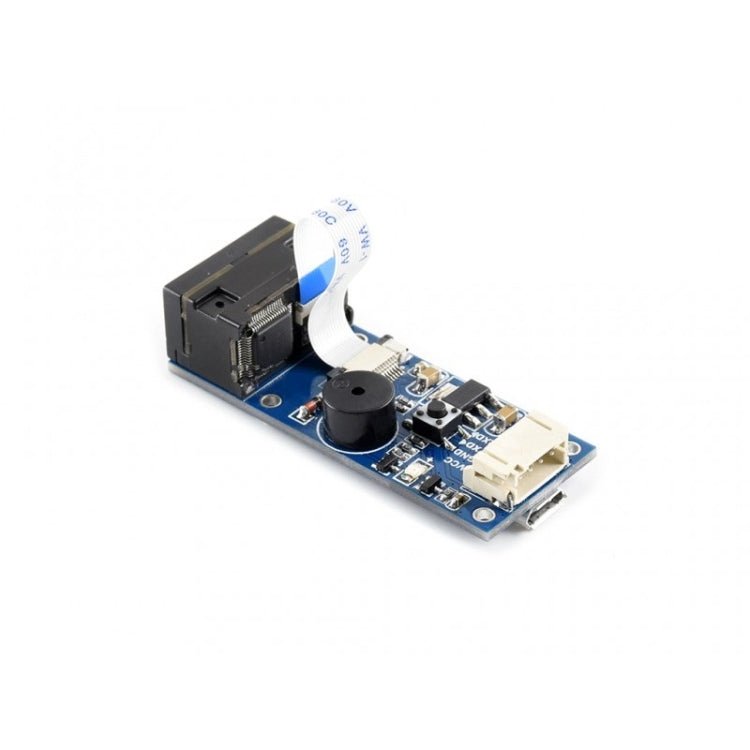

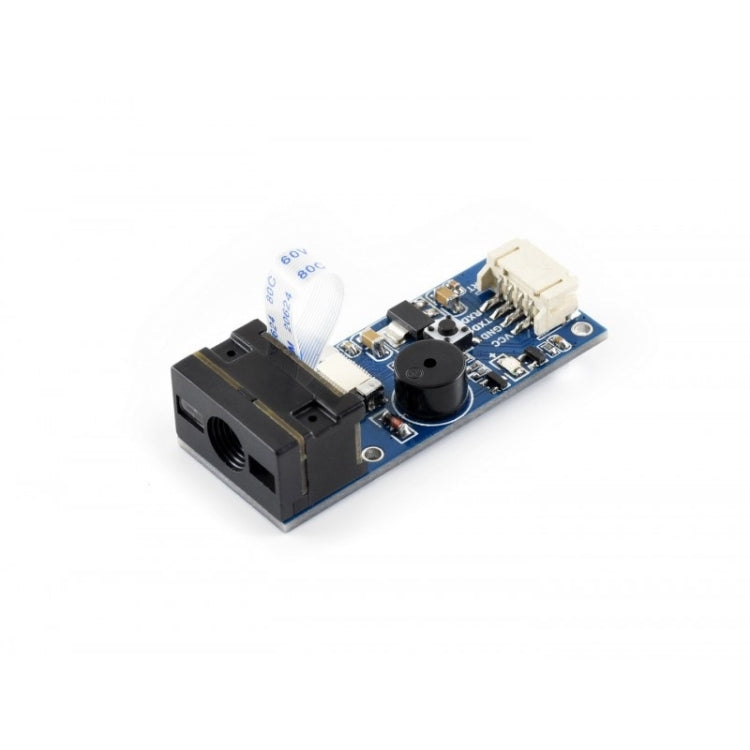

Waveshare Barcode Scanner Module, 1D/2D Codes Reader
Waveshare Barcode Scanner Module, 1D/2D Codes Reader
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Portal.
1. This is a small 1D/2D codes reader, by using the intelligent image recognition algorithm, it will decode the barcode or 2D code on paper or screen, fast and accurately.
2. Through the onboard USB and UART interface, it can be directly plugged into a computer, or be easily integrated to kinds of devices due to its small form factor.
Features
1. Easy to use, requires no knowledges of image recognition
2. Decodes various common 1D/2D codes such as Barcode, QR code etc.
3. Onboard micro USB and UART serial port, allows to connect with computers or embedded devices
4. Configurable via scanning configuration code
5. Onboard light source, works in the dark
Specifications
1. Operating voltage: 5V
2. Operating current: 135mA (scanning), 58mA (standby), 2mA (sleep)
3. Operating temperature: 0°C~60°C
4. Operating humidity: 5%~95% (Non-condensing)
5. Communication interface: UART, USB
6. Decodes 1D codes: Codebar, Code 11, Code 39/Code 93, UPC/EAN, Code 128/EAN128, Interleaved 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5, GS1 Databar(RSS)
7. Decodes 2D codes: QR code, Data Matrix, PDF417
8. Light source: white
9. Scan angels: roll 360°, skew ±65°, pitch ±60°
10. Field of view: 28° (horizontal), 21.5° (vertical)
11. Dimension: 53.3mm x 21.4mm
12. Package contents:
- Barcode Scanner Module x1
- USB type A plug to micro B plug cable x1
- PH2.0 4Pin x1
