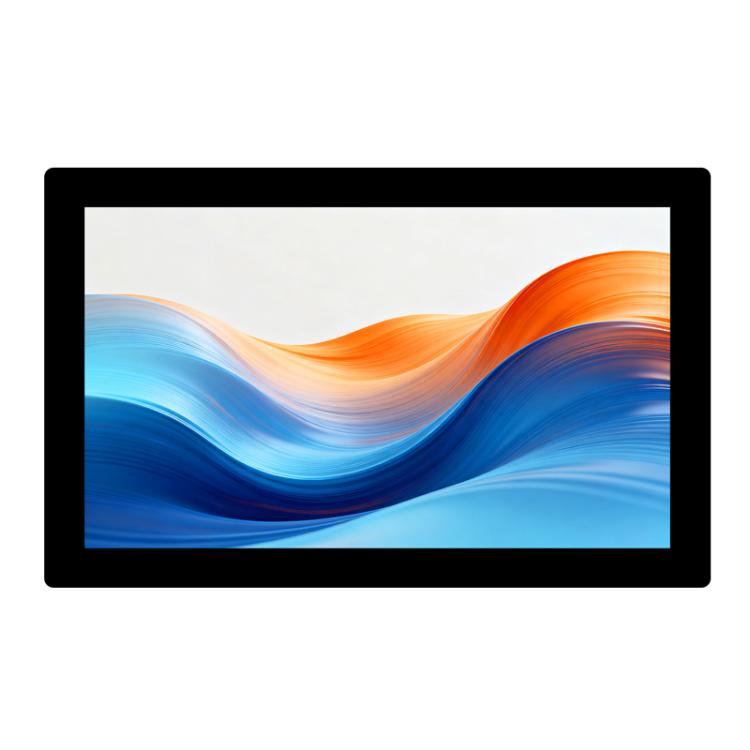

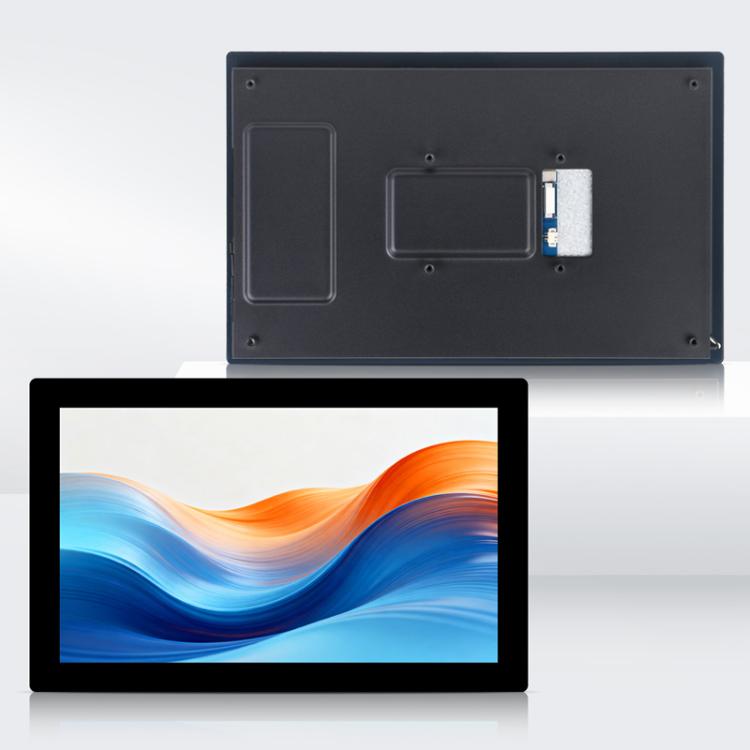

WAVESHARE 9 inch DSI High Color Gamut Touch Screen 720x1280 Pixel IPS Tempered Glass Panel Support 10 Points Touch

WAVESHARE 9 inch DSI High Color Gamut Touch Screen 720x1280 Pixel IPS Tempered Glass Panel Support 10 Points Touch

SKU: TBD0606484201
Regular price $116.00
Regular price Sale price $116.00
Sale Sold out
In Stock
CHN This item is shipped from China.

Processed in 0–3 days

Quantity

Product Details


1. Screen size: 9 inches
2. Resolution: 720 x 1280

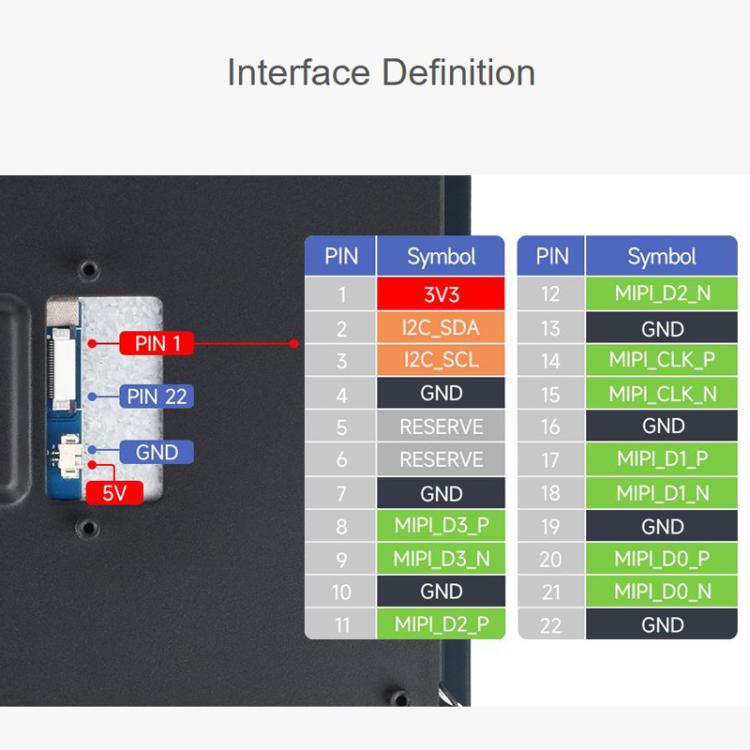

3. Display interface: DSI
4. Display panel: IPS
5. Viewing angle: 160 degrees
6. Touch type: capacitive touch
7. Number of touch points: 10-point touch
8. Touch panel: tempered glass panel
9. Touch interface: I2C
10. Brightness: 500 cd/m2

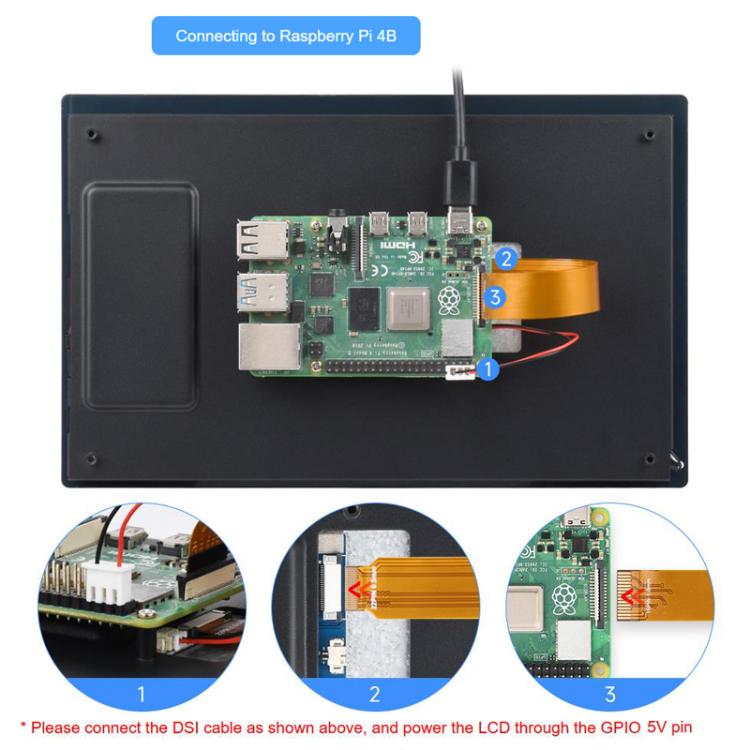

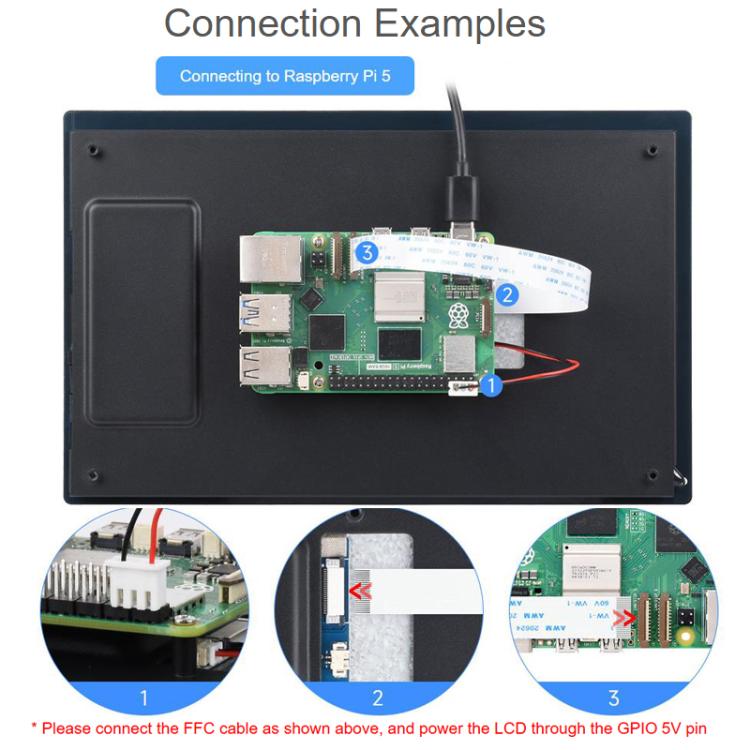

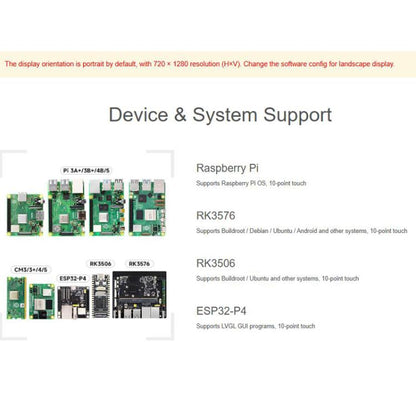

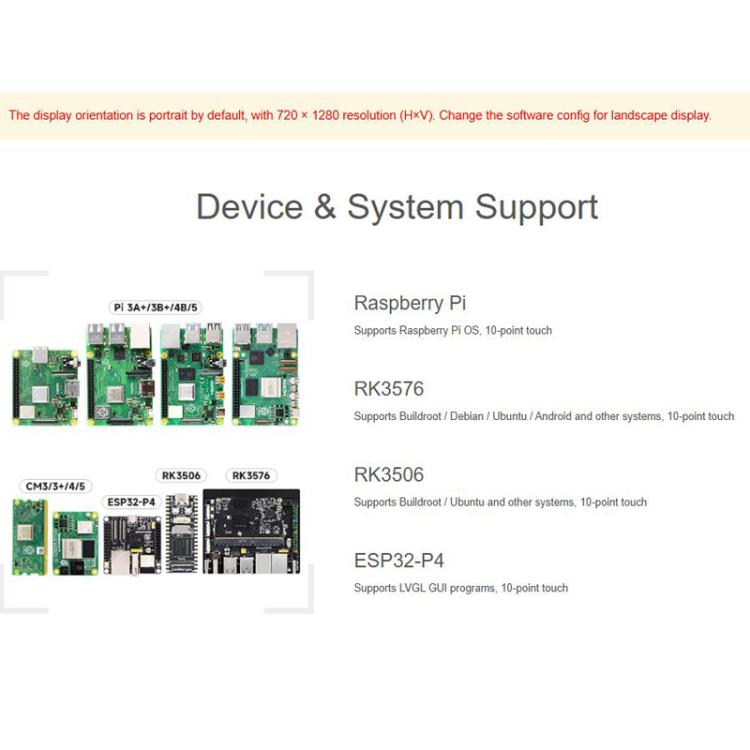

11. for Raspberry Pi Pi 3A + / 3B + / 4B / 5, CM3 / 3 + / 4 / 5, support Raspberry Pi OS

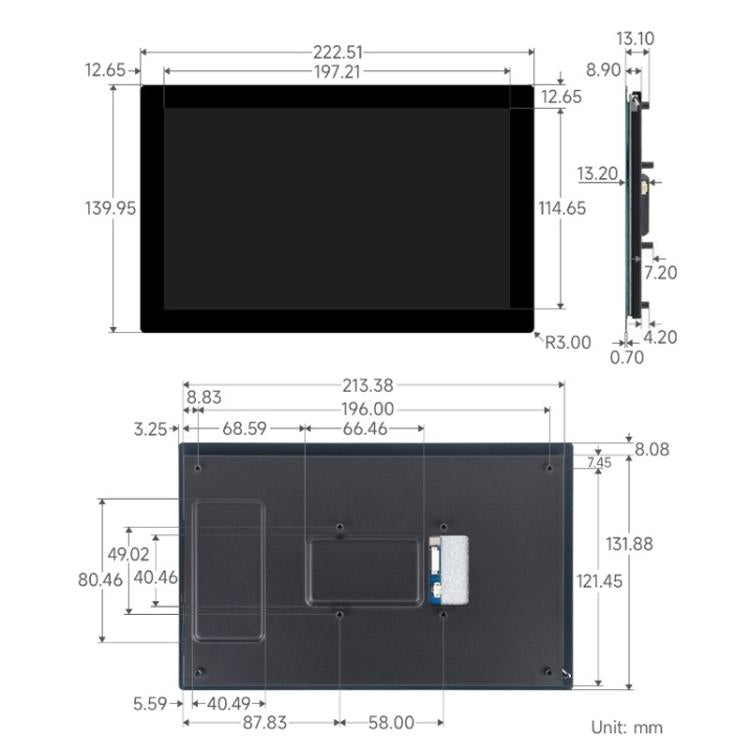

12. Size: about 22.3 x 14 x 1.3cm

Features:

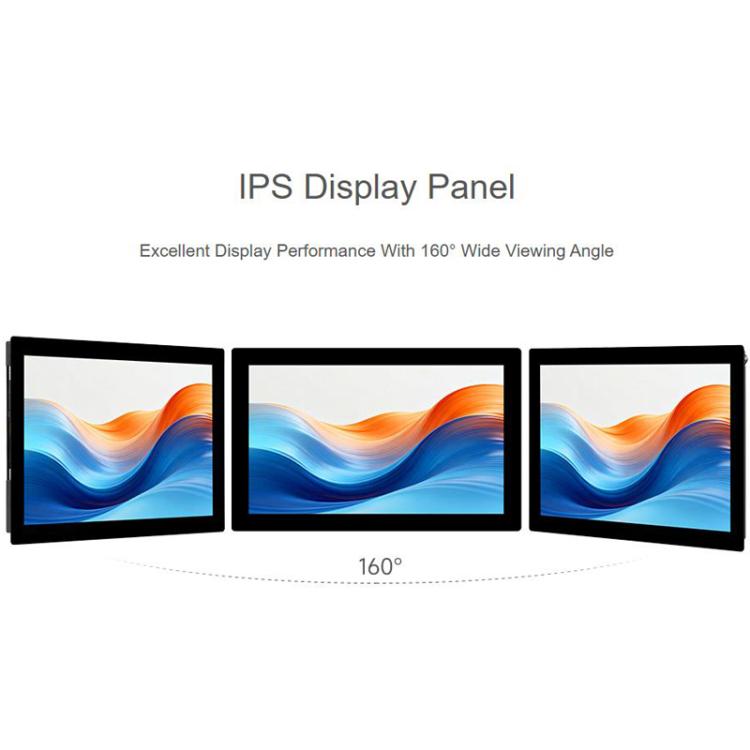

1. IPS display panel, excellent display performance, viewing angle up to 160 degrees
2. High color gamut quantum lamp technology, higher color gamut, more pure color

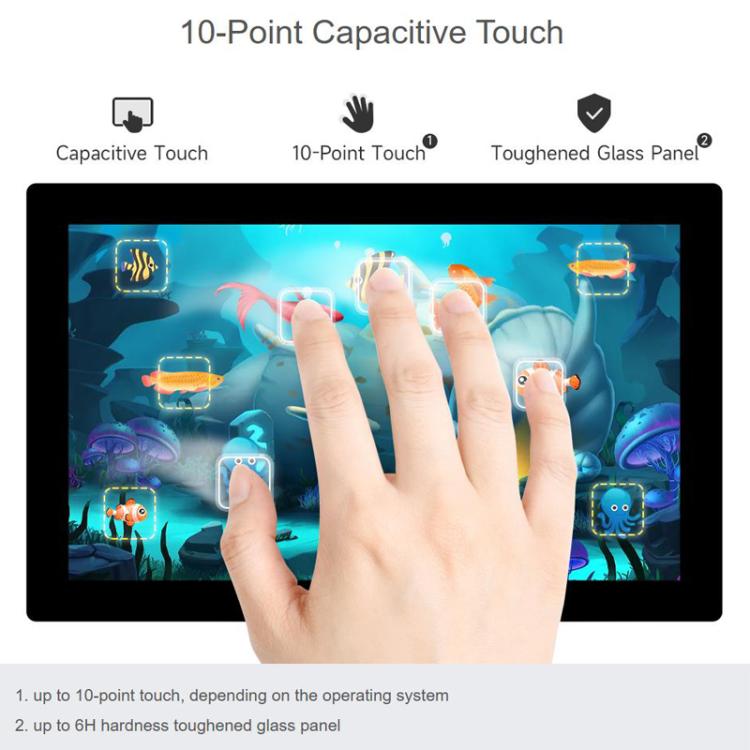

3. 10-point touch support, the actual number of touch points is related to the software system.
4. Tempered glass panel, hardness of 6H

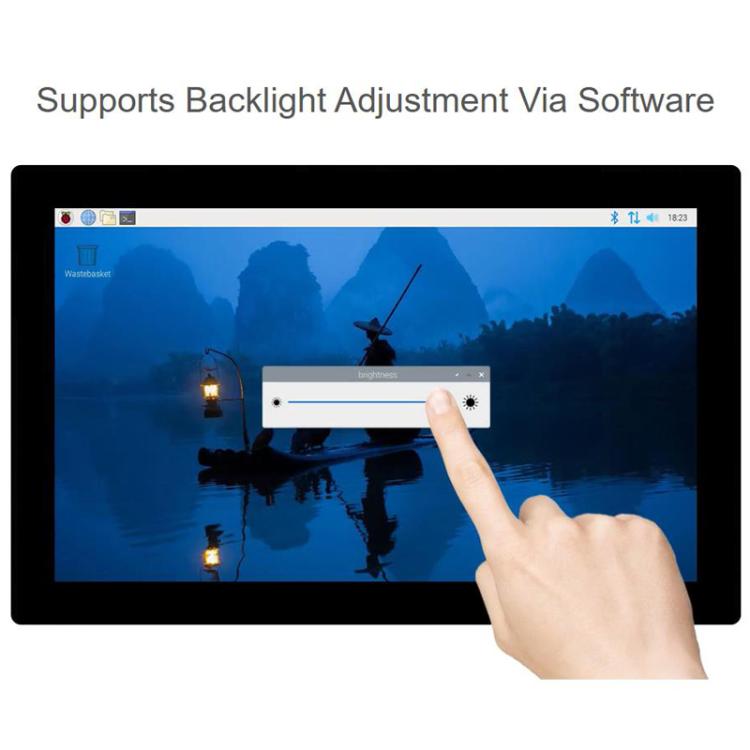

5. Brightness of backlight can be adjusted by software.
6. Default is vertical display, the resolution is 720 x 1280 (H x V), you can modify the software settings, horizontal display
