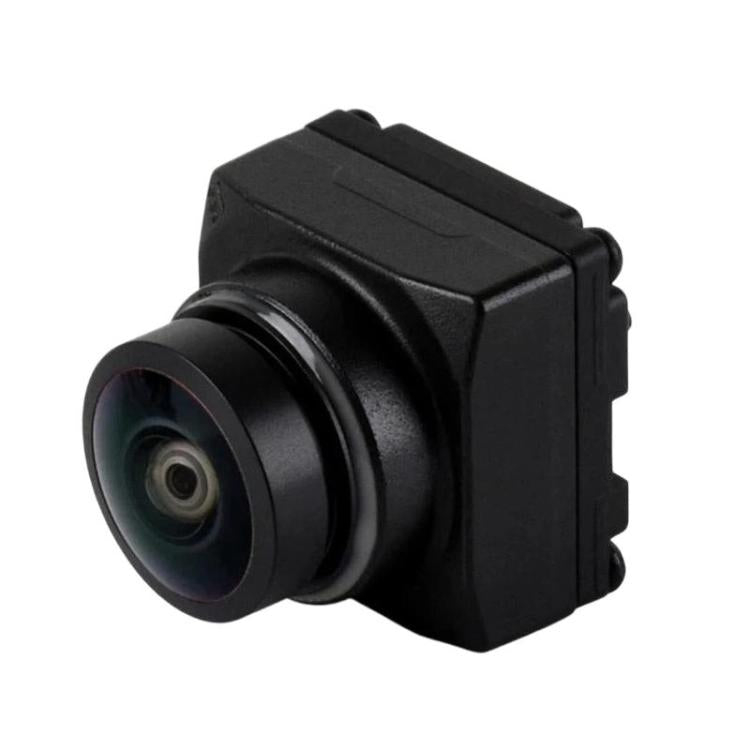

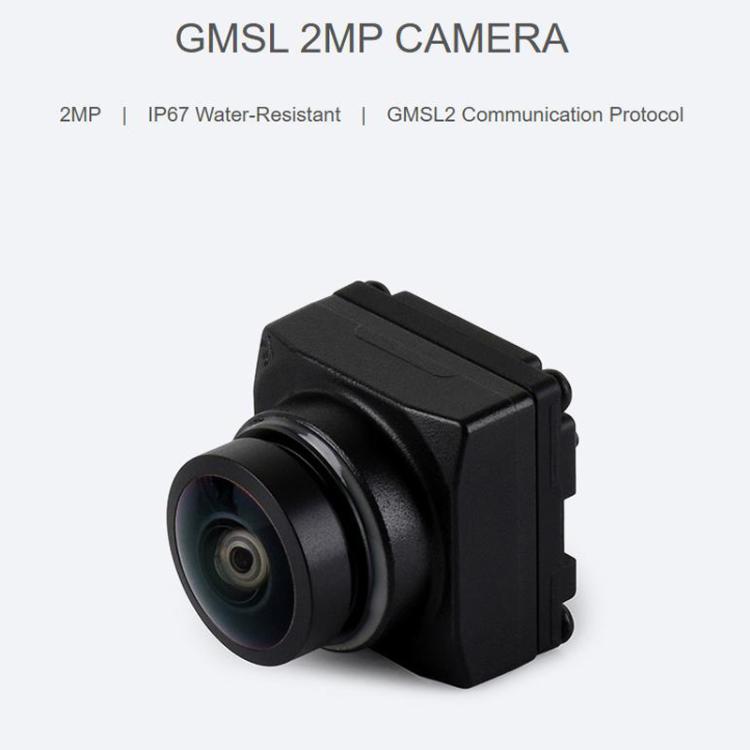

Waveshare 34019 2MP GMSL Camera Module, Automotive-Grade Image Sensor, Built-In ISP, AA Lens, IP67 Protection Degree
Waveshare 34019 2MP GMSL Camera Module, Automotive-Grade Image Sensor, Built-In ISP, AA Lens, IP67 Protection Degree
SKU: TBD0606808701
Regular price
$203.00
Regular price
Sale price
$203.00
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Quantity
Couldn't load pickup availability
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
1. Sensor model: 2.51MP RGGB
2. Resolution: 1920 x 1080
3. CMOS size: 1/2.57inch
4. Pixel size: 3 x 3 um
5. Field of view (FOV): 195° (Horizontal) x 152° (Vertical)
6. Aperture (F.No): 2
7. Focal Length (EFL): 1.51mm
8. Depth of field: 0.083m - infinity (fixed at 0.4m)
9. Distortion: less than -155%
10. ISP: built-in
11. Frame rate: 1920 x 1080 30fps
12. HDR (High dynamic imaging): supported
13. LFM (LED flash suppression): supported
14. Output format: YUV422 8bit
15. Serializer model: MAXIM MAX96717F
16. I2C address: 0x80 (8-bit address)

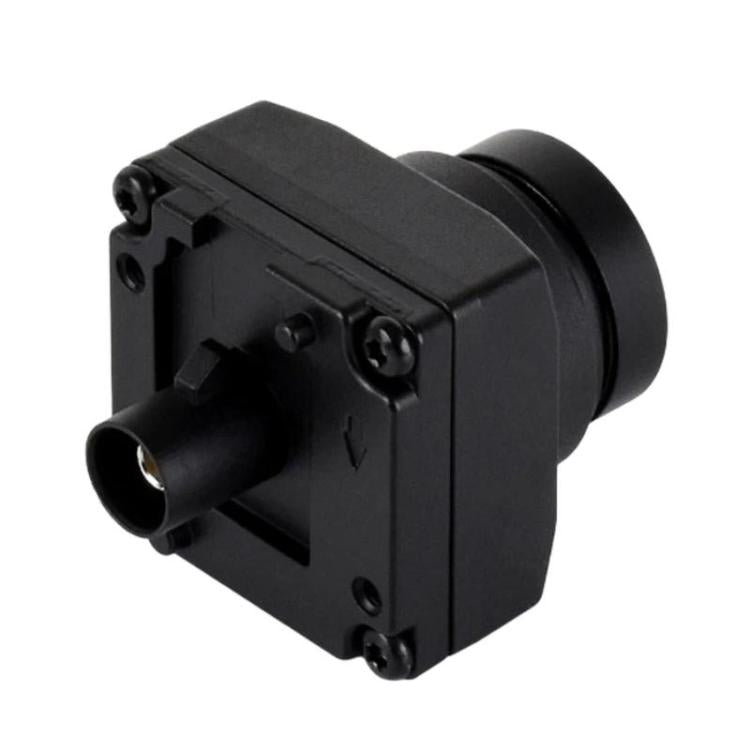

17. Camera interface: fakra Z type connector
18. Operating voltage: 9 - 12V PoC
19. Operating current: less than 200mA 12V
20. Operating temperature: -40°C - 85°C
21. Protection level: IP67
Packaging list:
- GMSL-2MP-Camera-A main unit x 1
- GMSL Camera wiring (2m double-jumper coaxial cable assembly) x 1
Verified Compatible
Guaranteed fit for device in the title. Wrong part? Full refund including shipping.
