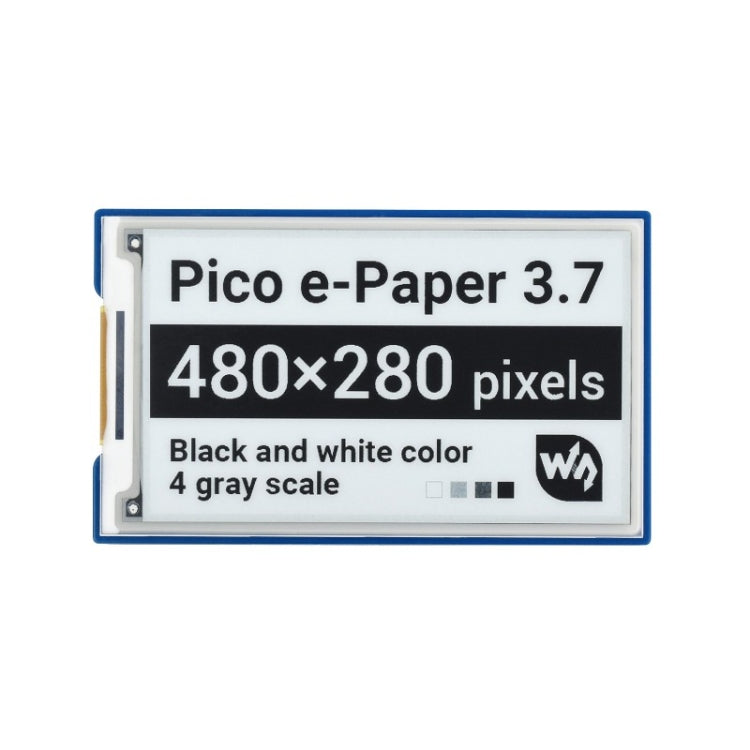

Waveshare 3.7 inch 480x280 Pixel E-Paper E-Ink Display Module for Raspberry Pi Pico, 4 Grayscale, SPI Interface

Name: Waveshare 3.7 inch 480x280 Pixel E-Paper E-Ink Display Module for Raspberry Pi Pico, 4 Grayscale, SPI Interface
Brand: WAVESHARE
SKU: DIY0166
Availability: InStock

$44.00

Sale Sold out

In Stock - Ships in 1-3 Days

Estimated delivery:

Free Shipping

30-Day Returns

1-Year Warranty

Shipping Information

FREE SHIPPING to UK & 40+ countries. Fully insured.

Delivery: Estimated times shown at checkout based on your location (typically 6-13 days total including 1-3 days handling)

No hidden fees on orders under £135 (orders over £135 may have import duties)

Ships from China via tracked DDP service. Order by 12 AM London time for next-day dispatch.

Full shipping policy →

30-Day Money-Back Guarantee

Return unused items within 30 days (you pay return shipping). Faulty items covered at no cost to you.

Full policy →

Right Part Guarantee

Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.

Hassle-Free Returns

Start your return online in seconds. No forms, no hassle.

Return portal →.

Trusted by 80,000+ DIY & repair professionals

Features
1. No backlight, keeps displaying last content for a long time even when power down
2. Ultra low power consumption, basically power is only required for refreshing
3. SPI interface, requires minimal IO pins
4. Onboard voltage translator, compatible with 3.3V / 5V MCUs
5. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specification
1. Operating voltage: 3.3V/5V
2. Display color: Black, white
3. Resolution: 480x280 pixels
4. Grey scale: 4
5. Interface: 3-wire SPI, 4-wire SPI
6. Viewing angle: Greater than 170 degree
7. Partial refresh time: 0.3s
8. Full refresh time: 3s
9. Outline dimensions: 95.3 x 56.9mm
10. Display size: 81.12 x 47.32mm
11. Refresh power: 26.4mW (typ.)
12. Standby current: Less than 0.01uA (almost none)
13. Dot pitch: 0.169 x 0.169 mm

Package List
1. Pico-ePaper-3.7 x 1
2. Standoff pack x 1
