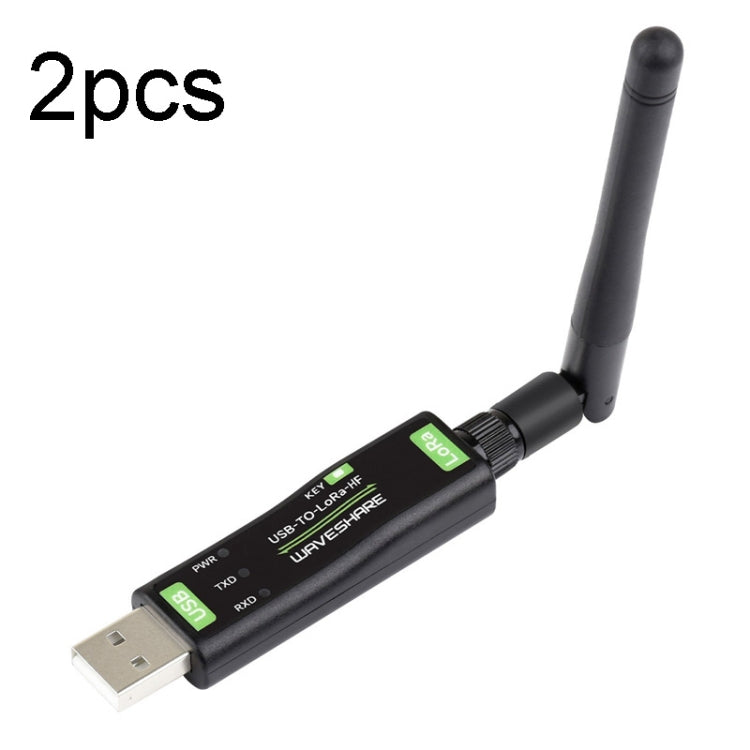

2pcs Waveshare 24515 USB To LoRa Data Transfer Module Based On SX1262 HF Version Using TCXO Crystal Oscillator
2pcs Waveshare 24515 USB To LoRa Data Transfer Module Based On SX1262 HF Version Using TCXO Crystal Oscillator
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Portal.

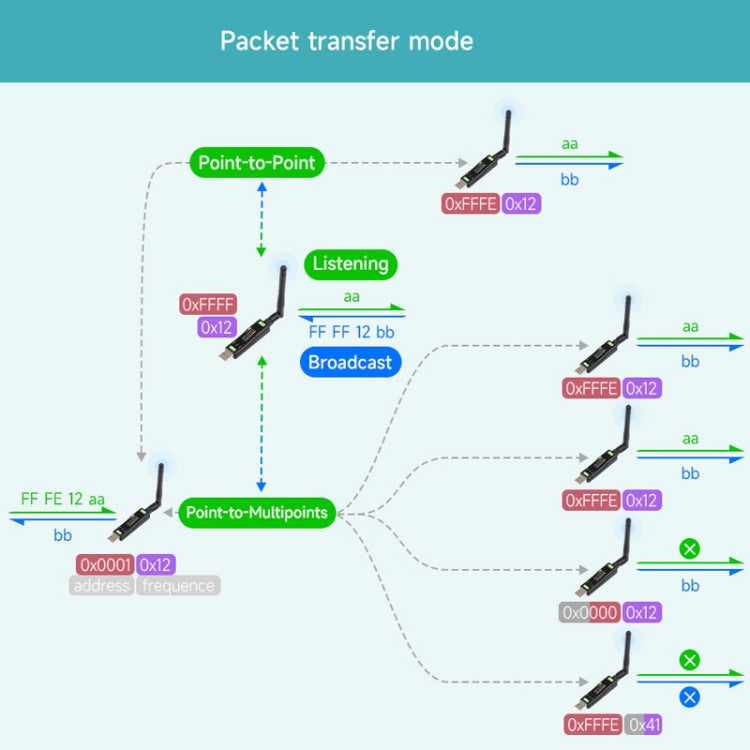

1. This product is a wireless data transmission terminal based on the USB interface of the SX1262 solution. Using LoRa modulation and demodulation technology, it has the characteristics of strong anti-interference and long-distance communication, and the communication distance can reach 5KM. It supports point-to-point, point-to-multiple, relay networking, AES encryption and other communication methods. It is small in size and easy to install. It is suitable for standard or non-standard user protocol wireless data transmission and equipment control of industrial control.
2. Use SX1262 solution, with -148dBm receiving sensitivity and 22dBm transmitting power
3. Support preamble detection, with CRC, automatic subpacket, 960 byte cache function
4. Support LBT transmission, RSSI output, AT command set setting
5. Support AES encrypted communication to ensure the security of data transmission
6. Support multi-level relay networking to increase the distance of wireless communication
7. Support PC configuration and firmware upgrade
8. Provide a complete supporting manual
Shape parameters:
-Interface type: USB Type A
-SMA-KE female socket: 6dBi omnidirectional antenna × 1
-Shell: ABS shell
- Dimensions: 56.40 × 18.40 × 12.52mm
Wireless parameters:
- Frequency band: Sub-GHz (410~510MHz, 850~930MHz)
- Signal modulation: LoRa
-Encryption type: AES128
- Transmitting power: +22dBm Max
-Receiving sensitivity: -148dBm
Serial parameters:
- Baud rate: 1200 ~ 115200bps
- Parity bit: none, odd parity, even parity
-Data bits: 8 ~ 9 bits
- flow control: N/A
Environmental requirements:
- Operating temperature: TCXO version 0 ~ 85 degrees Celsius, XTAL version: 0 ~ 50 degrees Celsius
- Humidity range: 5% ~ 95% relative humidity
