Waveshare 26959 ESP32-S3 1.28inch LCD Development Board, 32-Bit LX7 Dual-Core Processor With Touch
Waveshare 26959 ESP32-S3 1.28inch LCD Development Board, 32-Bit LX7 Dual-Core Processor With Touch
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
1. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, the main frequency is up to 240 MHz
2. Support 2.4 GHz WiFi (802.11b/g/n) and Bluetooth5 (LE), onboard antenna
3. Built-in 512KB SRAM and 384KB ROM, stacked 2MB PSRAM and external 16MB Flash
4. Adopt Type-C interface, no need to worry about whether to insert it in the right or wrong direction

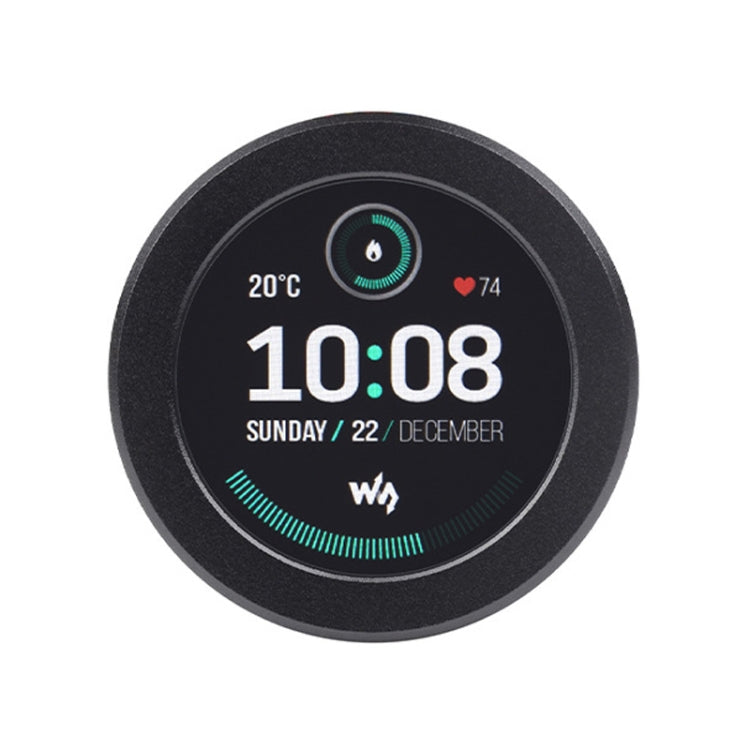

5. Onboard 1.28-inch capacitive touch LCD screen, 240 x 240 resolution, 65K color
6. The upper shell is made of CNC metal material, and the back is equipped with an acrylic matte base
7. Onboard QMI8658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), which can detect motion posture
8. Onboard 3.7V MX1.25 lithium battery charging and discharging interface
9. Lead out 6 GPIO SH1.0 connector
10. Supports flexible clock, module power individual setting and other precise control to achieve multi-scenario low power consumption mode
11. Integrated USB serial port full-speed controller, GPIO can flexibly configure peripheral functions
12. Product size: 48 x 48 x 12.5mm
