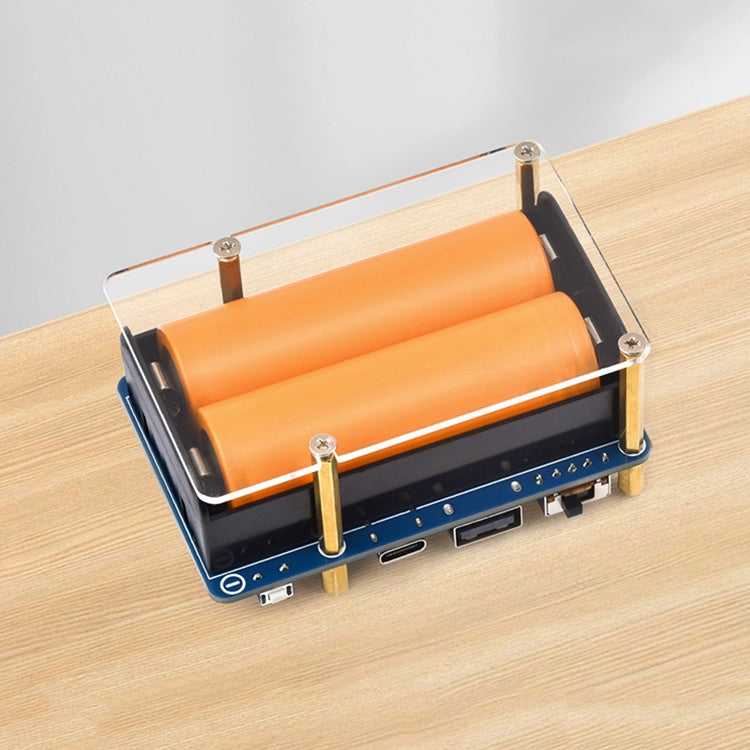

Waveshare 25567 For Raspberry Pi UPS HAT (D), Pogo Pins Connector , Without Battery
Waveshare 25567 For Raspberry Pi UPS HAT (D), Pogo Pins Connector , Without Battery
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
Features:

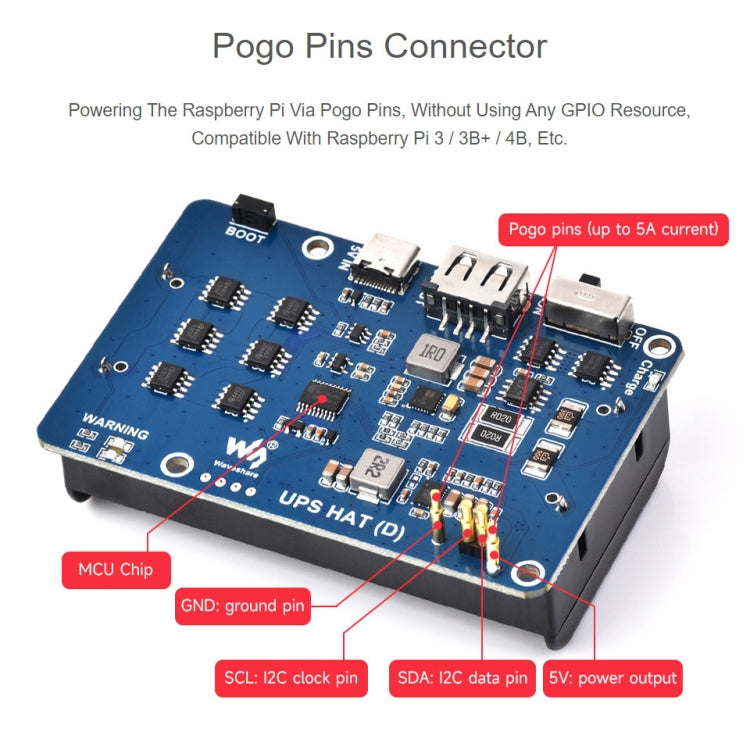

1. Adopt pogo pin connector design, compatible with Raspberry Pi 3 / 3B+ / 4B, etc.

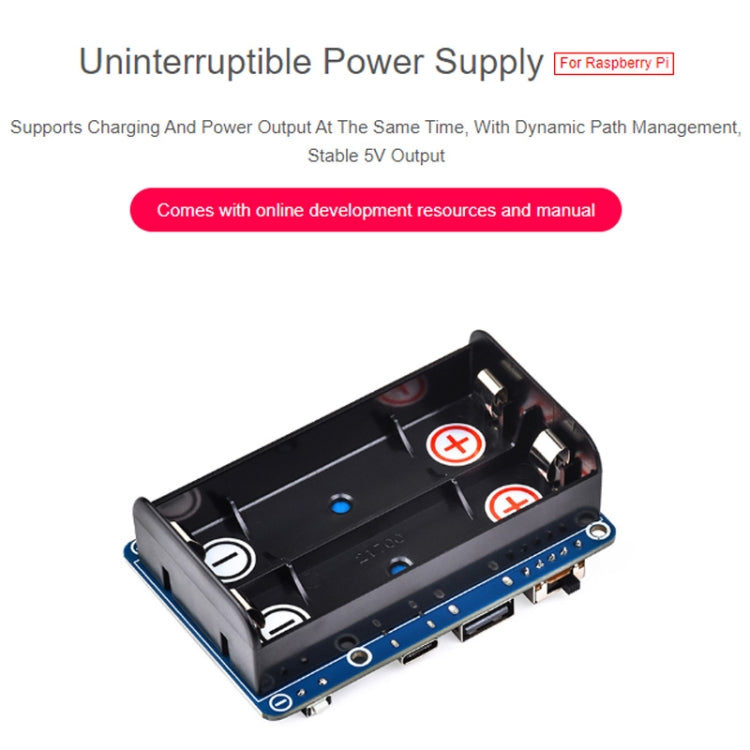

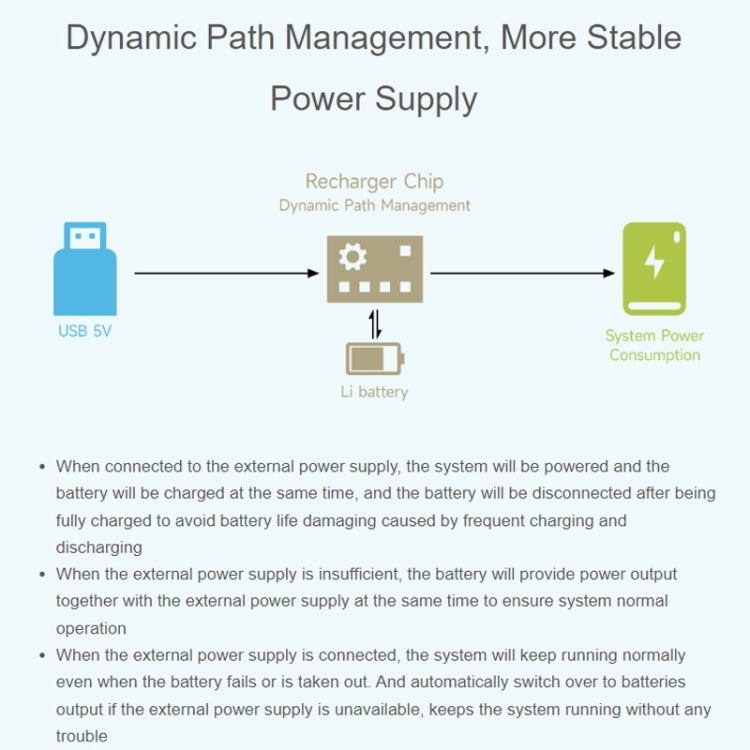

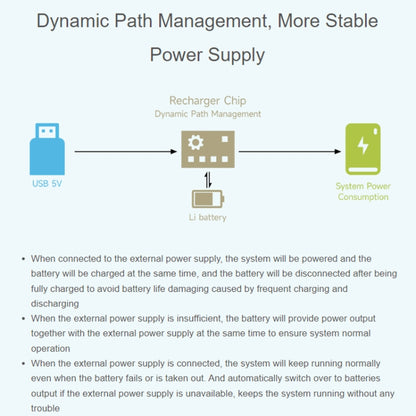

2. Onboard lithium battery charging chip, with dynamic path management, more stable power supply
3. Onboard boost converter chip provides stable 5V power output

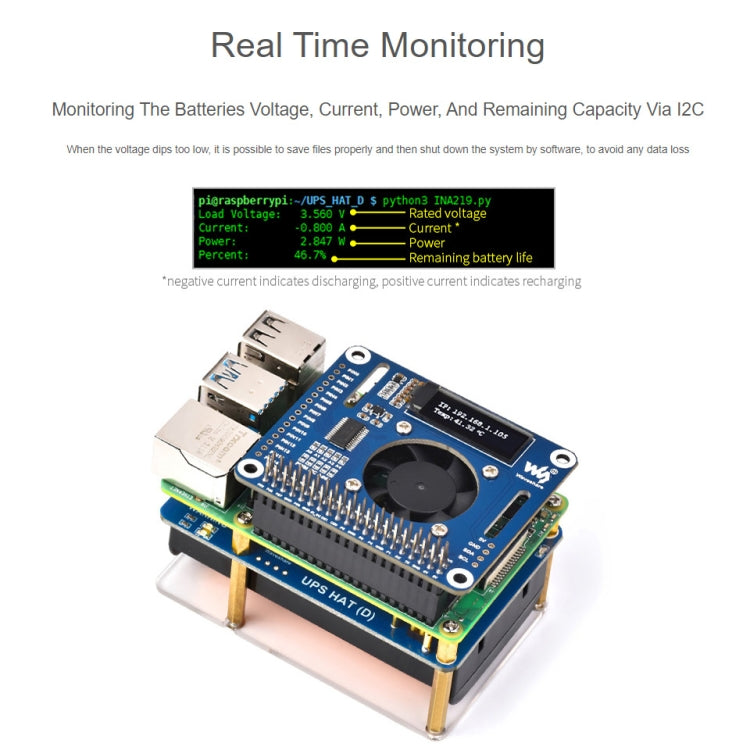

4. I2C bus communication, real-time monitoring of battery voltage, current, power, and remaining power
5. Multiple battery protection circuits: overcharge/discharge protection, overcurrent protection, short circuit protection, safer and more stable
6. Onboard MCU management, supports detecting power connection and starting Raspberry Pi

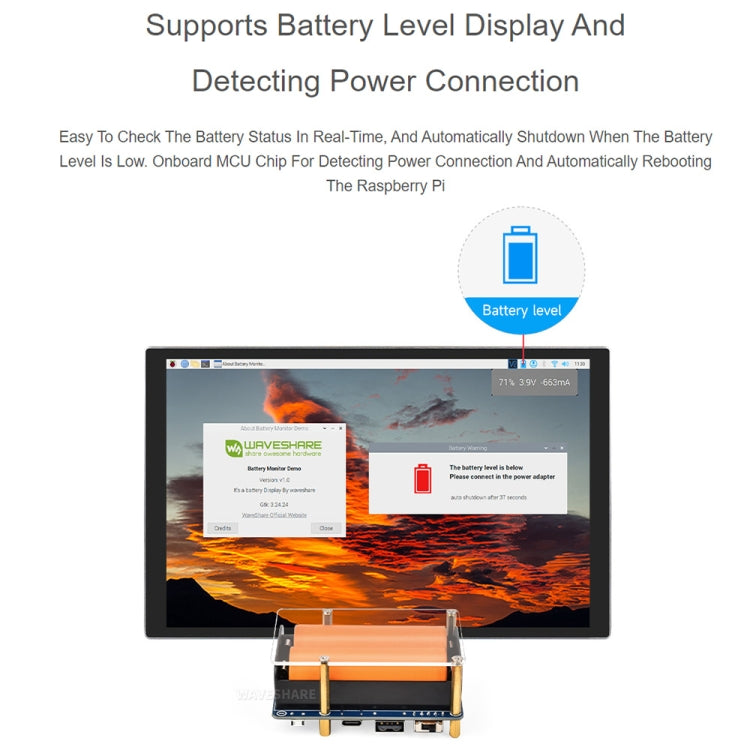

7. Supports displaying battery power on the system to facilitate checking the remaining battery power.
8. Onboard LED indicator for monitoring battery working status
Product parameters:
1. Output voltage: 5V
2. Control bus: I2C

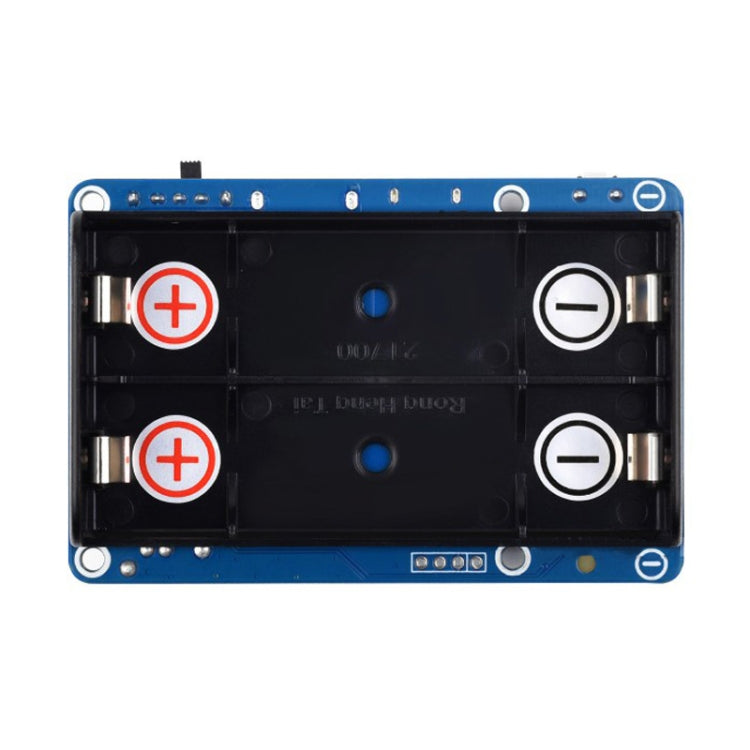

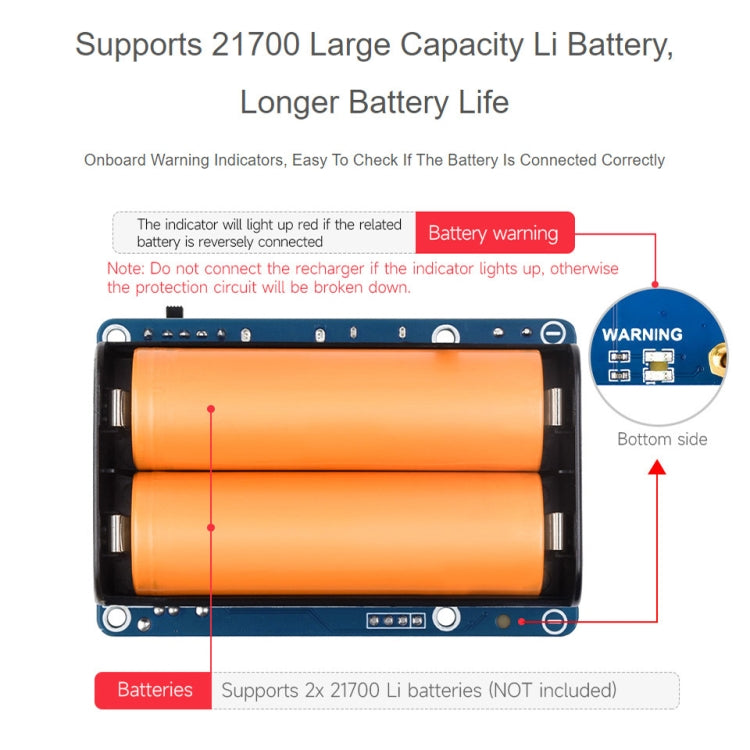

3. Battery: 21700 lithium battery × 2 (connected in parallel, batteries are not included in delivery)

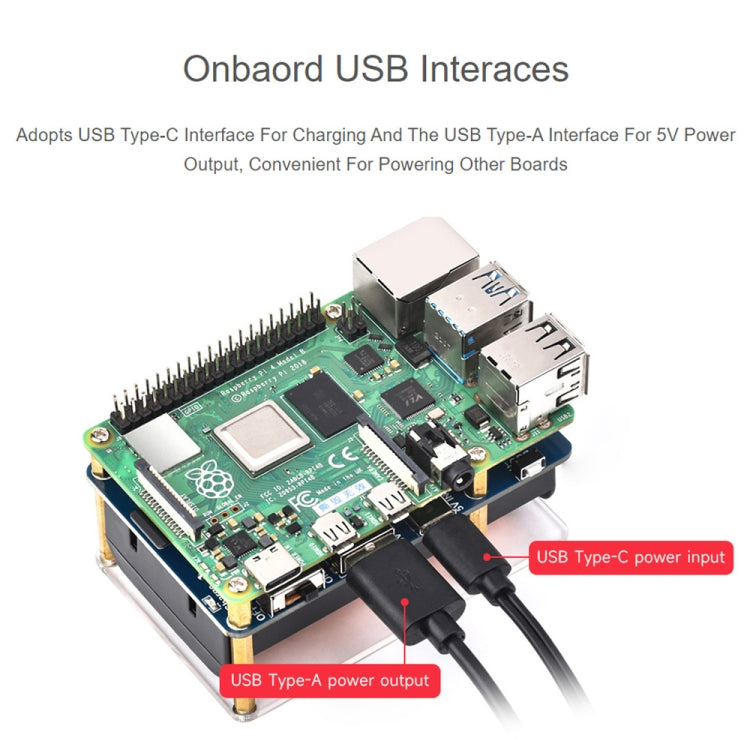

4. Charger support: 5V (Type-C port)

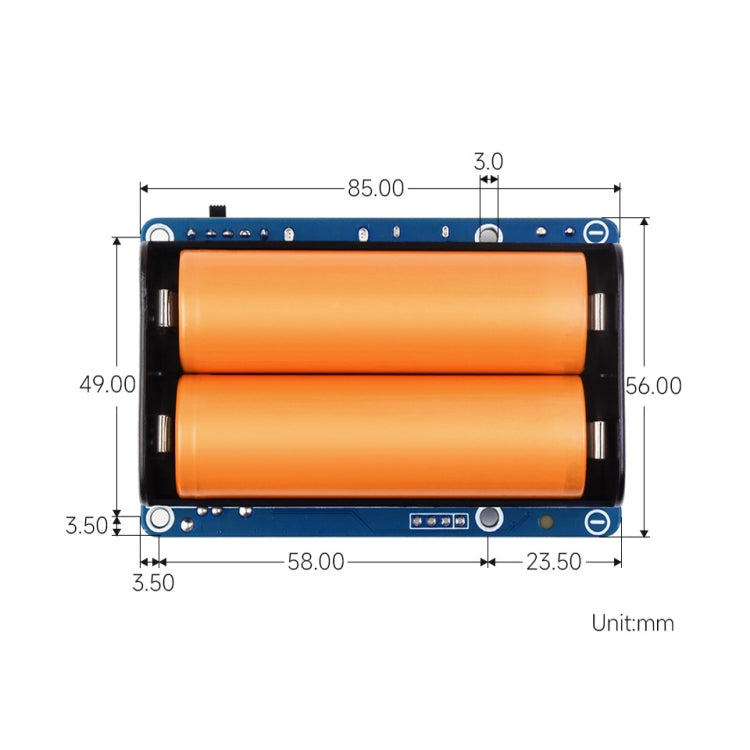

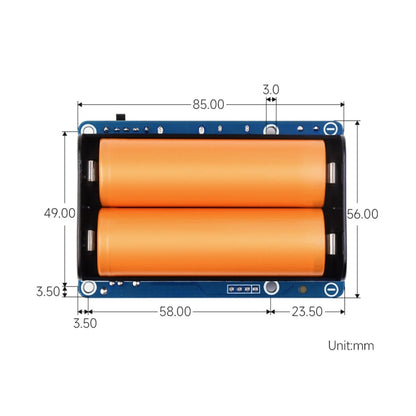

5. Product size: 56 x 85mm
6. Mounting hole size: 3.0mm

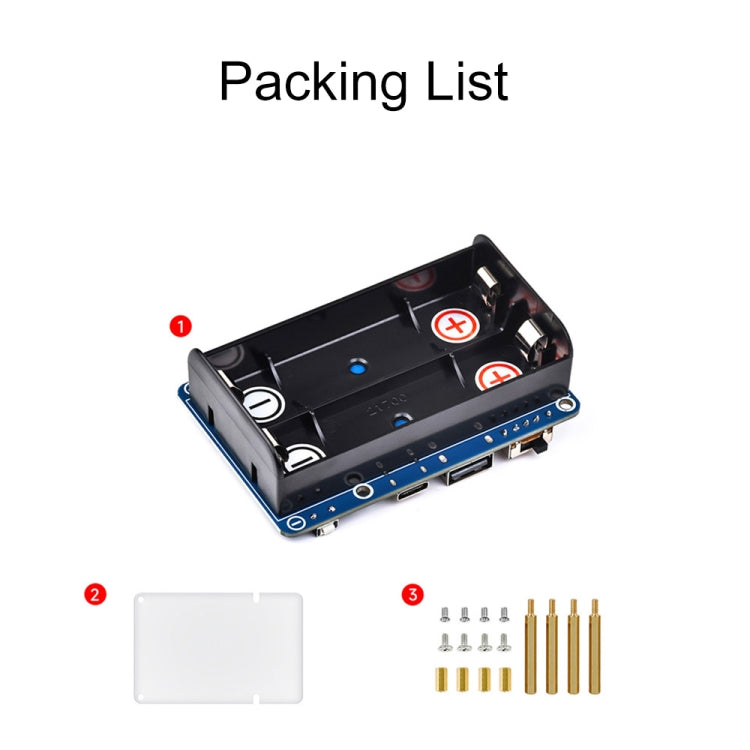

Packing list:
-UPS Hat (D) x 1

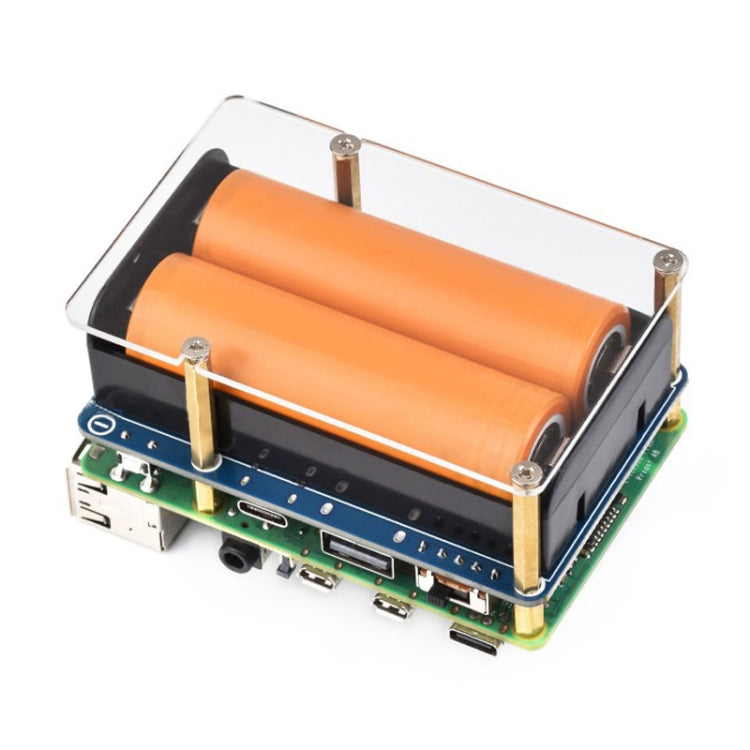

-Acrylic protective board x 1
-Screw pack x 1
