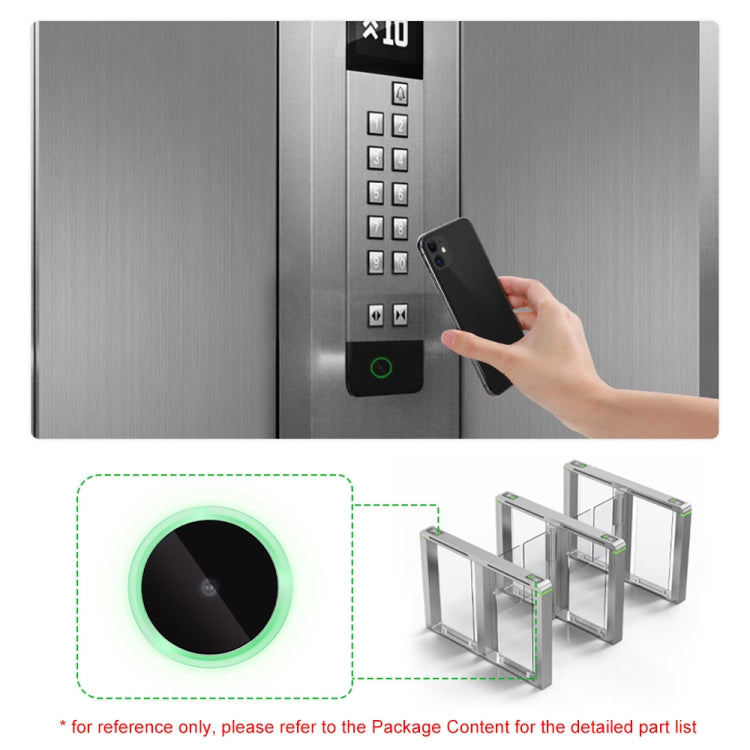

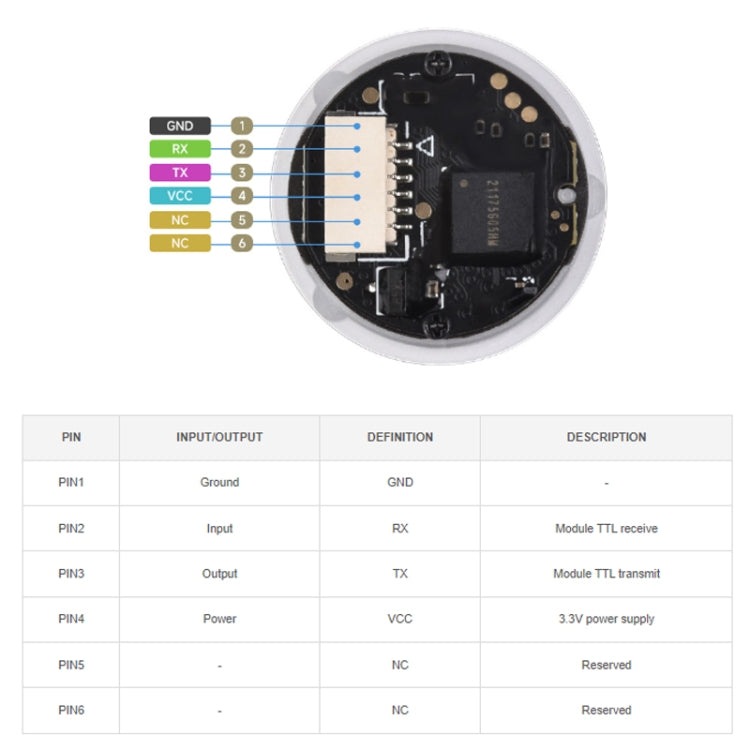

Features: 1. Suitable for barcode scanning applications such as elevators. 2. Use advanced image recognition algorithms to easily decode various one-dimensional or two-dimensional codes. 3. Onboard UART interface, which can be easily integrated into various embedded devices. 4. Compact size and high integration

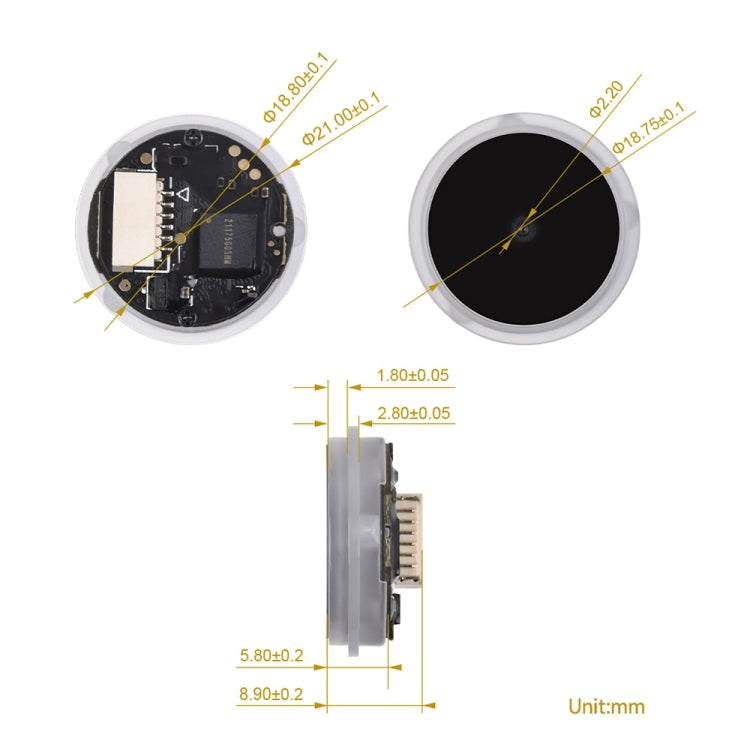

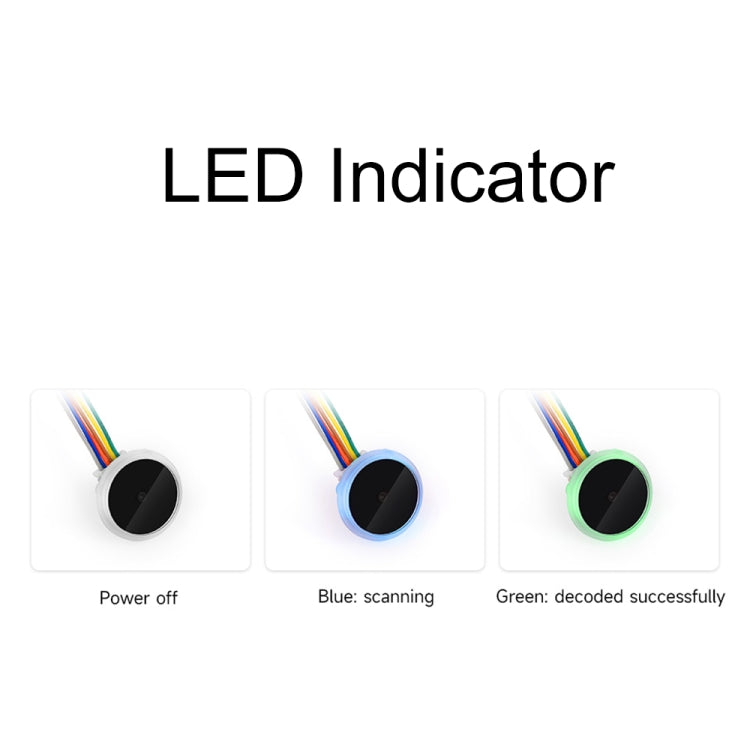

Product parameters: 1. Resolution: 640 x 480 2. Scanning angle: horizontal 70 degrees, vertical 55 degrees, rolling 360 degrees 3. Scan mode: induction, continuous 4. Accuracy: one-dimensional code is greater than or equal to 5mil, two-dimensional code is greater than or equal to 10mil 5. Communication interface: UART port (default 9600 8N1) 6. LED indicator: Blue: Scan Green: decoding successful 7. Power supply: 3.3V 8. Current: 120mA 9. Security protection: Electrostatic protection: contact discharge 6 kV, air discharge ±12KV IP protection: IP54 (front) 10. Operating temperature: -30 to 70 degrees Celsius 11. Storage temperature: -40 to 80 degrees Celsius 12. Working humidity: 5%RH-95%RH (non-condensing) 13. Product size: 21 x 21 x 8.9mm

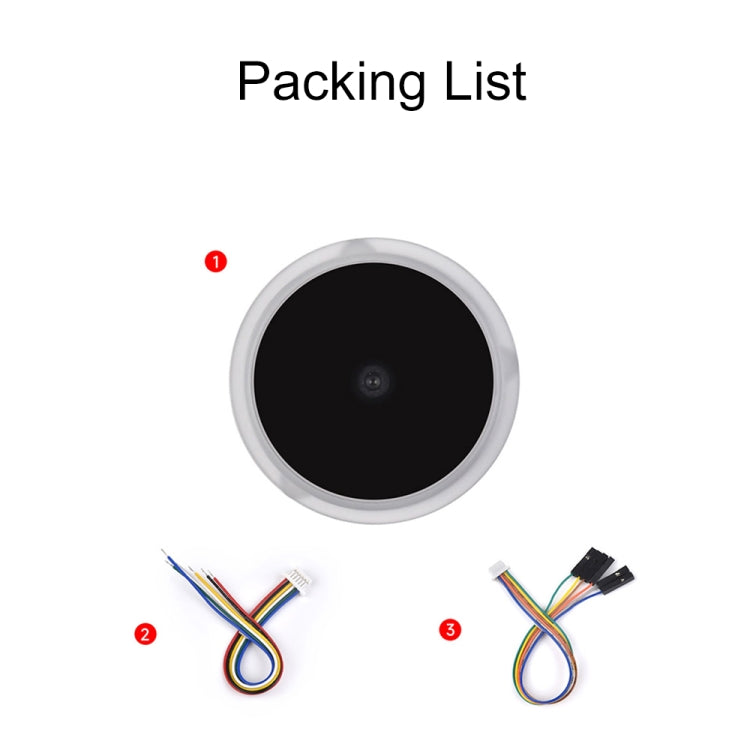

Packing list: -Barcode scanning module (D) x 1 -6PIN cable without header x 1 -6PIN cable x 1
