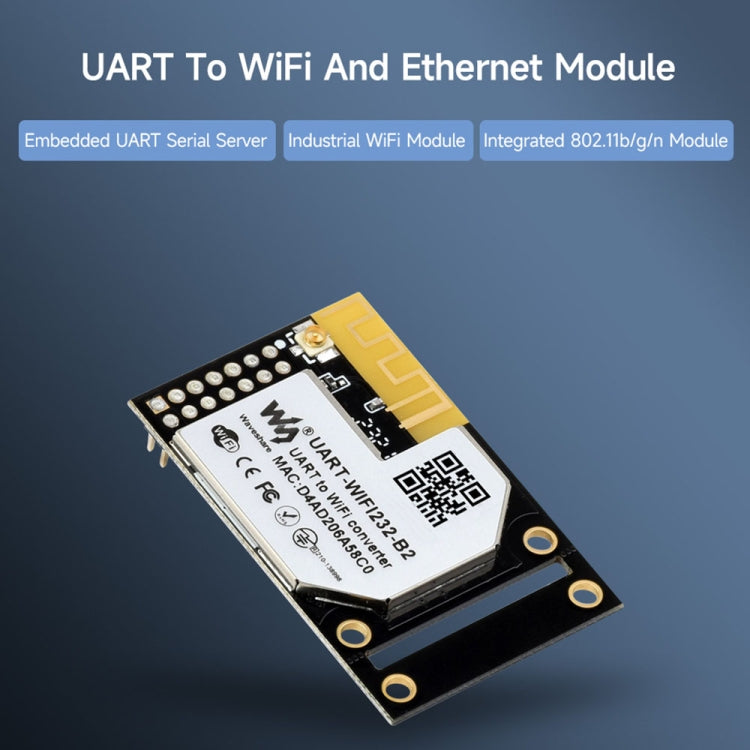

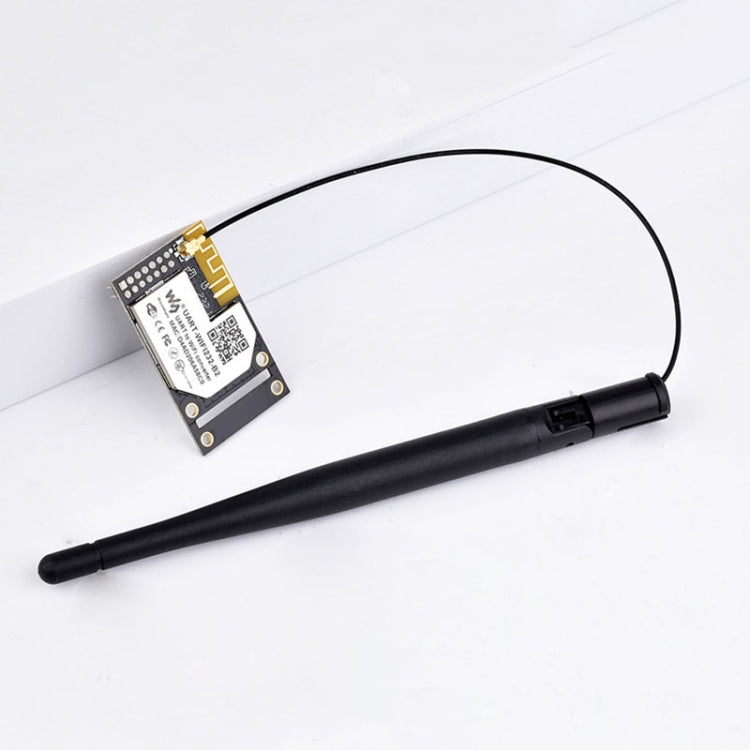

Waveshare 25116 UART to WiFi And Ethernet Module, Integrated 802.11b/g/n Module
Waveshare 25116 UART to WiFi And Ethernet Module, Integrated 802.11b/g/n Module
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Portal.
Features:

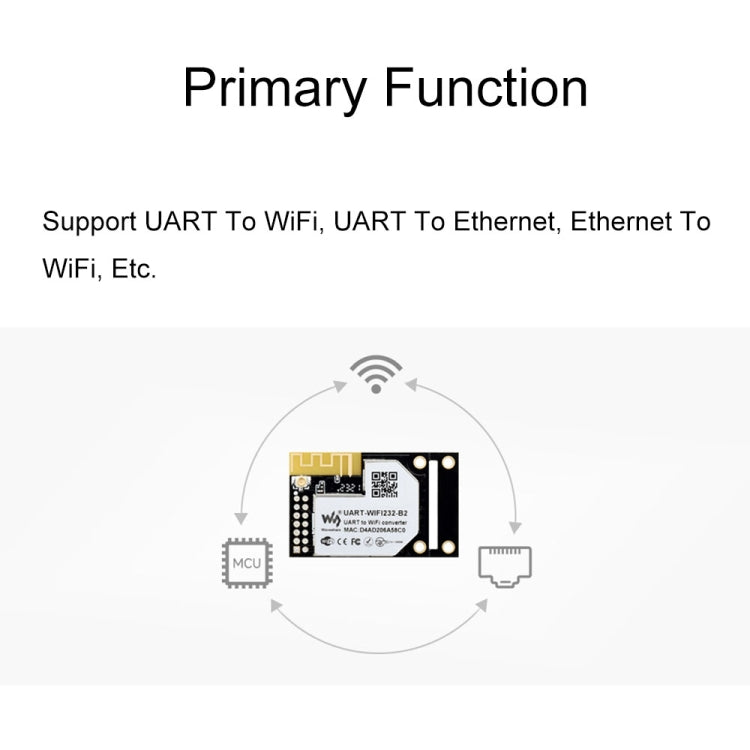

1. This is an industrial-grade integrated 802.11b/g/n module that can realize two-way transparent transmission of TTL serial port, WiFi, and network port.

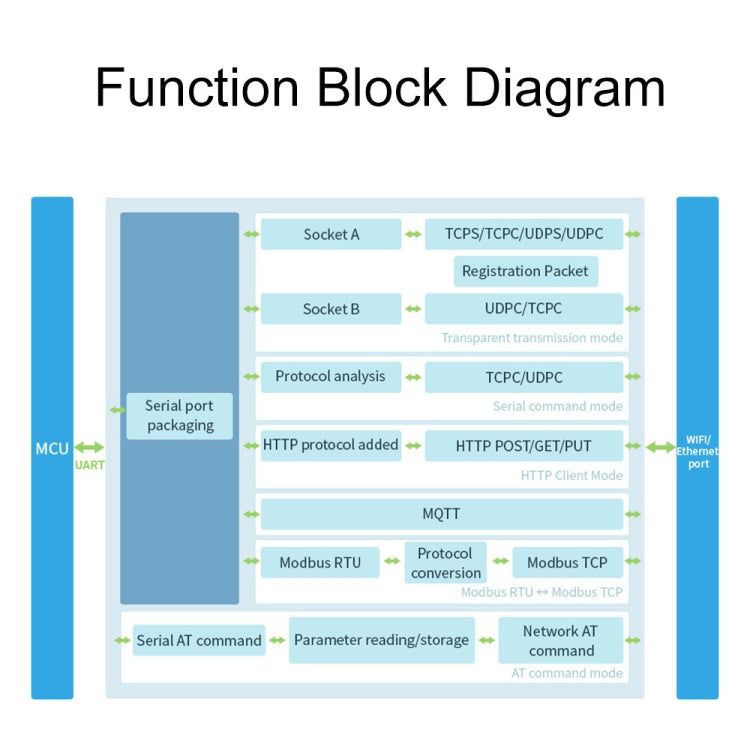

2. It integrates multiple functions into one, including serial port server, Modbus gateway, MQTT gateway, UART to HTTPD client, etc.
3. Traditional serial port devices or MCU control devices can quickly access WiFi wireless networks through this WiFi module.
4. Small size and easy to install.
5. Suitable for data collection, IoT gateway, security IoT, smart instrument monitoring and other applications
Product parameters:
1. Power supply: DC 3.3V

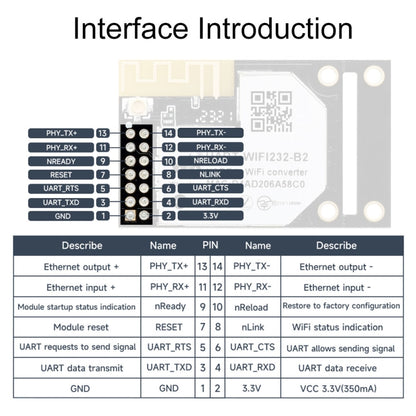

2. Power supply method: pin header

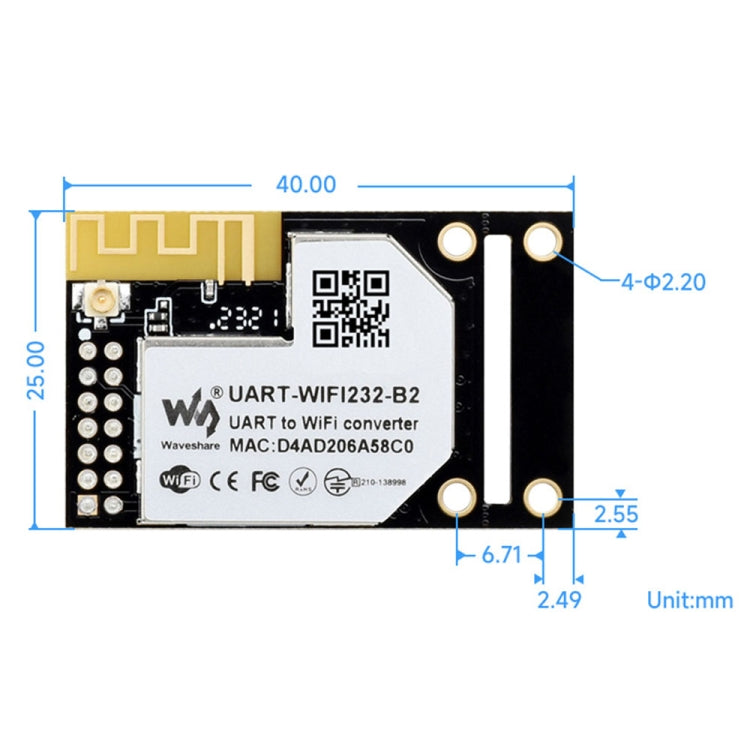

3. Dimensions: 25 x 40 x 8mm
4. Ethernet: 10/100M auto-negotiation (connected through pin header)
5. WIFI: Complies with 802.11b/g/n
6. Serial port: UART
7. Frequency band: 2.412-2.484 GHz
8. Wireless network: Station / AP / AP+Station mode
9. Security mechanism: WPA-PSK / WPA2-PSK
10. Encryption type: TKIP/AES
11. Transmission power:
802.11b: +19dBm (max @11Mbps)
802.11g: +18dBm (max @54Mbps)
802.11n: +17dBm (maximum @HT20, MCS7); +17dBm (maximum @HT40, MCS7)
12. Receiving sensitivity:
802.11b: -89dBm (@11Mbps)
802.11g: -81dBm (@54Mbps)
802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)
13. Baud rate: 300-460800 bps
14. Check digit: none, odd, even, mark, space
15. Data bits: 5-9 bits
16. Flow control: RTS/CTS
17. Protocol: TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP/MQTT

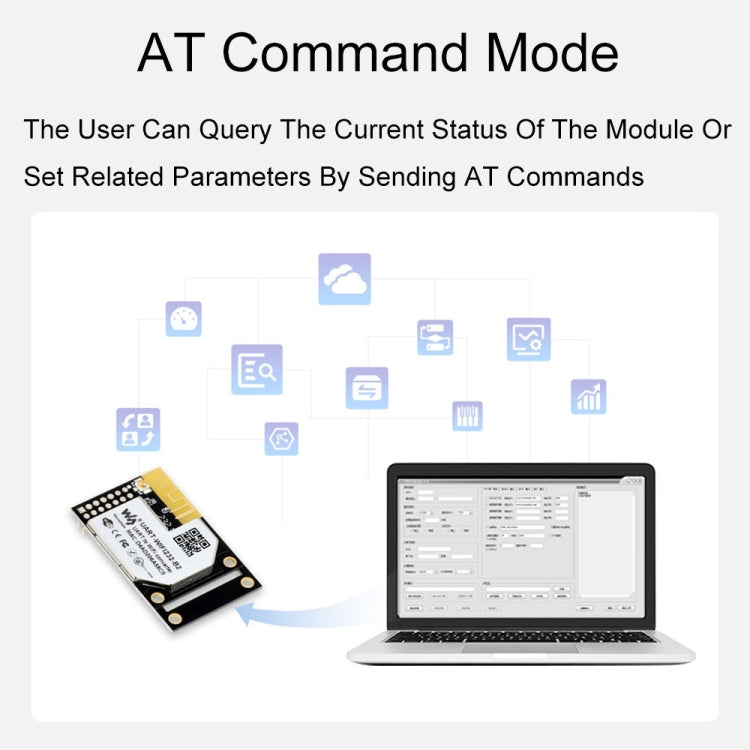

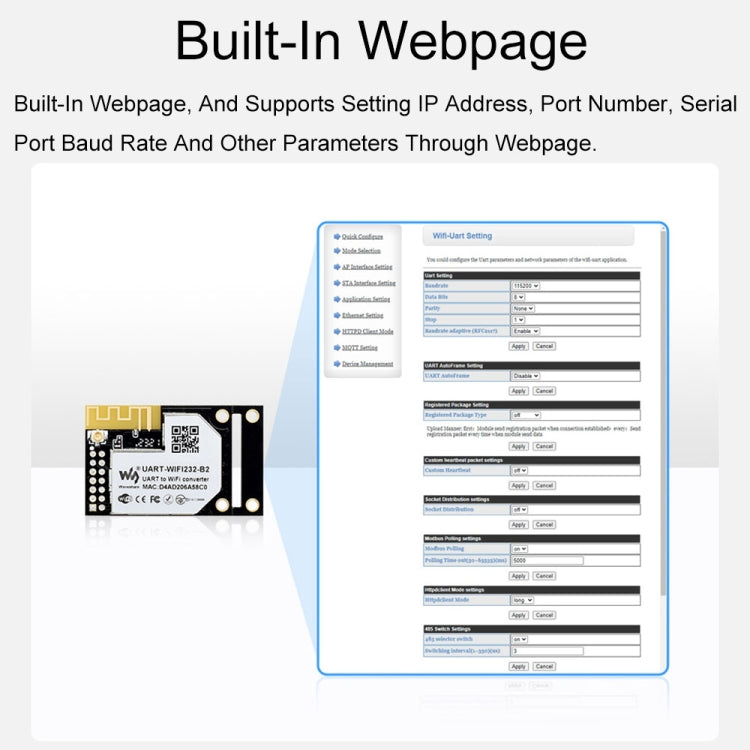

18. Configuration: host, browser, serial AT command
19. Communication method: TCP/IP direct communication, VCOM
20. Working mode: transparent transmission, serial port command, HTTPD Client, Modbus TCP to Modbus RTU
21. Operating temperature: -40 to 85 degrees Celsius
22. Humidity range: 5% to 95%
