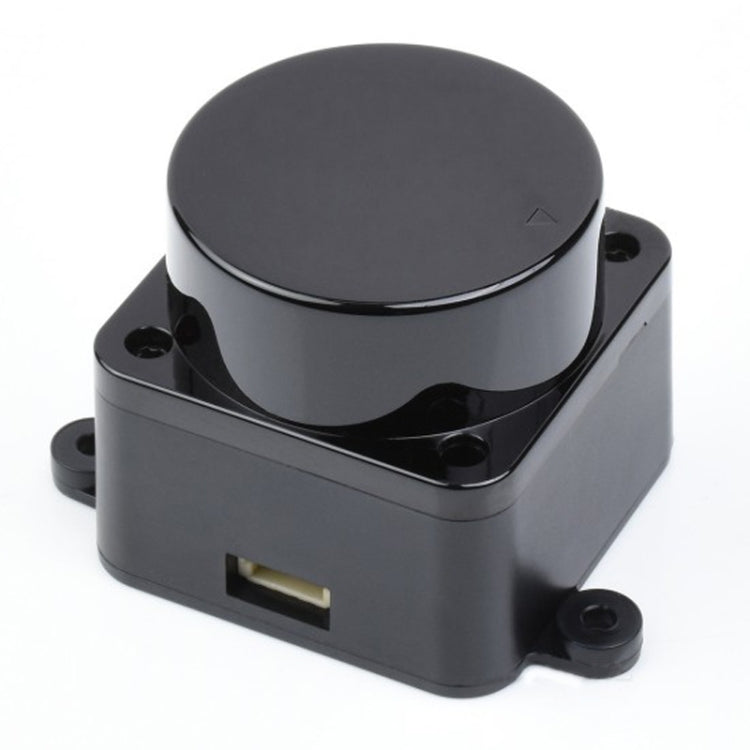

Waveshare 24782 DTOF Laser Lidar Sensor STL27L, 360 Degree Omni-Directional Lidar, UART Bus

Name: Waveshare 24782 DTOF Laser Lidar Sensor STL27L, 360 Degree Omni-Directional Lidar, UART Bus
Brand: Waveshare
SKU: TBD05765285
Availability: InStock

$199.00

Sale Sold out

In Stock - Ships in 1-3 Days

Estimated delivery:

Free Shipping

30-Day Returns

1-Year Warranty

Shipping Information

FREE SHIPPING to UK & 40+ countries. Fully insured.

Delivery: Estimated times shown at checkout based on your location (typically 6-13 days total including 1-3 days handling)

No hidden fees on orders under £135 (orders over £135 may have import duties)

Ships from China via tracked DDP service. Order by 12 AM London time for next-day dispatch.

Full shipping policy →

30-Day Money-Back Guarantee

Return unused items within 30 days (you pay return shipping). Faulty items covered at no cost to you.

Full policy →

Right Part Guarantee

Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.

Hassle-Free Returns

Start your return online in seconds. No forms, no hassle.

Return portal →.

Trusted by 80,000+ DIY & repair professionals

1. Ranging distance: 0.03-2M, 2-8M, greater than 8M
2. Average error: 15mm, 20mm, 30mm
3. Overall standard deviation: 5mm, 15mm, 25mm
4. Ranging distance: 0.03~25.00m (target surface reflectivity is 80.6%)
5. Scanning frequency: 10Hz
6. Scanning angle: 360°
7. Ranging frequency: 21600Hz
8. Angular resolution: 0.167°
9. Wavelength: 895-915 nm (Typ 905)
10. Communication interface: UART@921600
11. Ambient light intensity: 60 KLux
12. Power supply: 4.5-5V (typically 5V)
13. Power consumption: 1.45W
14. Working current: 290mA
15. Working temperature: minus 10-50 degrees Celsius
16. Service life: 10000H
17. Dimensions: 34.8 x 54 x 46.29mm
18. Product weight: 46.1 grams

Packing list:
-DTOF lidar STL27L x 1
-LiDAR driver x 1 with ESP8266 adapter
-1m USB Type-A to Type-C cable x 1
-11cm PH2.0 to 1.27H cable x 1
