Waveshare 24095 GNSS Active Ceramic Positioning Antenna, IPEX 1 Connector

Name: Waveshare 24095 GNSS Active Ceramic Positioning Antenna, IPEX 1 Connector
Brand: Waveshare
SKU: TBD04211317
Availability: InStock

$16.00

Sale Sold out

In Stock - Ships in 1-3 Days

Estimated delivery:

Free Shipping

30-Day Returns

1-Year Warranty

Shipping Information

FREE SHIPPING to UK & 40+ countries. Fully insured.

Delivery: Estimated times shown at checkout based on your location (typically 6-13 days total including 1-3 days handling)

No hidden fees on orders under £135 (orders over £135 may have import duties)

Ships from China via tracked DDP service. Order by 12 AM London time for next-day dispatch.

Full shipping policy →

30-Day Money-Back Guarantee

Return unused items within 30 days (you pay return shipping). Faulty items covered at no cost to you.

Full policy →

Right Part Guarantee

Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.

Hassle-Free Returns

Start your return online in seconds. No forms, no hassle.

Return portal →.

Trusted by 80,000+ DIY & repair professionals

1. GNSS active ceramic positioning antenna supports BD, GPS, GLONASS and other satellite positioning systems
2. Center frequency: 1575.42MHz, 1561MHz, 1602.56MHz
3. Output impedance: 50 ohms
4. Noise: less than or equal to 1.5 decibels
5. Plug: IPEX 1
6. Cable length: 35mm

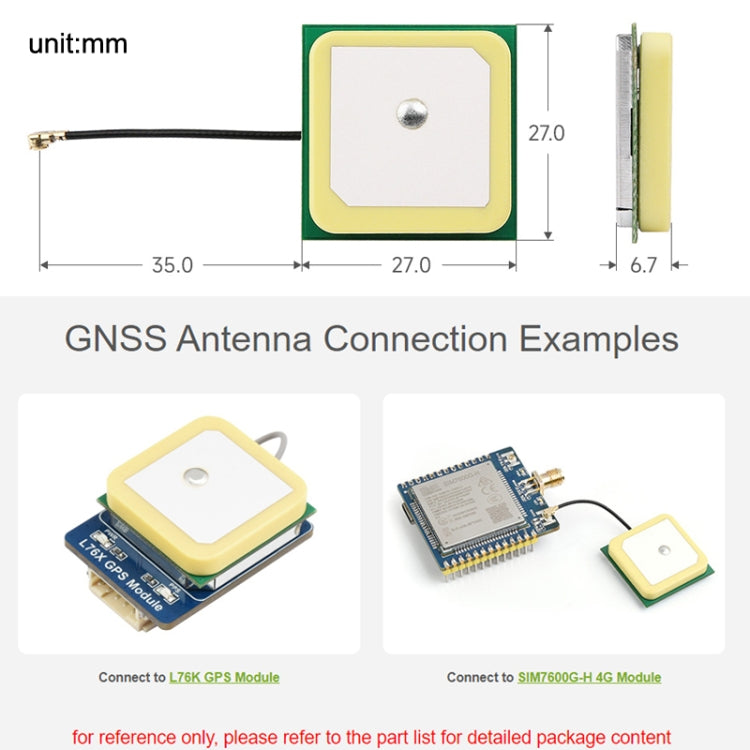

7. Ceramic size: 25 x 25mm
8. Current consumption: less than 10mA
9. Power supply: DC 3.3-5v
10. Operating temperature: -20 to 65 degrees Celsius
11. Input power: 50w
12. Axial ratio: 3dB
13. Radiation direction: omnidirectional
