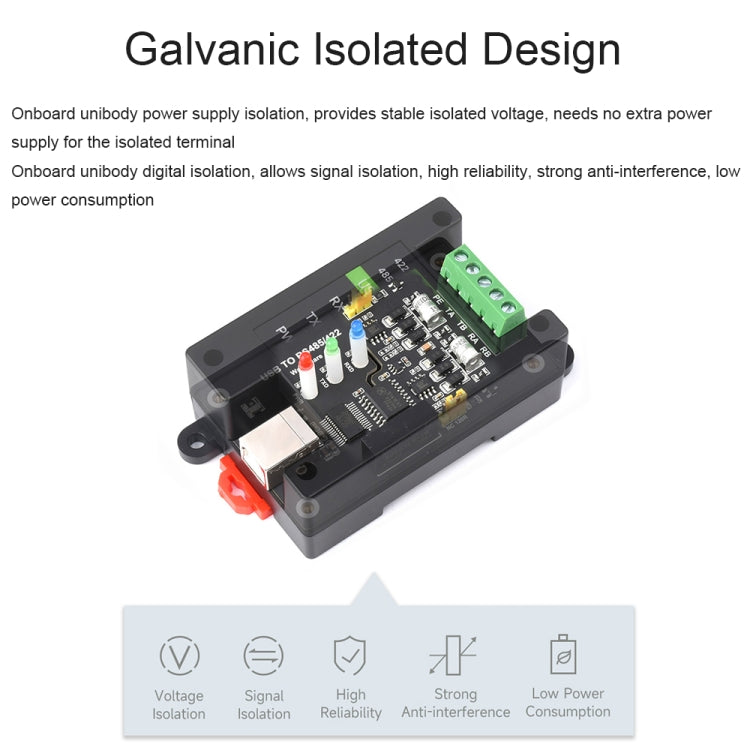

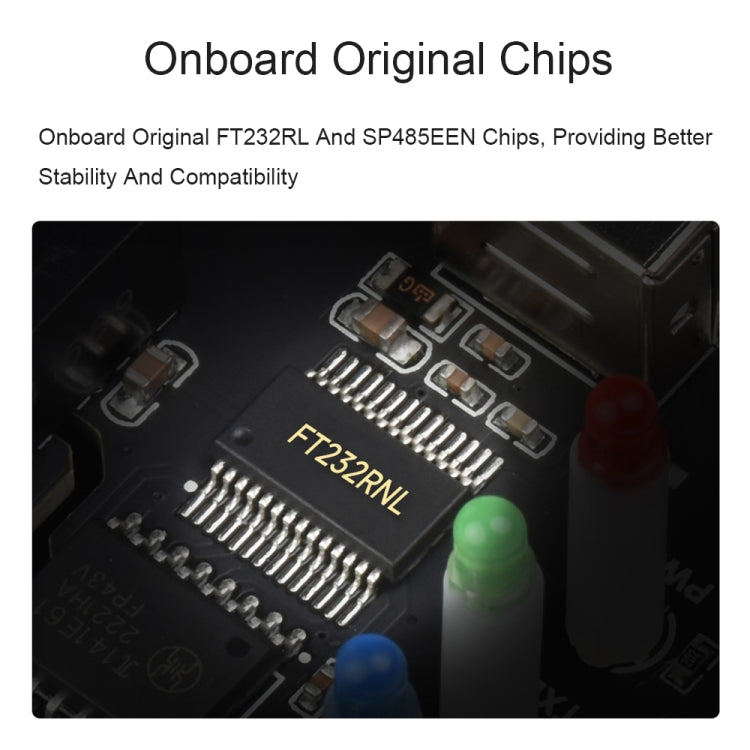

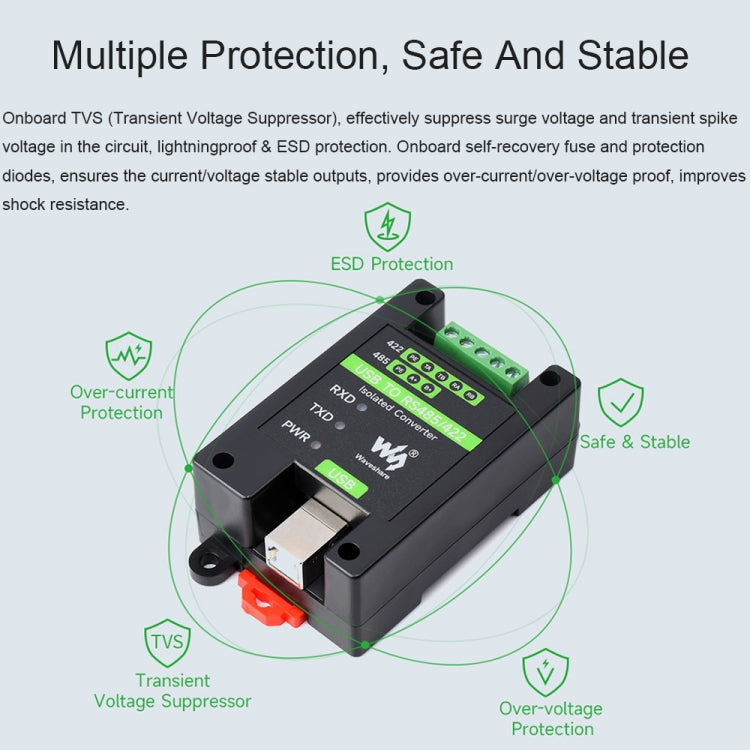

Features: 1. Onboard original FT232RL and SP485EEN chips; fast communication speed, stable and reliable, better compatibility 2. On-board integrated power isolation, providing stable isolation voltage, no additional power supply is required at the isolation end 3. Onboard integrated digital isolation, signal isolation, high reliability, strong anti-interference, low power consumption 4. Onboard TVS (Transient Voltage Suppressor), effectively suppressing surge voltage and transient peak voltage in the circuit, lightning protection and anti-static 5. On-board self-recovery fuse and protection diode to ensure stable current/voltage output, provide over-current/over-voltage protection, and improve impact resistance 6. Onboard 15KV ESD isolation protection and 600W lightning surge protection 7. The RS485/RS422 interface has a 120R terminal resistor on board, which is enabled by default and can be configured by jumpers 8. 3 LEDs to indicate power and transceiver status 9. Industrial-grade rail-type ABS shell design, small size, easy installation, high cost performance

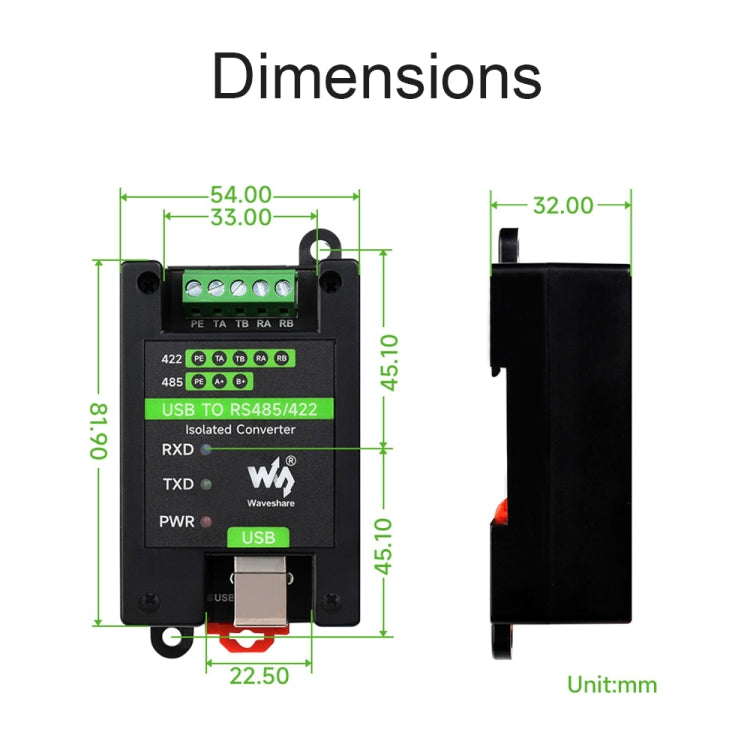

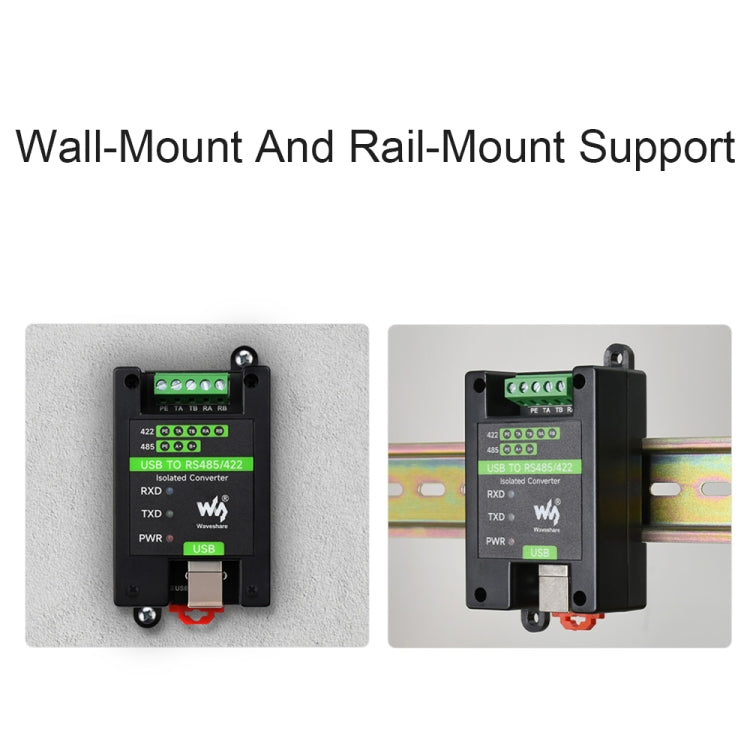

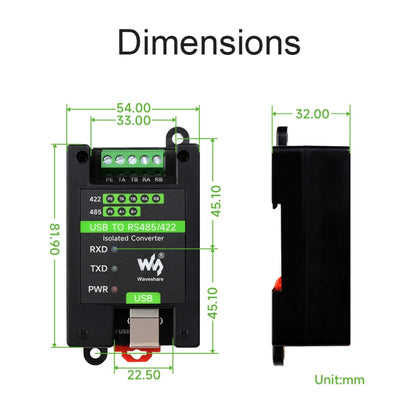

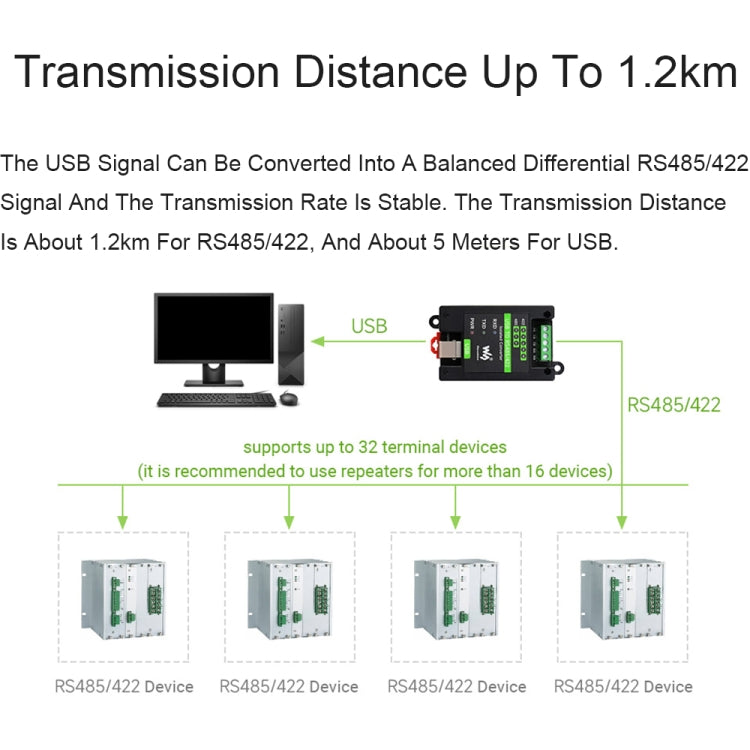

Product parameters: 1. Baud rate: FT232RNL (300bps-3Mbps) 2. Host port: USB 3. Device port: RS485/422 4. Working voltage: 5V 5. Connector: USB-B 6. Protection: 200mA resettable fuse, ESD protection 7. Transmission distance: about 5m 8. Connector: screw terminal 9. Pins: A+, B-, PE 10. Direction control: hardware automatic control 11. Protection: 600W lightning protection surge suppression, 15KV ESD protection (120R balance resistor on board) 12. Transmission distance: about 1.2km (low speed) 13. Transmission method: point-to-multipoint (MAX32 nodes, repeaters are recommended for more than 16 nodes) 14. LED indicator light: PWR: red power indicator light, it is on when there is a USB connection and voltage is detected; TXD: green TX indicator light, it is on when the USB port sends data; RXD: blue RX indicator light, when the device port sends data back lights up 15. Working environment temperature: minus 15-70 degrees Celsius 16. Humidity: 5%-95% RH 17. Operating system: Mac, Linux, Android, WinCE, Windows 10 / 8.1 / 8 / 7 / XP 18. Shell: rail type ABS shell, suitable for 35mm DIN rail 19. Product size: 81.9 × 54.0 × 32.0mm 20. Weight: 104 grams
Packing list: -USB to RS485/422 x 1 -1.2mUSB-A to USB-B cable x 1 -Screwdriver x 1
