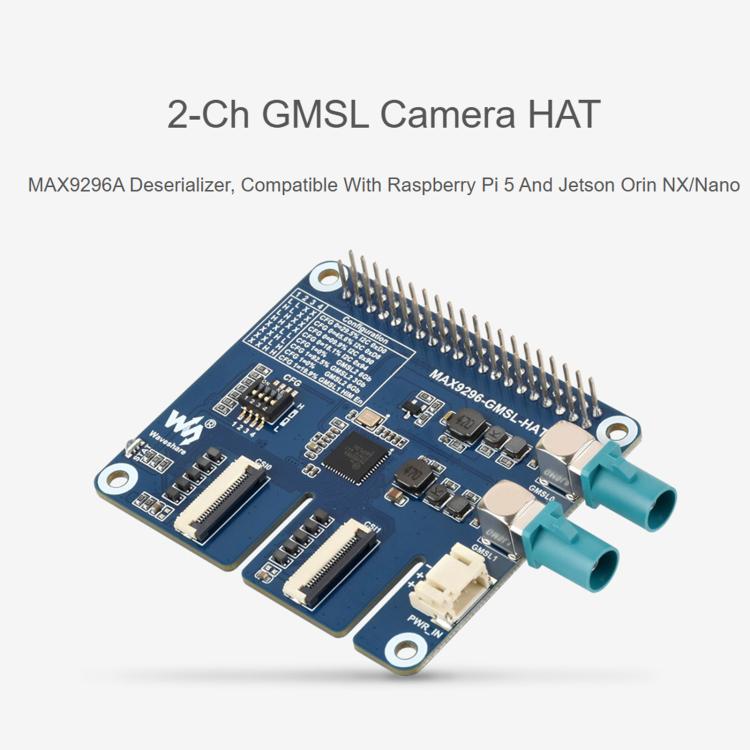

Waveshare 2-Ch GMSL Camera HAT With MAX9296A Deserializer Compatible With Raspberry Pi 5 And Jetson Orin NX/Nano
Waveshare 2-Ch GMSL Camera HAT With MAX9296A Deserializer Compatible With Raspberry Pi 5 And Jetson Orin NX/Nano
SKU: TBD06069321
Regular price
$157.00
Regular price
Sale price
$157.00
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Quantity
Couldn't load pickup availability
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.

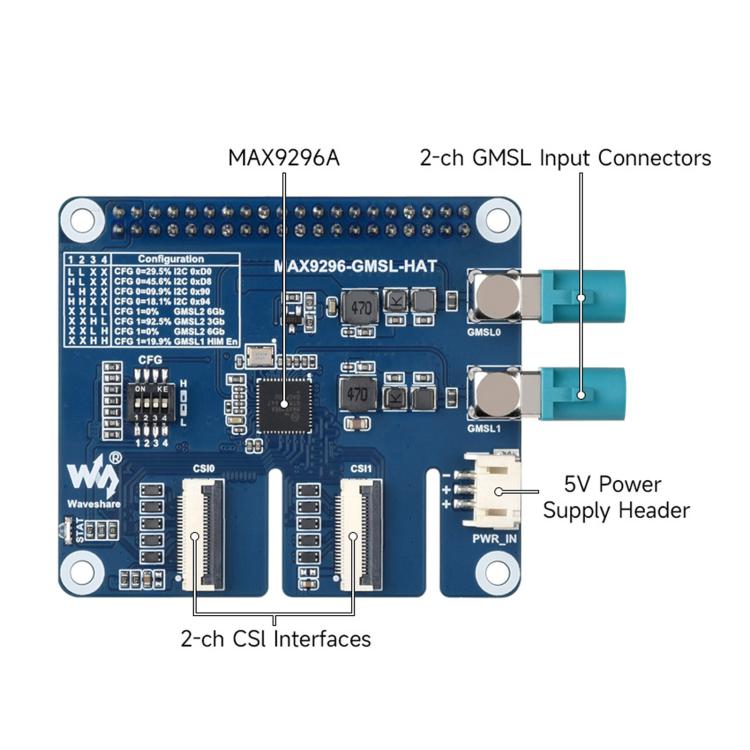

1. The MAX9296-GMSL-HAT is a GMSL camera HAT that allows up to two GMSL cameras to be connected to the host board such as Raspberry Pi 5, Jetson Orin Nano and Jetson Orin NX. Compatible with both GMSL1 and GMSL2 protocol interfaces through software configuration. Adopts MAX9296A chip, specially designed for applications that require high-bandwidth and low-latency video transmission. Suitable for automatic driving, machine vision, intelligent security and other fields.
Specifications:
1. Deserializer: MAXIM (ADI) MAX9296A
2. Supported Mainboards: Compatible with Raspberry Pi 5 / Jetson Orin NX / Nano development kits
3. Supported Serializer Models: MAX9295, MAX96717, MAX96705, etc.
4. GMSL Input: 2 x GMSL2 (GMSL1 compatible) cameras
5. Input Interface: 2 × MATE_AX FAKRA Z connectors
6. Output Interface: 22-pin CSI interface
7. Supported GMSL Camera Models: ISX031, etc.
8. Power Supply: 5V
Verified Compatible
