Waveshare 1.69 Inch 240×280 Resolution IPS LCD Display Module With SPI Interface

Waveshare 1.69 Inch 240×280 Resolution IPS LCD Display Module With SPI Interface

$22.00
$22.00
Sale Sold out
CYBER WEEK SALE

Exclusive Deals End Soon!

Save 5% on 2+ Items • Save 10% 3+ Items • Save 15% on 10+ Items

Applies automatically in cart & checkout • No code needed

00 Days
00 Hours
00 Minutes
00 Seconds
In Stock - Ships in 1-3 Days

Estimated delivery:

Free Shipping
30-Day Returns
1-Year Warranty

Shipping Information

FREE SHIPPING to UK & 40+ countries. Fully insured.

Delivery: Estimated times shown at checkout based on your location (typically 6-13 days total including 1-3 days handling)

No hidden fees on orders under £135 (orders over £135 may have import duties)

Ships from China via tracked DDP service. Order by 12 AM London time for next-day dispatch.

Full shipping policy →

30-Day Money-Back Guarantee

Return unused items within 30 days (you pay return shipping). Faulty items covered at no cost to you.

Full policy →

Right Part Guarantee

Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.

Hassle-Free Returns

Start your return online in seconds. No forms, no hassle.

Return portal →.

Trusted by 80,000+ DIY & repair professionals

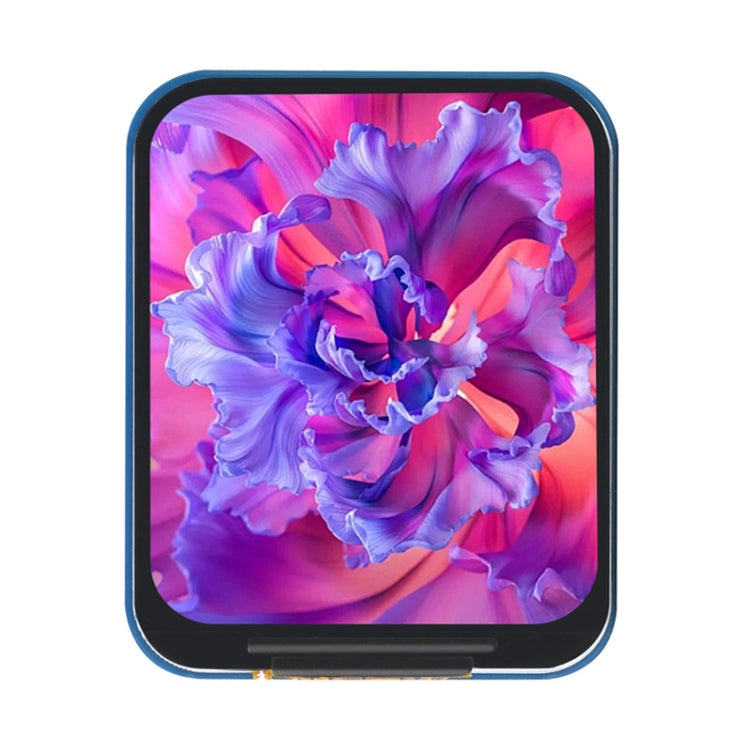

1. 1.69-inch LCD expansion board with built-in ST7789V2 driver chip
2. 240 × 280 resolution, 262K color, can clearly display color pictures

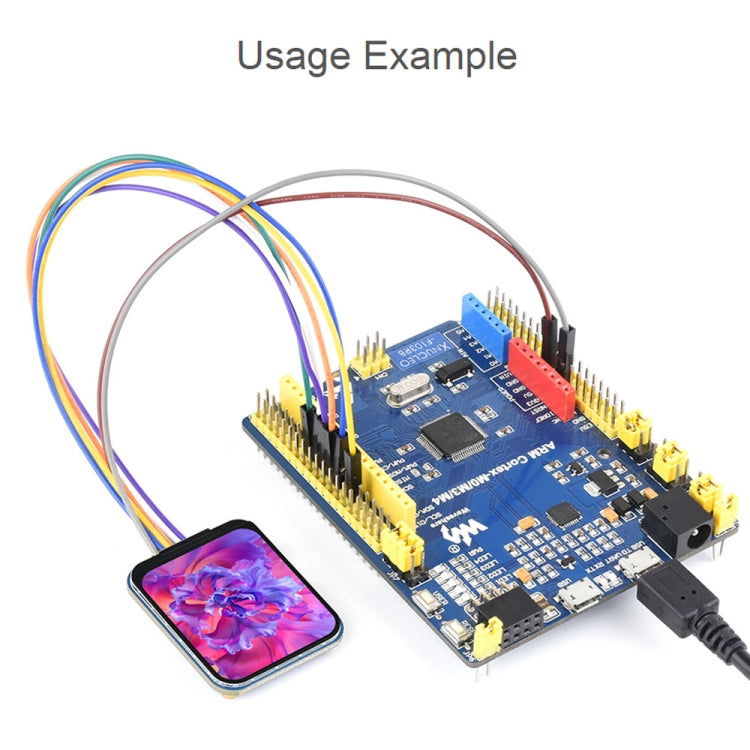

3. Use SPI control to ensure that too many interface pin resources are not occupied, and can be connected to main control boards such as Raspberry Pi / Arduino / STM32
4. Onboard level conversion chip, compatible with 3.3V / 5V power input
5. Provide complete supporting information manuals (sample programs such as Raspberry Pi / Arduino / STM32)

Parameter:
1. Working voltage: 3.3V / 5V
2. Resolution: 240 × 280 pixels
3. Communication interface: 4-wire SPI
4. Display size: 27.97 × 32.63mm
5. Display panel: IPS
6. Pixel size: 0.11655 × 0.11655mm
7. Control chip: ST7789V2
8. Product size: 31.50 × 39.00mm

Packing list:
-1.69 inch LCD module × 1
-GH1.25 8 PIN cable 20cm × 1
