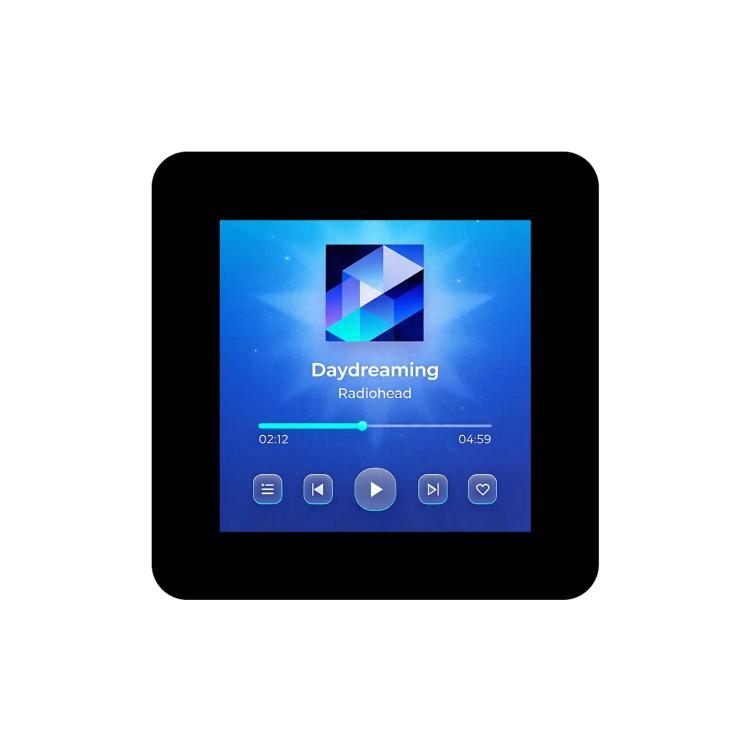

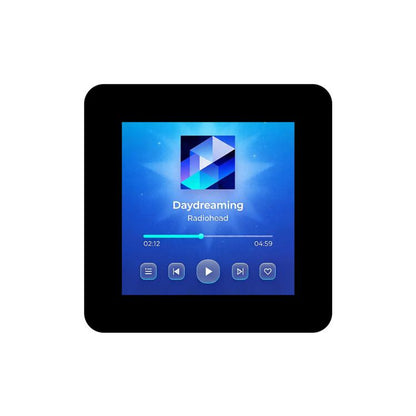

Waveshare 1.54inch Touch LCD Display Module 240×240 Resolution, IPS Panel, SPI And I2C Communication Interfaces
Waveshare 1.54inch Touch LCD Display Module 240×240 Resolution, IPS Panel, SPI And I2C Communication Interfaces
SKU: TBD06069406
Regular price
$36.00
Regular price
Sale price
$36.00
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Quantity
Couldn't load pickup availability
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.

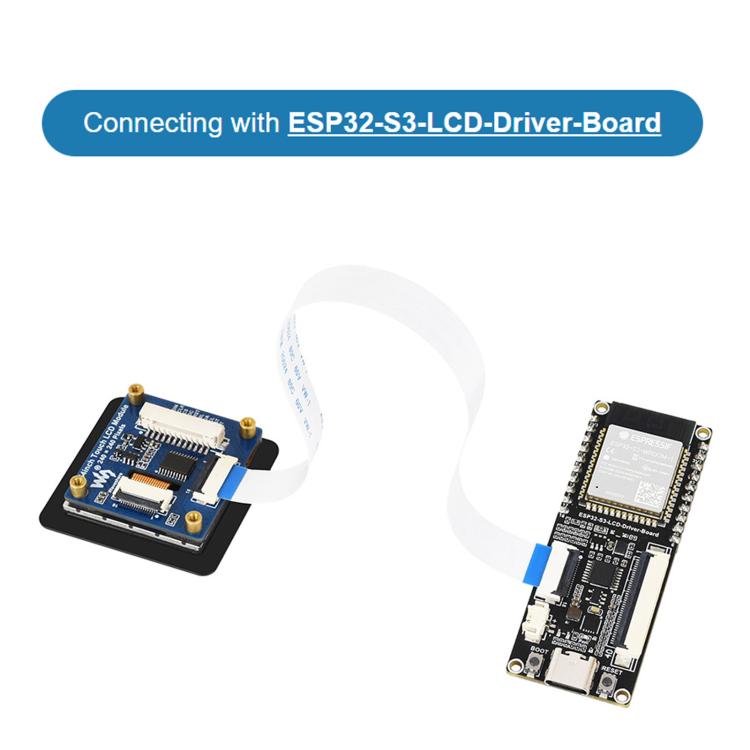

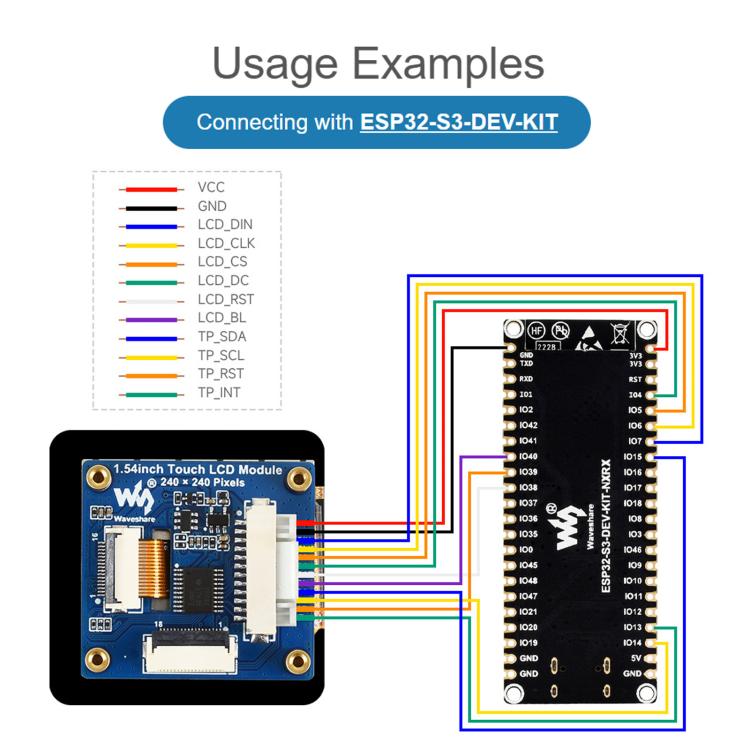

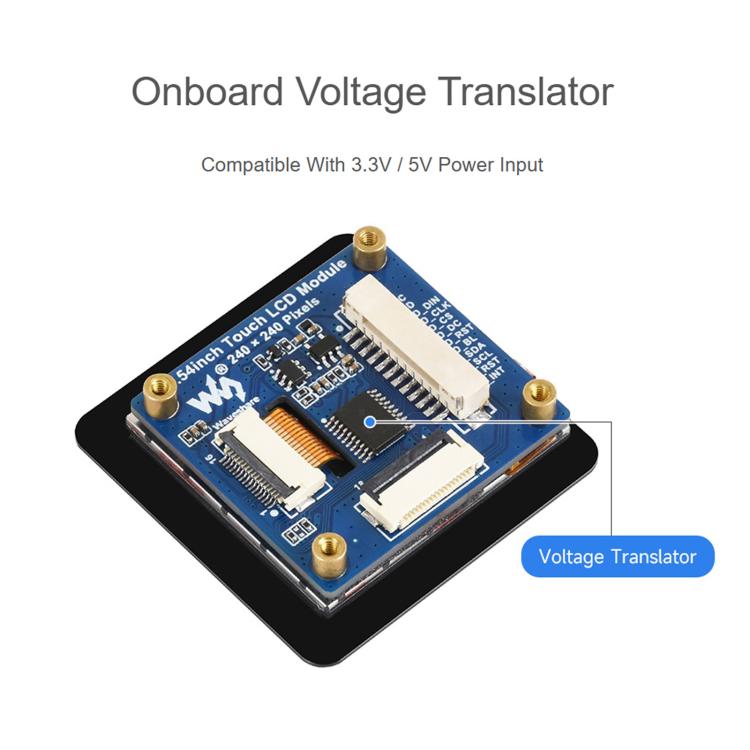

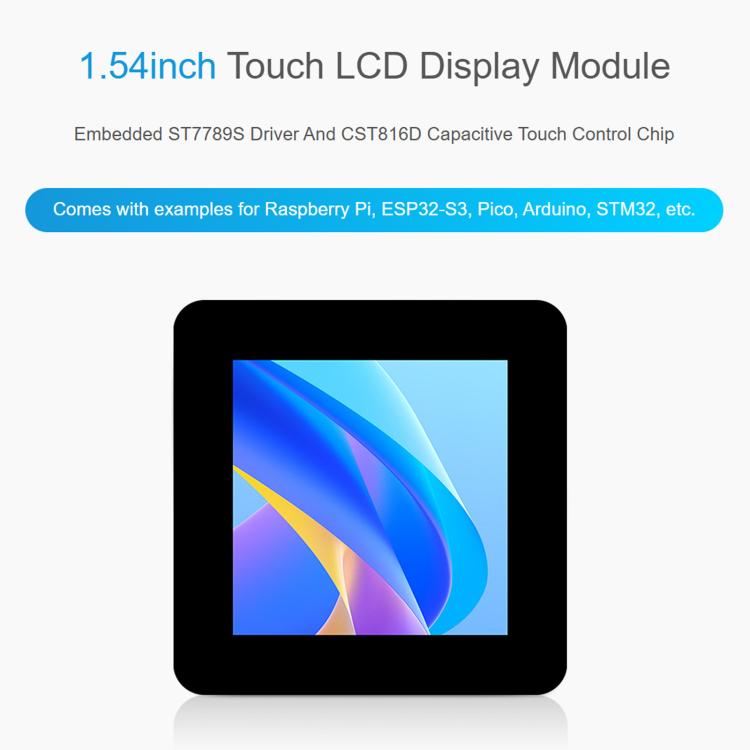

1. This is a 1.54inch IPS touch color display module featuring 240×240 high resolution, supporting 262K true color display. It delivers clear and delicate visuals with excellent performance. Equipped with a high-transmittance capacitive touch panel, it offers responsive touch sensing and long service life. The module integrates the ST7789S display driver IC and the CST816D capacitive touch IC, communicating via SPI and I2C interfaces respectively, which minimizes pin usage and simplifies hardware integration. An onboard level shifter ensures compatibility with both 3.3V and 5V power inputs, allowing seamless connection to mainstream controller platforms such as Raspberry Pi, ESP32, Pico, Arduino, and STM32.
2. Operating voltage: 3.3V / 5V
3. Resolution: 240 × 240 pixels
4. Display driver: ST7789S
5. Touch controller: CST816D

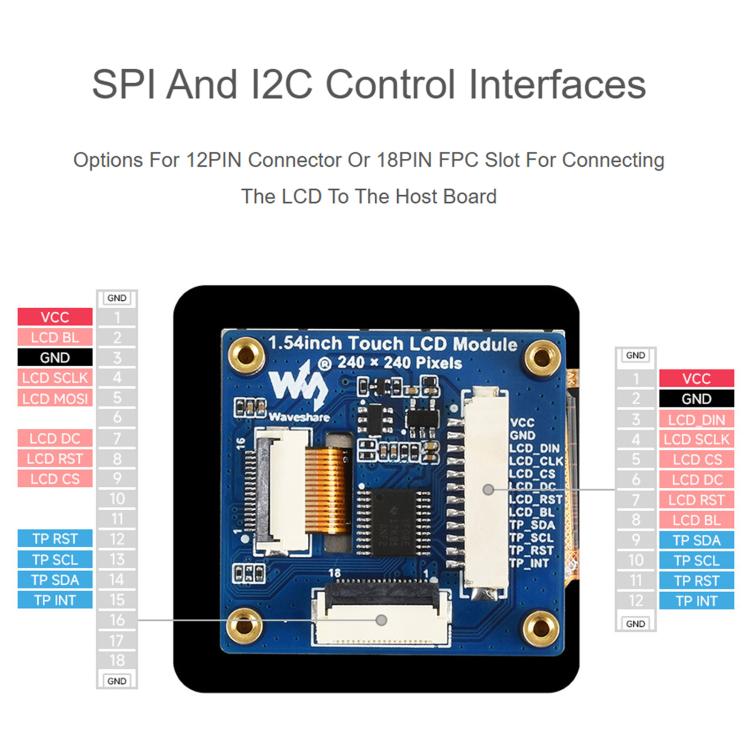

6. Display interface: 4-wire SPI
7. Touch interface: I2C
8. Display panel: IPS
9. Touch type: Capacitive
10. Display size: 27.72 × 27.72 mm
11. Pixel size: 0.1155 × 0.1155 mm

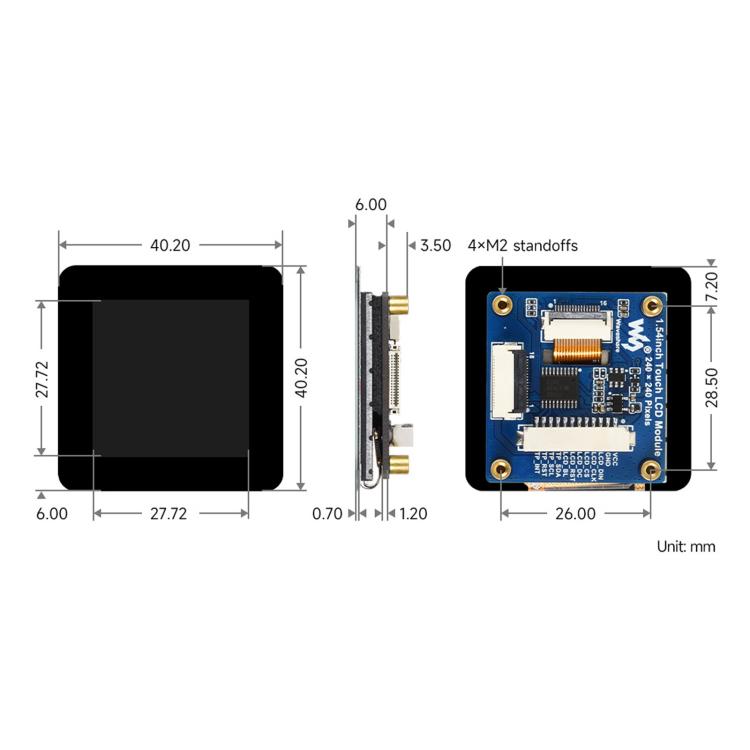

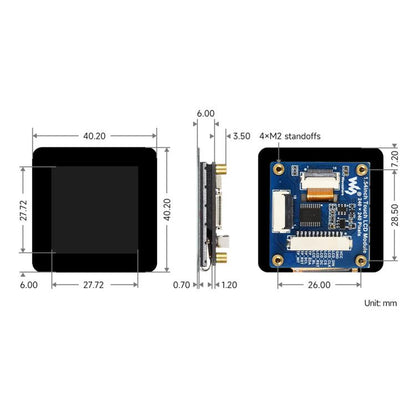

12. Product dimensions: 40.2 × 40.2 mm
