Waveshare 1.54 inch 200x200 E-Ink Display Module
Waveshare 1.54 inch 200x200 E-Ink Display Module
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.

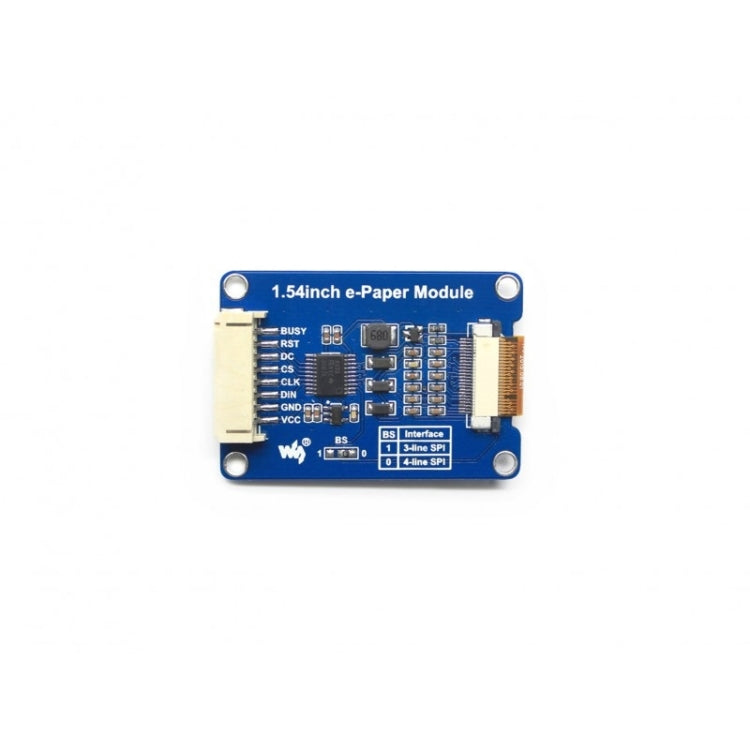

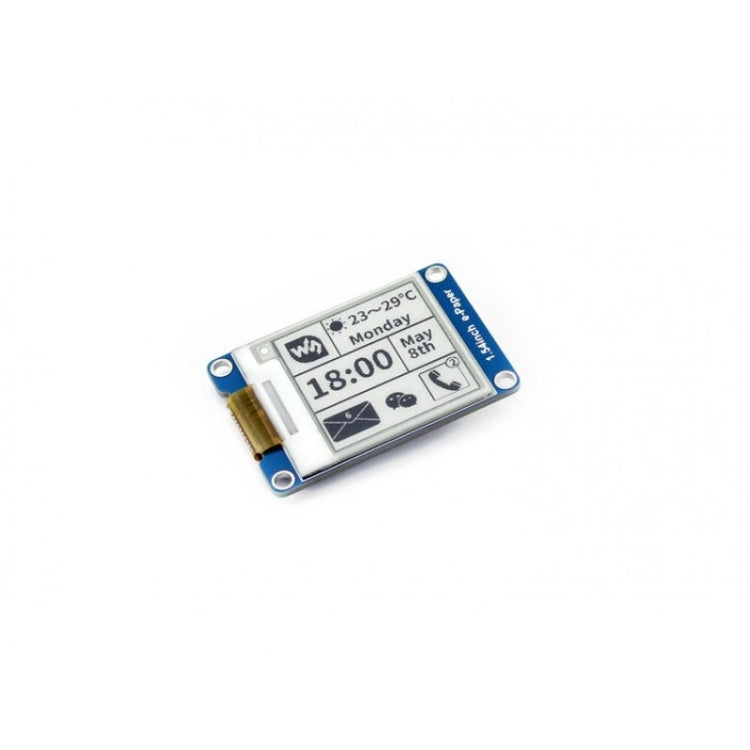

1. This is an E-Ink display module, 1.54inch, 200x200 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.
2. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
1. No backlight, keeps displaying last content for a long time even when power down
2. Ultra low power consumption, basically power is only required for refreshing
3. SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.
4. Onboard voltage translator, compatible with 3.3V/5V MCUs
5. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
1. Operating voltage: 3.3V/5V
2. Interface: 3-wire SPI, 4-wire SPI
3. Outline dimension: 48mm x 33mm
4. Display size: 27.6mm x 27.6mm
5. Dot pitch: 0.138 x 0.138
6. Resolution: 200 x 200
7. Display color: Black, white
8. Grey level: 2
9. Partial refresh time: 0.3s
10. Refresh power: 26.4mW(typ.)
11. Standby power: <0.017mW
12. Viewing angle: >170 degree
Package Contents
1. 1.54inch e-Paper Module x1
2. PH2.0 20cm 8 Pin x1
