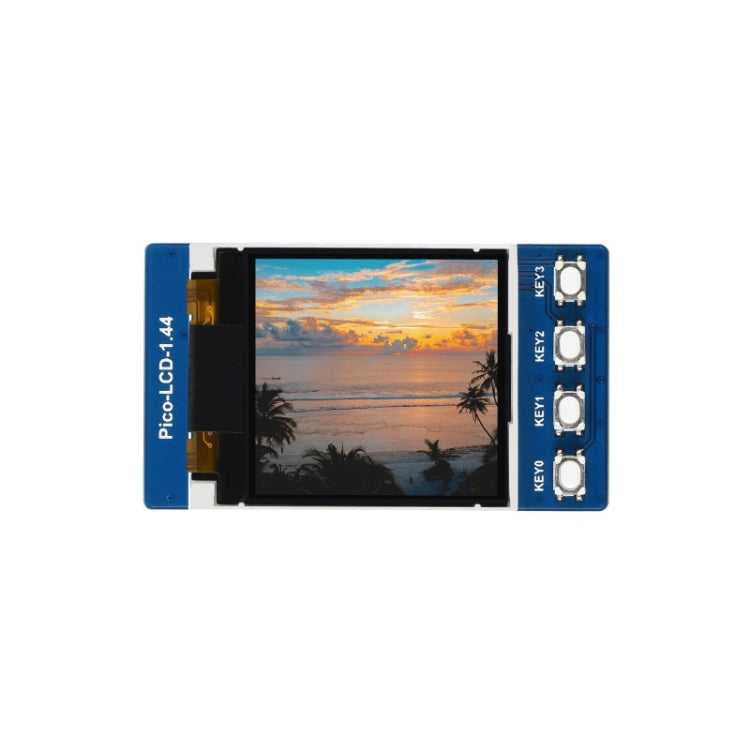

WAVESHARE 1.44 inch LCD 65K Colors 128 x 128 Display Module for Raspberry Pi Pico, SPI Interface
WAVESHARE 1.44 inch LCD 65K Colors 128 x 128 Display Module for Raspberry Pi Pico, SPI Interface
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Portal.
1. 128 x 128 resolution, 65K RGB colors, clear and colorful displaying effect
2. SPI interface, requires minimal IO pins
3. 4x user buttons for easy interacting
4. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

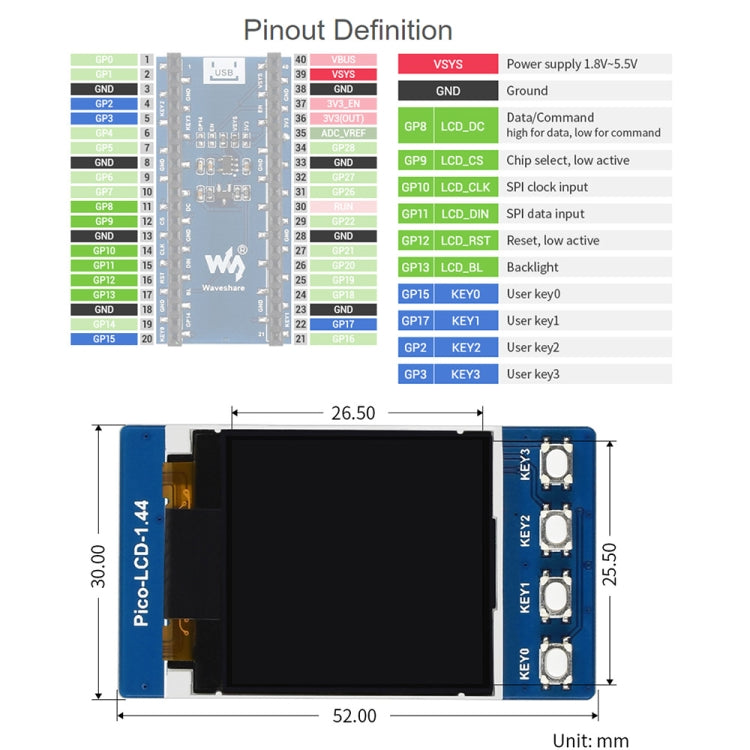

Specification
1. Operating voltage: 3.15V ~ 5V
2. Communication Interface: 4-wire SPI
3. Resolution: 128 x 128 pixels
4. Display color: 65K colorful
5. Communication BUS: SPI
6. Display panel: TFT
7. Display size: 25.50 x 26.50 mm
8. Pixel size: 0.20 x 0.20 mm
9. Driver: ST7735S
10. Size: 52.0 x 30.0 mm
