Vgate
Vgate iCar3 Super Mini OBDII Bluetooth V3.0 Car Scanner Tool, Support Android OS, Support All OBDII Protocols(Black)
Vgate iCar3 Super Mini OBDII Bluetooth V3.0 Car Scanner Tool, Support Android OS, Support All OBDII Protocols(Black)
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Portal.

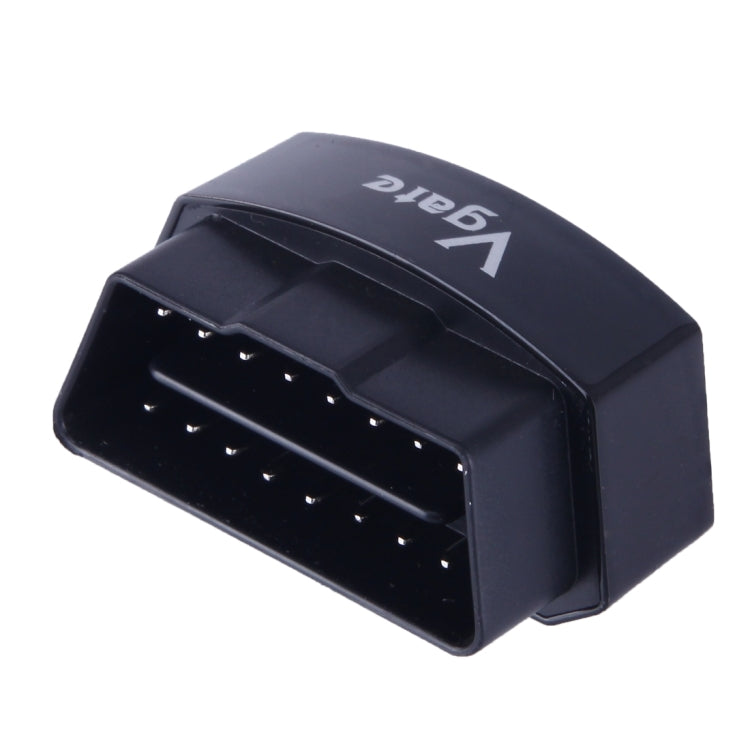

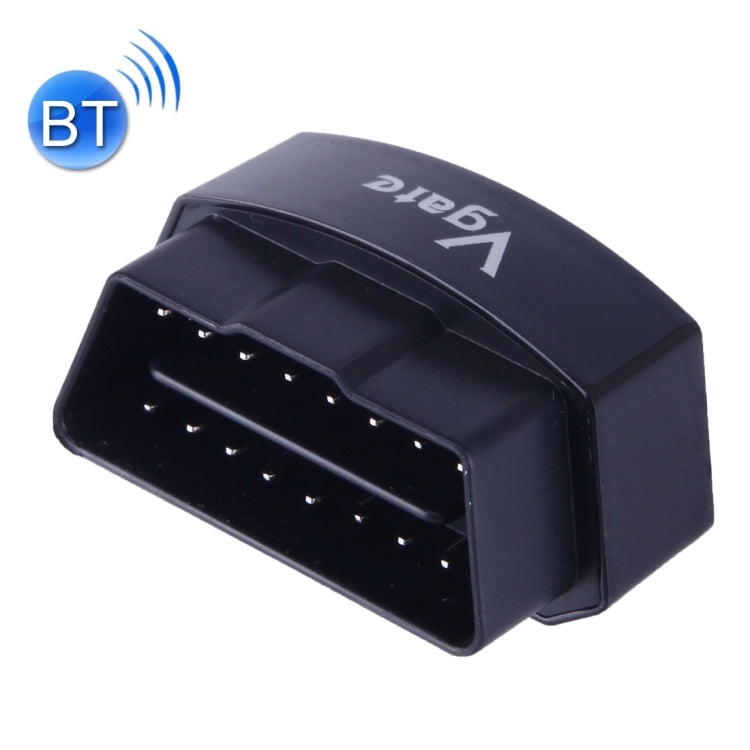

The device is a small adapter that plugged into the vehicle OBD-connector. On Bluetooth, it connects to any computer, tablet or smartphone, With associated diagnostic procedures. Doing these simple operations, you will be able:
1. Read, erase and display code descriptions problems - both standard and spetskodov manufacturers.
2. Measure the fuel consumption.

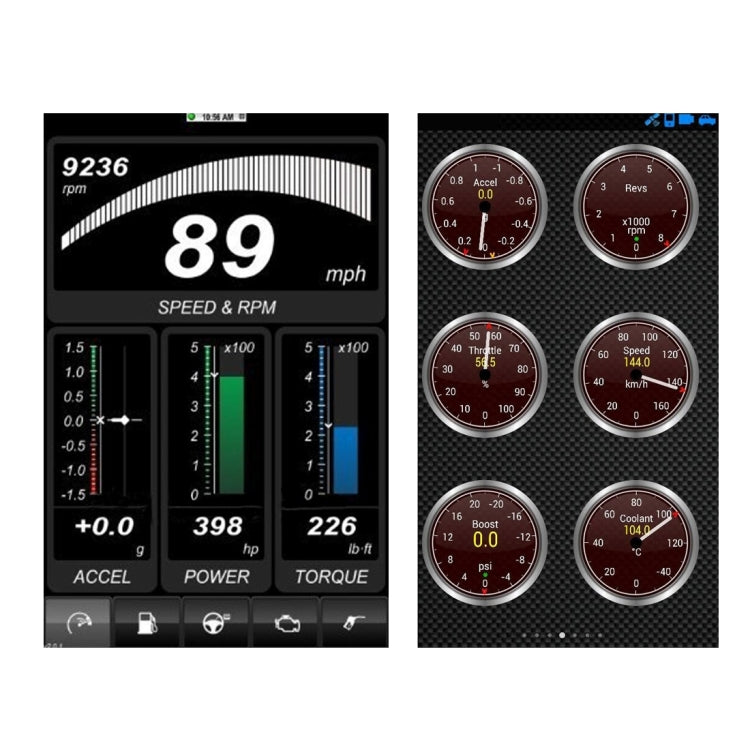

3. Display real-time operating performance of the car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors, air intake temperature, and more.
4. Turn off the MIL (signal Check Engine).
5. Download data to external media in a variety of formats for later printing.

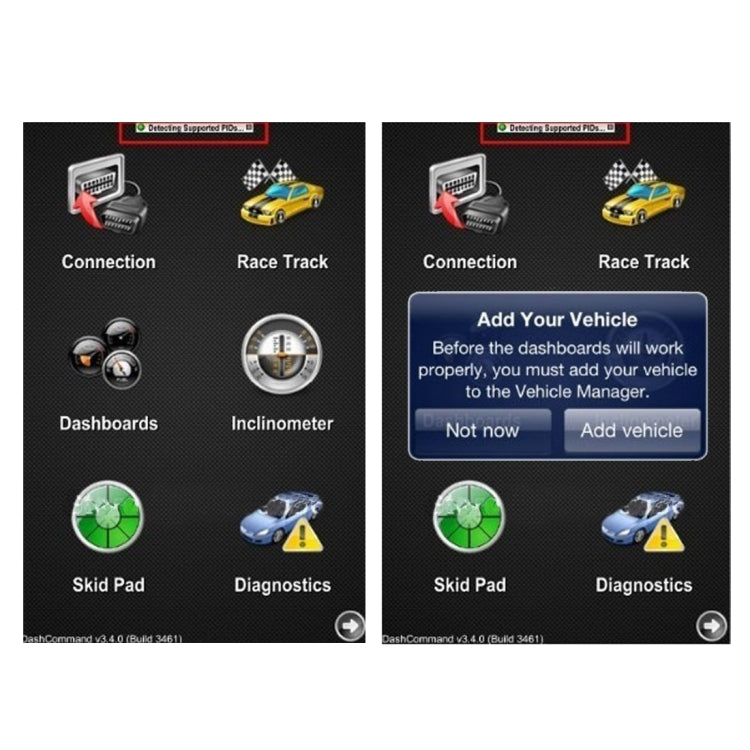

6. Record various parameters, display graphics in real time, and more.
Features
1. Supply voltage(VDD): 12V
2. Work temperature range: -20 ~ +70C
3. Storage temperature range: -40 ~ +125C
4. RF sensitivity(Basic Rate): -85db
5. Modulation Mode: GFSK
6. Frequency Range: 2402 ~ 2480MHZ
7. Transmission Range: 10M
8. Bluetooth Profile: SPP
9. UART Params: 38400, 8, n, 1
10. Small size, compact structure. Plug and never unplug
11. Stable wireless connection
12. No wires or batteries (adapter is powered by the diagnosis size sockets)
13. Stop communication, wait half an hour, auto sleep
14. Supports all OBDII protocols
15. The adapter uses the fastest and most reliable ARM chips
16. With iCar3 you will be able to perform a complete computer diagnostics car and even to correct minor faults without resorting to service stations.
17. iCar 3 scan tool is a high-quality automotive scanning tool, supports all OBD-II
Protocols
1. SAE J1850 PWM(41.6Kbaud)
2. SAE J1850 VPW(10.4Kbaud)
3. ISO9141-2(5 baud init,10.4Kbaud)
4. ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5. ISO14230-4 KWP(fast init,10.4 Kbaud)
6. ISO15765-4 CAN(11bit ID,500 Kbaud)
7. ISO15765-4 CAN(29bit ID,500 Kbaud)
8. ISO15765-4 CAN(11bit ID,250 Kbaud)
9. ISO15765-4 CAN(29bit ID,250 Kbaud)
10. SAE J1939 CAN(29bit ID,250*Kbaud)
11. USER1 CAN(11*bit ID,125*Kbaud)
12. USER2 CAN(11*bit ID,50*kbaud)
13. Automatic
14. Default settings(user adjustable)
