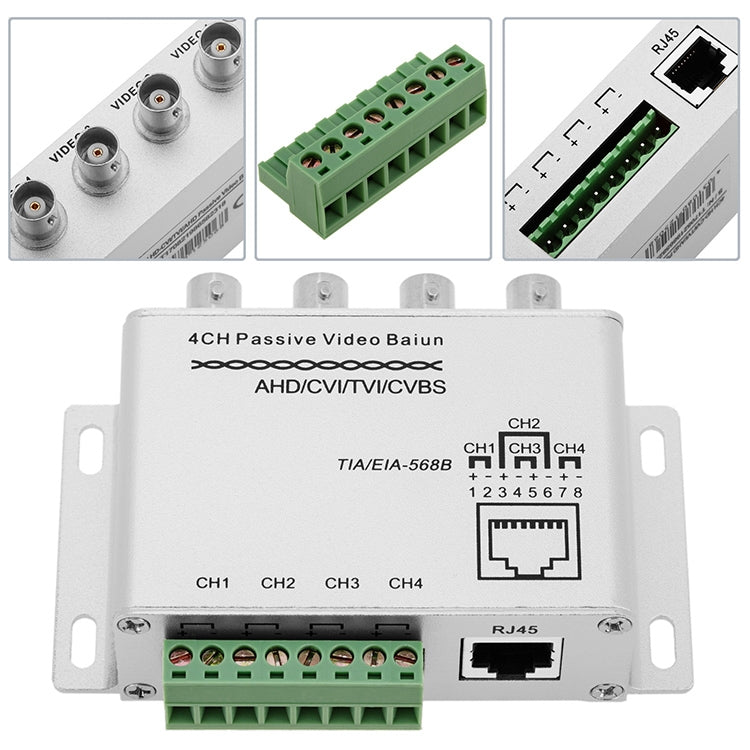

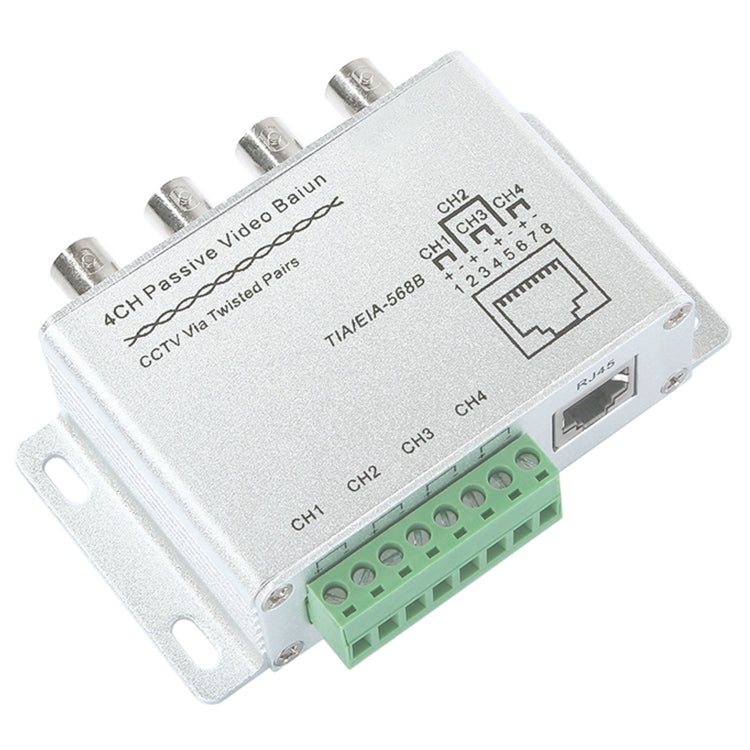

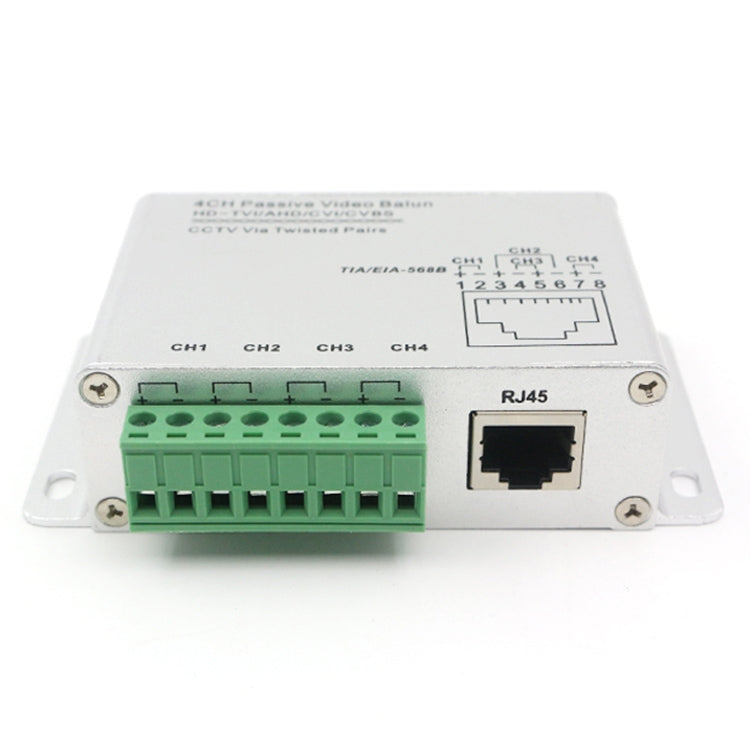

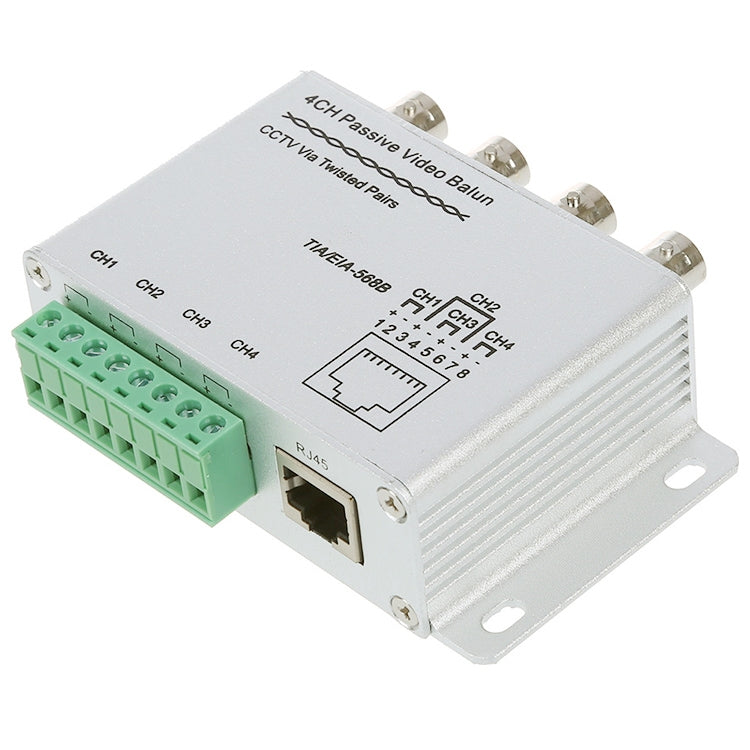

UTP 4 Channel Passive Video Balun Transceiver(Silver)
UTP 4 Channel Passive Video Balun Transceiver(Silver)
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
2. The unparalleled interference rejection and low emissions of the UTP allow video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits.
3. This 4 Channel Video Balun allows the use of a shared or existing cable plant.

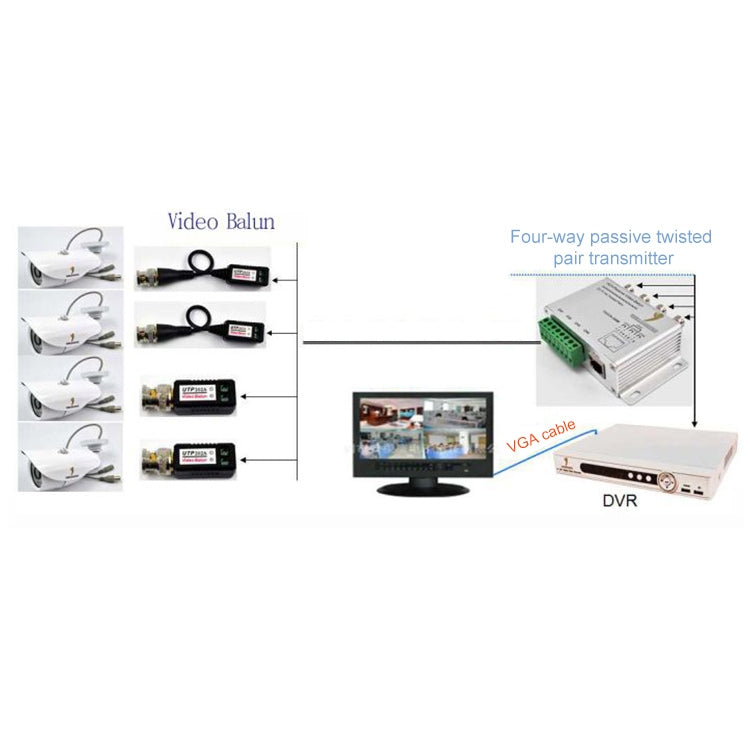

4. Video balun is to convert the video signal into the balanced signal applicable to be transmitted on common Cat-5 unshielded twisted pair wire with good transmission effect, which can be applied in the occasions such as video monitoring and video meeting and can transmit four channels of video image simultaneously on an 8-core Cat-5 twisted pair wire
5. Video Balun Transceiver can simplify the wiring project and save wire use quantity.
Specifications:
1. 4 Channel UTP Balun adopt differential signal transmission with excellent anti-jamming ability
2. Save project wire expenses. each a pair of twisted pair wire transmits one channel of video signal and one common Cat-5 unshielded twisted pair wire can simultaneously transmit four channels of video signal
3. Full motion CCTV video at distances up to 330m when used with any passive UTP video transceiver
4. Up to 1500m with any active UTP video receiver
5. No power required
6. Built-in transient suppression protection
7. Frequency response: DC - 8MHz
8. CMRR (Common Mode Rejection Ratio): 60DB
9. Impedance: BNC terminal: 75ohm, Connection terminal: 100ohm
10. Working temperature: -10 degree C - 70 degree C
11. Storage temperature: -30 degree C - 70 degree C
12. Applicable to NTSC, PAL, SECAM and CCIR systems
13. Size: 10.3 x 5.7 x 2.8cm
14. Weight: 184g
